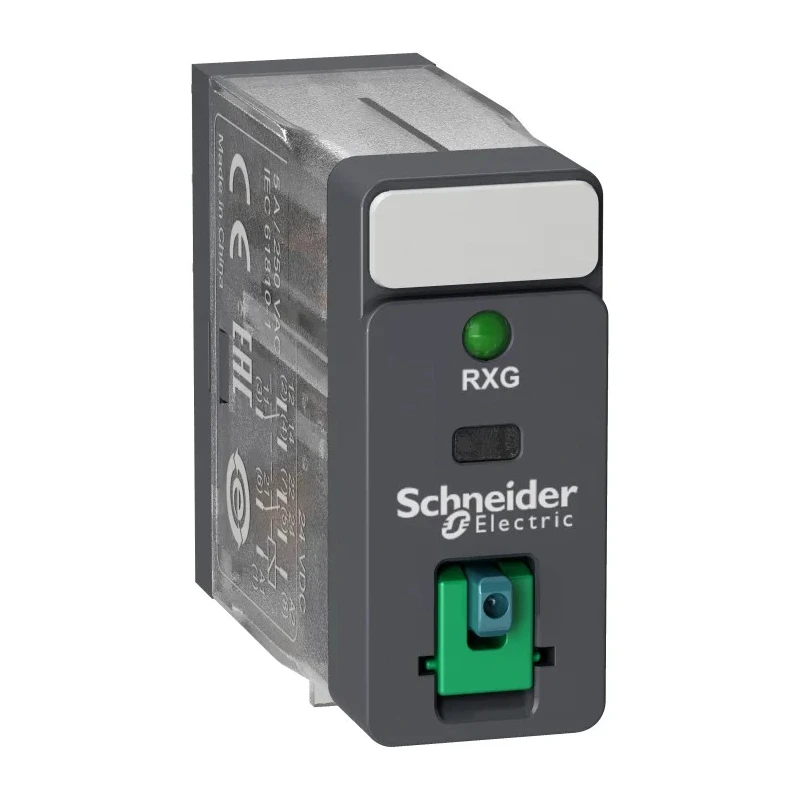

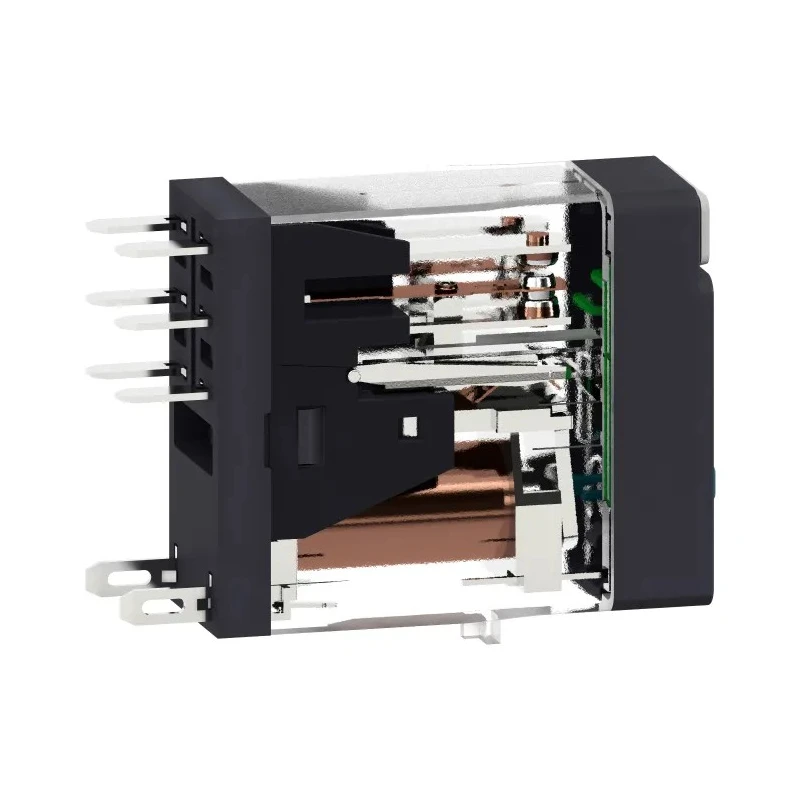

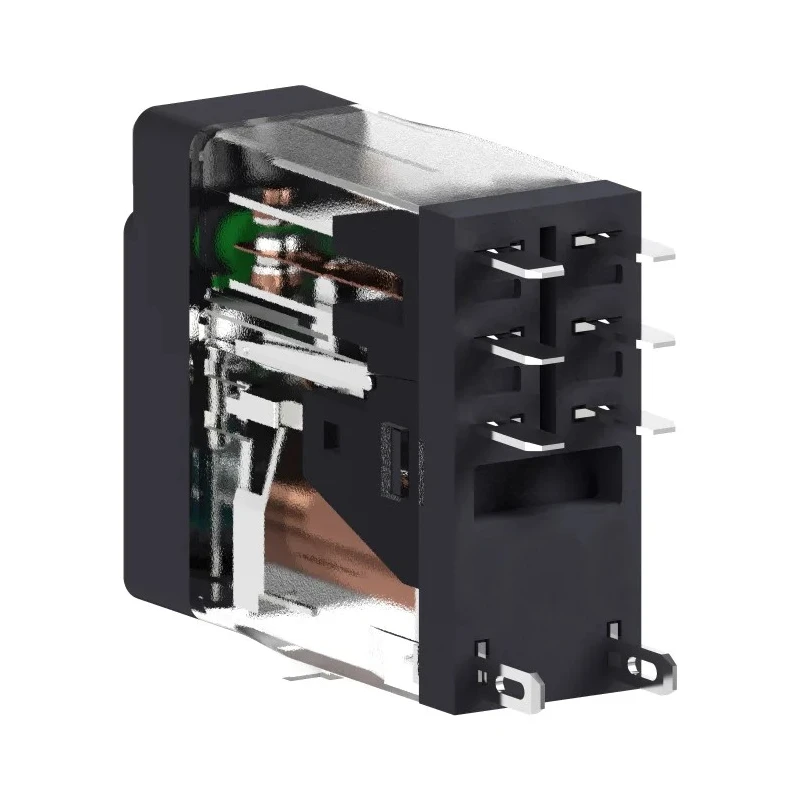

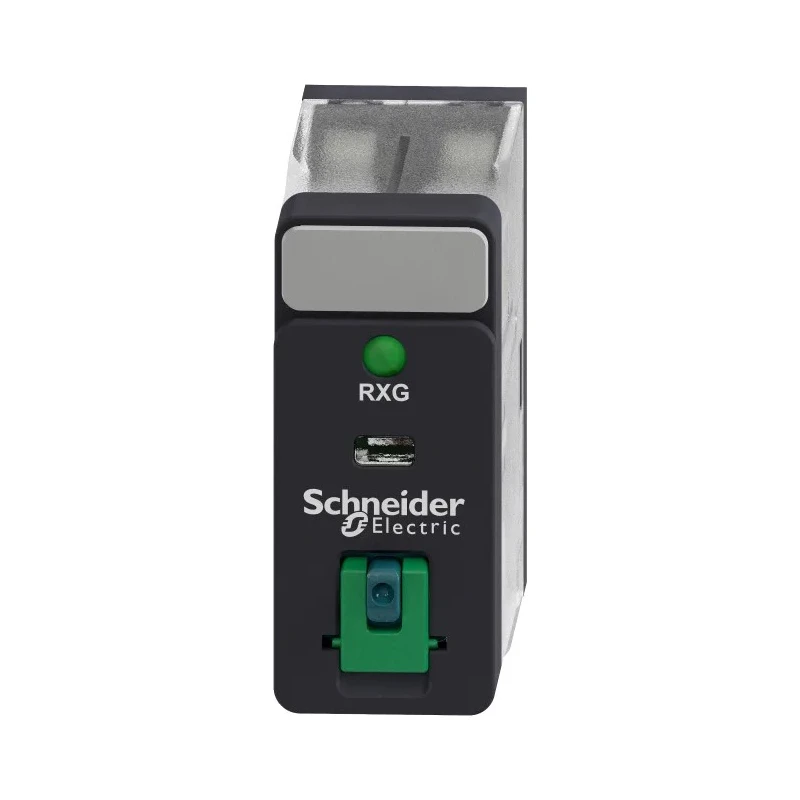

Schneider Electric Power Relay 48V dc Coil 5A Switching Current 2 CO Contact Configuration RXG22ED
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 30.6mm |
| Length | 13mm |
| Model | RXG22ED |
| Width | 37.1mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 2 CO |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 4.4kΩ |
| Coil Voltage | 48V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Designed for PLC interface applications providing reliable and easy installation.
- Equipped with a plug-in terminal type and offers a slim form factor for space savings.
- Operates within a temperature range of -40°C to 70°C ensuring durability.
- Contact material made of silver alloy ensures high conductivity and durability.
- Compatible with various protection modules including diode, diode + LED, RC circuit, or varistor + LED.
- Has a coil resistance of 4.4 kΩ and coil power consumption of 530 mW.
- Switching power rating is 1.3 kVA supporting up to 250V AC and 30V DC switching voltages.
- Features compliance with standards CSA and CE for quality assurance.
Product Description
Schneider Electric RXG22ED Power Relay is a high-quality interface relay widely used in PLC interface applications, known for its reliability, easy installation and maintenance, and slim compact design which conserves panel space.
This relay features a 48V dc coil voltage and supports a switching current of 5A with a 2 changeover (2 CO) contact configuration, making it suitable for a variety of industrial and automation control applications.
The relay incorporates plug-in terminal types which simplify wiring and replacement tasks. It works efficiently within -40°C to +70°C operating temperature range ensuring robust performance in harsh environments.
Made with durable silver alloy contacts and low contact resistance of 100 mΩ, it provides excellent conductivity and longer service life. The coil resistance is 4.4 kΩ consuming just 530 mW of power, supporting energy-efficient operation.
Switching capacity includes up to 1.3 kVA with AC voltage rating of 250V and DC voltage rating of 30V, ensuring versatility in electrical circuitry.
Schneider's Harmony Relay RXG series complies with CSA and CE standards, guaranteeing safety and reliability in various electrical and automation setups. It includes additional compatibility with several protection modules such as diode, diode+LED, RC circuits, or varistor+LED available for socket modules.
Designed for reliable PLC interface and automation applications. Wide operational temperature and high switching power capabilities. Plug-in terminal type for easy installation and maintenance. Silver alloy contacts ensure high conductivity and longevity.
Complies with CSA and CE standards for quality and safety. Energy-efficient coil with 530 mW power consumption and 4.4 kΩ resistance. Compact dimensions with 30.6mm height, 37.1mm width, and 13mm length. Better World Product designed for disassembly supporting sustainability.
This power relay caters to industrial automation, manufacturing machinery, HVAC control systems, and general electrical protection and switching tasks. Explore more Schneider Electric products and qualified Power Relays at EnvMart to support your industrial and commercial electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 5A, making it suitable for various industrial applications.
The coil voltage for this power relay is 48V DC, which is essential for its operation in PLC applications.
This unit has dimensions of 30.6mm in height, 37.1mm in width, and 13mm in length.
The relay features a 2 changeover (2 CO) contact configuration, allowing for versatile switching options.
It operates effectively within a temperature range of -40°C to 70°C, ensuring performance in harsh environments.
The coil power consumption is 530mW, contributing to its energy-efficient operation.
The contacts are made of silver alloy, which ensures high conductivity and longevity.
It supports a switching voltage of up to 250V AC and 30V DC, providing versatility in electrical circuits.
Yes, the RXG22ED complies with CSA and CE standards, ensuring safety and reliability in its applications.
This model is equipped with a plug-in terminal type, facilitating easy installation and maintenance.
The contact resistance is 100 mΩ, which contributes to its efficient performance.
It is designed for industrial automation, manufacturing machinery, HVAC control systems, and general electrical protection tasks.
