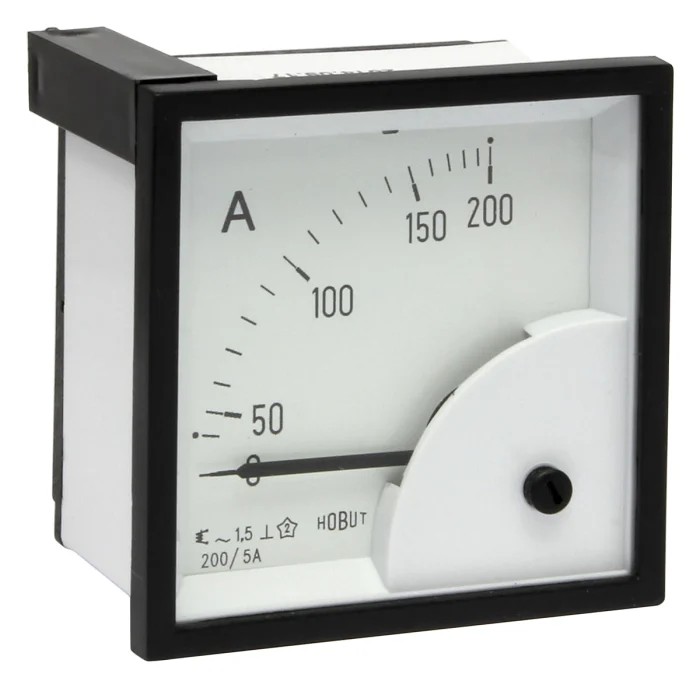

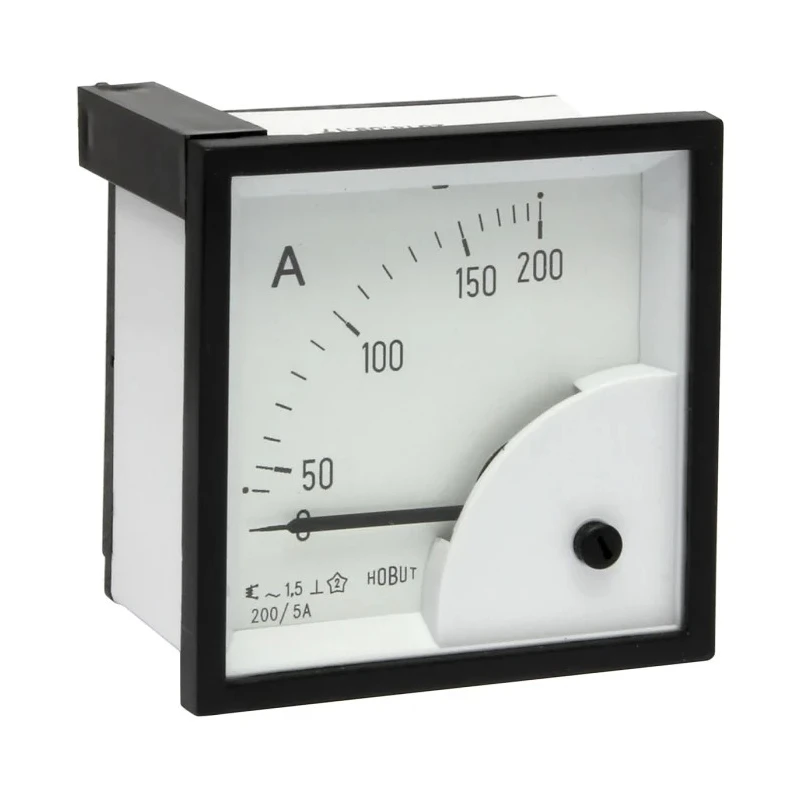

HOBUT DIN Range Analogue Panel Ammeter 100 A AC/DC D72SD5A/0-200A

HOBUT D72SD5A/0-200A DIN Range Analogue Panel Ammeter 100 A AC/DC is a CT operated moving iron ammeter designed for accurate current measurement in industrial and electrical automation environments.

This instrument features a 90° scale arc with accuracy class 1.5, and is manufactured to comply with recognized standards including BS89 and IEC51. Its robust flame retardant case meets UL94V0 safety requirements, making it suitable for diverse electrical control panels and process control systems.

The ammeter operates efficiently within a broad temperature range of -25°C to 40°C, making it adaptable to various environmental conditions. The compact depth of 43mm and panel cut out dimensions of 68x68mm and 92x92mm provide installation flexibility in control panels.

It supports measuring AC and DC current types, compatible with current transformers having 5A secondary ratings, and can withstand overload conditions of up to 10 times full scale deflection for 5 seconds, protecting the device during transient surges.

The product includes mounting brackets for secure installation and terminal covers are available separately for enhanced electrical safety. The DIN range series is ideal for use in industrial automation, electrical panels, manufacturing processes, and HVAC control systems.

Operates with AC and DC current types for versatile applications. Manufactured to robust standards BS89 and IEC51 ensuring reliability. Features a flame retardant case complying with UL94V0 for safety. Panel cut out sizes of 68x68mm and 92x92mm for flexible installation.

Designed for operating temperatures ranging from -25°C to 40°C. Compatible with current transformers having 5A secondary ratings. Overload rating supports 10 times full scale deflection for 5 seconds. Supplied with mounting brackets for secure panel fitting.
