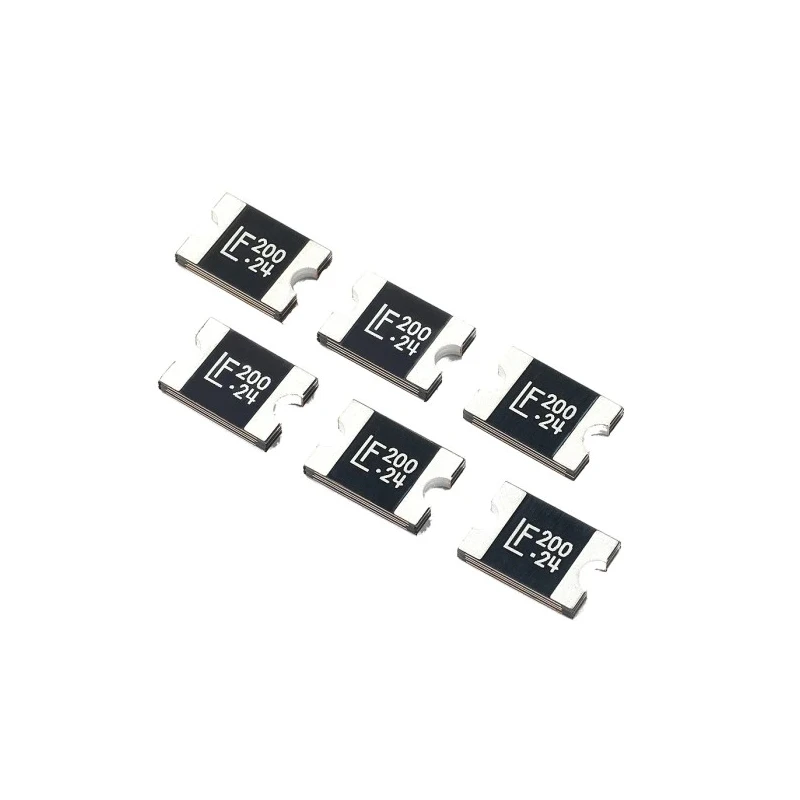

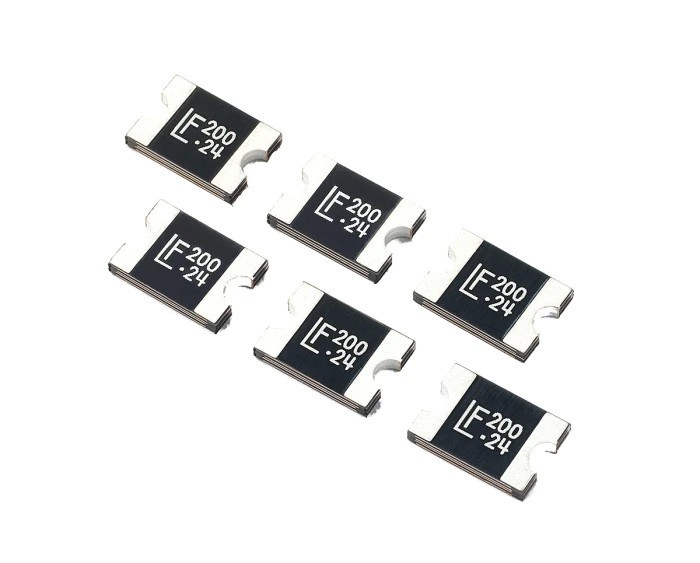

Littelfuse 2 A Resettable Fuse 15V DC Medium Voltage Protection 2920L200DR

Littelfuse 2920L200DR resettable fuse offers reliable overcurrent protection for medium voltage electrical circuits, rated at 15V DC and 2 amps hold current. The device is primarily used in low voltage telecom equipment and automotive electronic control modules, providing fast response to overcurrent conditions with a trip time of approximately 5 seconds and a trip current of 4 amps.

This surface mount fuse is engineered with solder plated copper terminals to ensure long-lasting, stable connections within compact circuit designs. It features a low minimum resistance of 0.05 ohms and a maximum resistance of 125 milliohms, maintaining efficient circuit operation. The power dissipation rating of 1.5 watts allows for dissipation of excess heat during transient events.

Measuring 7.98 mm in length, 5.44 mm in width, and 1.25 mm in height, the fuse is optimized for space-saving surface mount applications. It can operate reliably within an extended temperature range of -40°C to 85°C, suitable for a variety of industrial and commercial environments.

The product is supplied on a reel package to facilitate automated placement and soldering, enhancing production efficiency. Littelfuse 2920L200DR resettable fuses meet RoHS environmental standards, making them compliant with modern regulatory requirements.

Provides resettable overcurrent protection with a trip current of 4A. Operates with a hold current of 2A and a time to trip of 5 seconds. Compact surface mount package with 7.98mm length, 5.44mm width, and 1.25mm height.

Solder plated copper terminals for robust electrical contact. Low resistance range ensures energy efficiency and thermal stability. Wide operating temperature range from -40°C to 85°C. Power dissipation rating of 1.5W for transient heat handling.

Reel packaging supports automated manufacturing processes. Compliant with RoHS environmental directives.

This Resettable Fuse is suitable for industrial, telecom, automotive electronics, HVAC, manufacturing, and laboratory applications where overcurrent protection is critical. Its surface mount design allows for high-density circuit board layouts, improving equipment reliability and serviceability.
