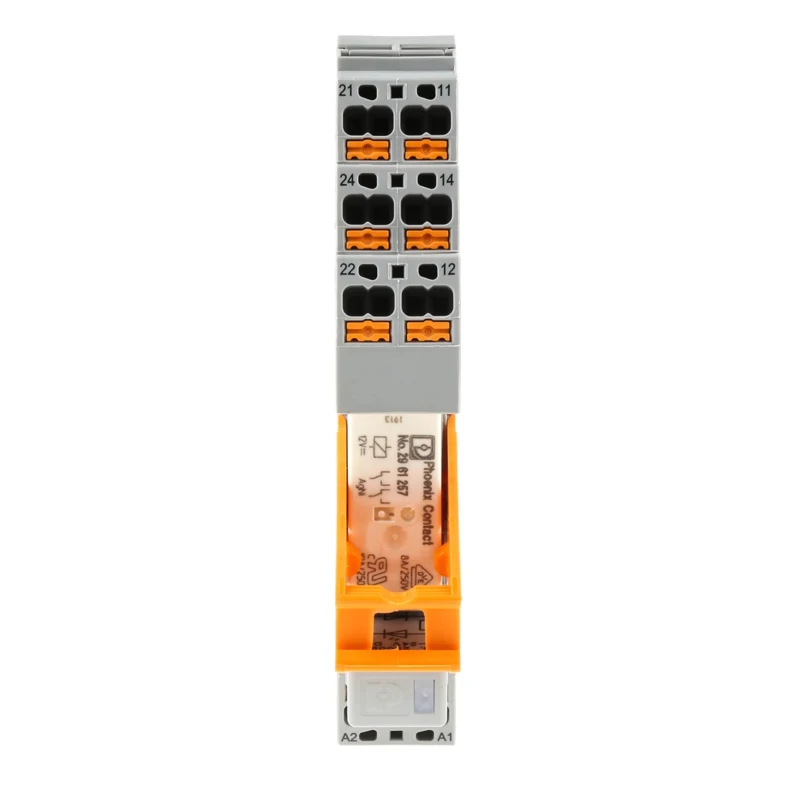

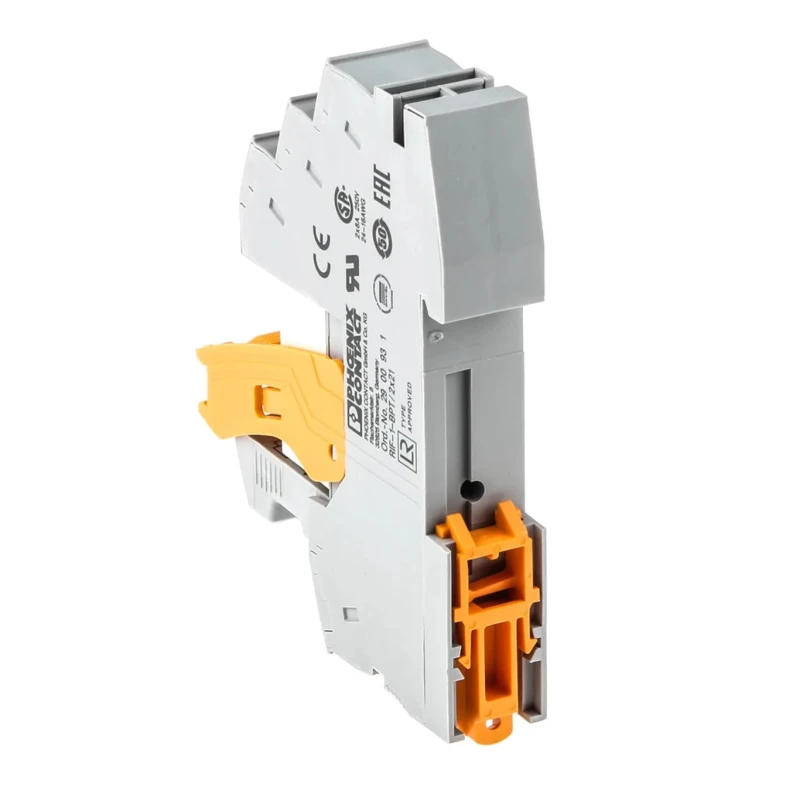

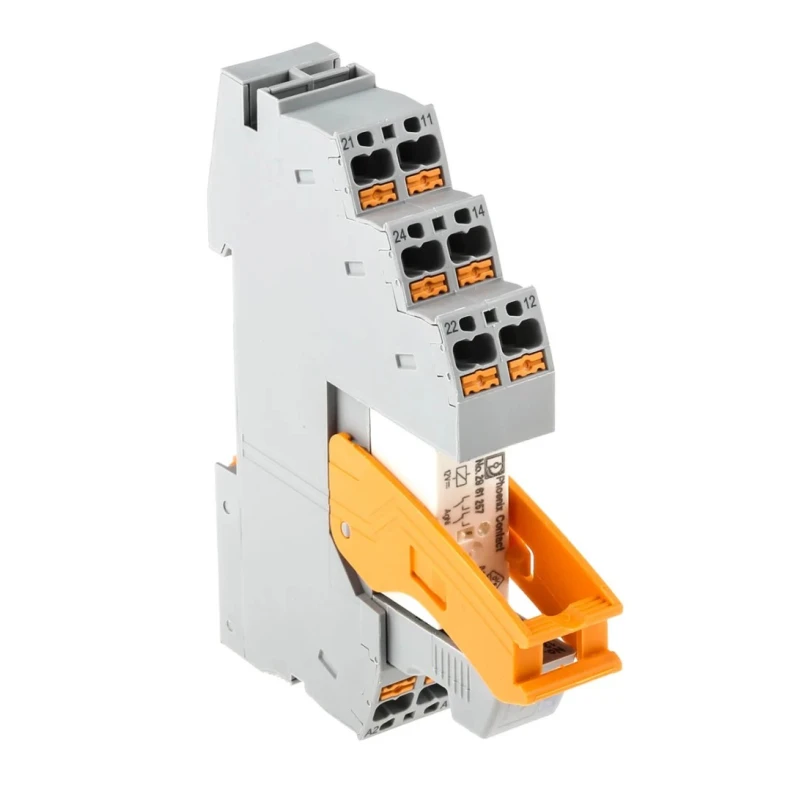

Phoenix Contact DIN Rail Interface Relay, 12V DC Coil, 10mA Switching Current, DPDT 2906223

Phoenix Contact 2906223 DIN Rail Interface Relay offers reliable signal exchange with a 12V DC coil voltage and 10mA switching current. This DPDT relay is designed for industrial automation, electrical installations, and signal conditioning, providing robust performance under harsh operating environments from -40°C to +70°C.

The module is pre-assembled for easy DIN rail mounting and includes a base with a retaining bracket featuring an ejector function for tool-free handling. Screw-terminal plug-in connections allow rapid secure wiring. Internally, a built-in freewheeling diode protects the coil against voltage spikes when de-energized. The yellow LED provides visual status indication of coil excitation.

Compact size with 75 mm length, 93 mm height, and 16 mm width suits confined control panel spaces. Silver alloy contacts ensure stable and long-lasting switching. The relay’s electrical performance includes an input coil current of 33 mA and switching currents rating up to 1 A. Typical turn-on and turn-off times are respectively 8 ms and 10 ms guaranteeing prompt signal switching.

Used extensively in electrical control systems and industrial automation to ensure electrically unambiguous signal transfer between control devices and process peripherals. The device conforms to DIN EN 50178 standards ensuring quality and durability in demanding industrial conditions.

Package includes one Phoenix Contact RIF-1-RPT-LDP-12DC/2X21 relay module with DPDT contact configuration and plug-in screw terminals ready for DIN rail installation. The relay features a double pole double throw (DPDT) contact configuration for versatile switching.

It supports a maximum input coil voltage of 12 V DC for efficient operation. The device includes screw type plug-in terminals for secure installation. Compact dimensions of 75 mm length, 93 mm height, and 16 mm width suit limited space applications.

Equipped with a freewheeling diode for coil protection from current spikes. A yellow LED indicator facilitates quick functional status verification. Robust DIN rail mounting design with ejector function ensures easy and secure installation.

Suitable for industrial, automation, electrical, and signal conditioning applications within -40°C to +70°C operating range. Constructed with silver alloy contacts to ensure durable and reliable electrical connectivity. Produces a turn-on time of 8 ms and turn-off time of 10 ms for responsive switching performance.
