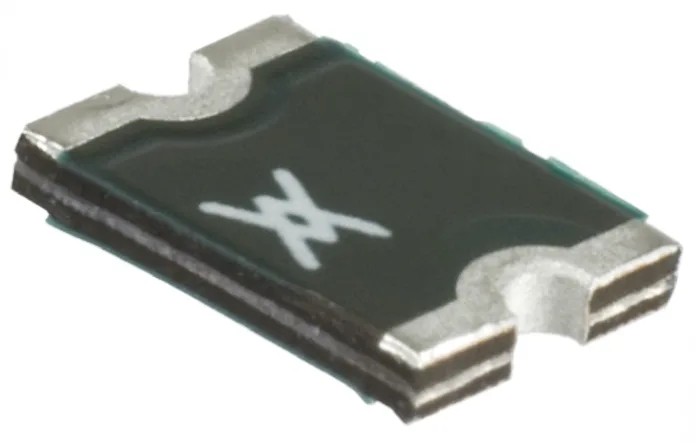

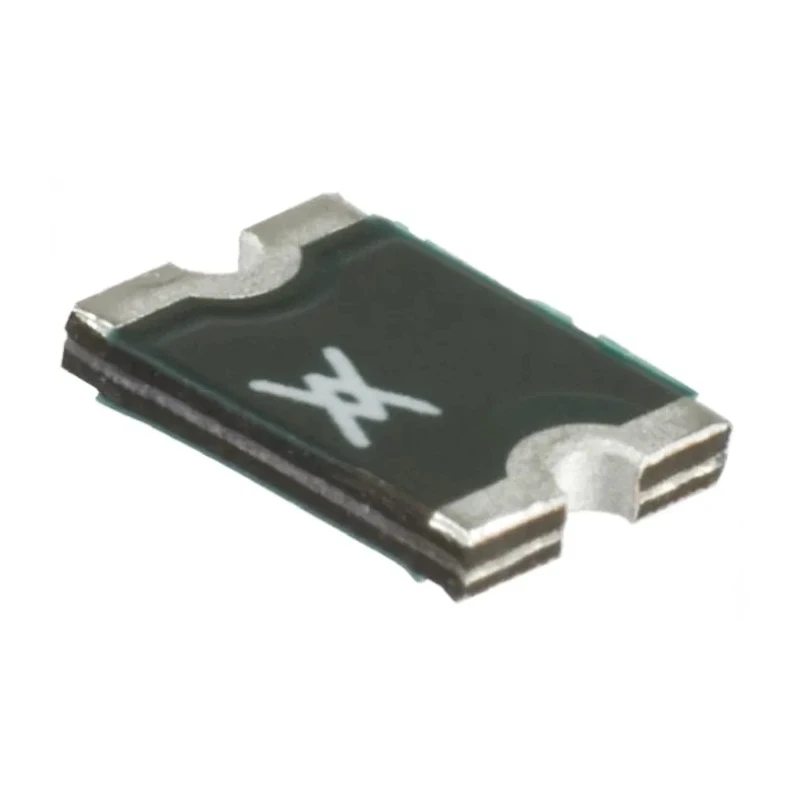

Littelfuse 24V DC Resettable Fuse Mini SMDC Series 0.75A Hold Current 40A Current Rating MINISMDC075F/24-2

Littelfuse MINISMDC075F/24-2 is a resettable fuse operating at 24V DC designed to protect electronic circuits from overcurrent conditions efficiently. It belongs to the Mini SMDC series known for compact size and reliability in industrial and consumer electronics.

This surface-mount device features a hold current of 0.75A and a current rating up to 40A with a fast trip time of 0.3 seconds to safeguard sensitive components. The device switches rapidly from a low resistance state to a high resistance state upon detecting fault currents, automatically resetting when the fault clears and power is removed.

Constructed with halogen-free materials and compliant with RoHS directives, this fuse ensures safe and environmentally responsible use. Its operating temperature range from -40°C to 85°C makes it suitable for diverse operating environments including automotive, medical, and telecommunications sectors.

The device has a compact form factor with dimensions 3.41mm length, 4.83mm height, and 1.46mm width, facilitating its integration into space-constrained circuit boards. Tin-plated terminals provide excellent solderability and electrical contact reliability.

Packaged in size 1812 reel format, the fuse supports automated assembly lines, enhancing manufacturing efficiency. The Littelfuse Mini SMDC series is widely used in computers, portable electronics, power supplies, and control instrumentation for its durable, maintenance-free circuit protection capabilities.

Effective protection against overcurrent conditions with automatic resetting capability. Fast time-to-trip of 0.3 seconds for rapid response. Compact miniSMDC surface-mount design with a small footprint for space-sensitive applications.

Halogen-free construction compliant with RoHS standards. Operating temperature range from -40°C to 85°C for broad application environments. Low resistance and power dissipation of 0.8W enhance efficiency and durability. Suitable for computer, consumer electronics, automotive, and telecommunication applications.

Maintenance-free operation with sustained performance over thousands of cycles. Thin tin-plated terminals for reliable soldering and connectivity. Package supplied on reel (package size 1812) for automated manufacturing processes.

This product is ideal for industrial, automotive, computer, telecommunications, and medical equipment circuit protection. Explore the full Littelfuse Resettable Fuse range on EnvMart for reliable electronic protection solutions.
