Microchip Operational Amplifier, 1.2 MHz Gain Bandwidth, 14-Pin TSSOP Package, 1.8V-6V Supply, 4 Channels MCP6074-E/ST

Microchip MCP6074-E/ST is a high-performance operational amplifier designed for precise signal amplification in electronics and semiconductor applications. It integrates four independent channels in a single 14-pin TSSOP package, offering a gain bandwidth product of 1.2 MHz. The device operates efficiently across a wide supply voltage range from 1.8V to 6V, making it versatile for low-voltage systems.

Equipped with ultra-low input bias and offset currents (100 pA and 1 pA respectively), this amplifier ensures minimal signal distortion, ideal for sensitive analog circuits. Its slew rate of 0.5 V/μs supports smooth and accurate signal transitions, essential in audio and data acquisition systems.

The MCP6074-E/ST is compliant with RoHS standards, ensuring environmentally safe design. It is reliable under harsh conditions with an operating temperature range of -40°C to 125°C, and it meets the automotive AEC-Q100 standard for enhanced durability and quality in automotive electronics.

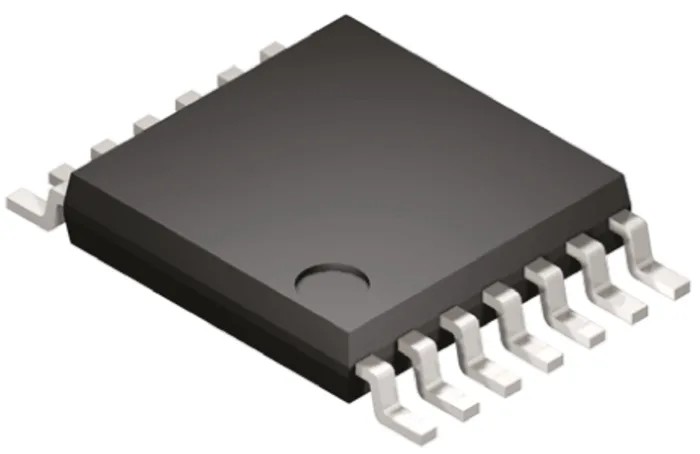

Physically, the amplifier is housed in a slim TSSOP package measuring 5.1mm in length, 4.5mm in width, and 1.05mm in height, suitable for compact PCB designs. The output current capacity of up to 28 mA allows effective drive of downstream circuits and components.

Offers a gain bandwidth product of 1.2 MHz for precise amplification. Includes 4 independent amplifier channels within a single package. Operates at a minimum supply voltage of 1.8V and a maximum of 6V. Features a low input bias current of 100 pA and an input offset current of 1 pA.

Slew rate of 0.5 V/μs enables smooth signal transitions. Built to comply with RoHS environmental standards. Designed to operate in temperatures ranging from -40°C to 125°C. Has a compact form factor: 14-pin TSSOP with dimensions 5.1mm length, 4.5mm width, and 1.05mm height.

Output current capability up to 28mA suitable for varied signal driving needs. Meets automotive grade AEC-Q100 reliability standard.

This Operational Amplifier is suitable for industrial, automotive, commercial electronics, instrumentation, and consumer product applications that demand high accuracy and reliability. Its multiple channels and low power operation make it ideal for modern compact circuit designs requiring precise analog amplification.
