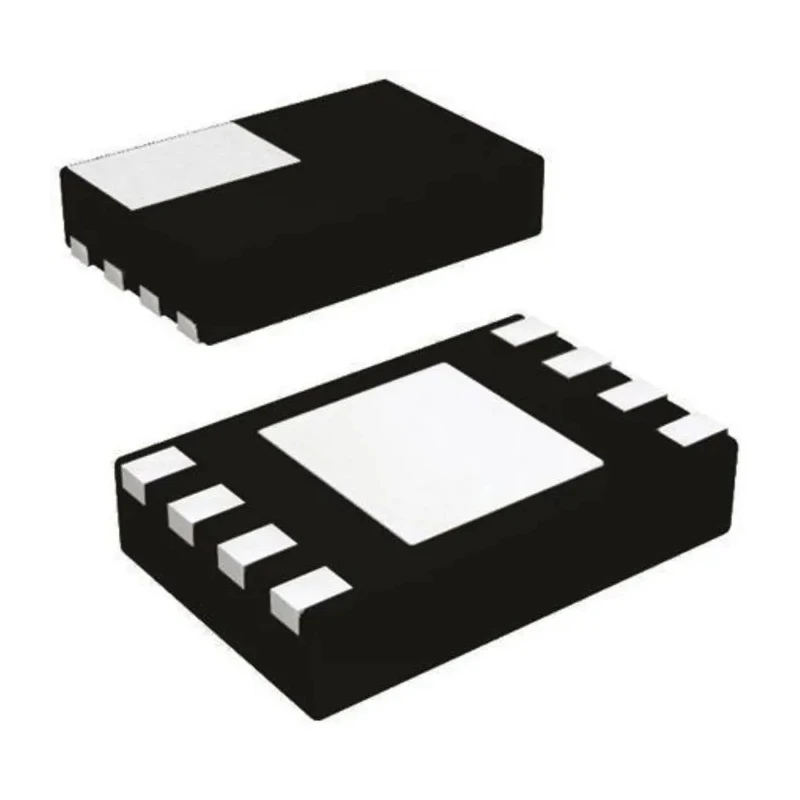

Microchip Operational Amplifier 1.2 MHz 8-Pin 6V TDFN MCP6072T-E/MNY
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 0.75mm |
| Length | 2mm |
| Model | MCP6072T-E/MNY |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6072 |
| Output Current | 28mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TDFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 100 pA |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 1 pA |
Key Features
- Dual-channel operational amplifier designed for surface mount applications.
- Gain bandwidth product of 1.2 MHz suitable for precision amplification.
- Wide supply voltage range from 1.8V to 6V for flexible use.
- Low input bias current of 100 pA ensuring high accuracy.
- Input offset voltage of 150 μV supports sensitive signal amplification.
- Operating temperature range from -40°C to 125°C for rugged environments.
- Compact package dimensions with 2 mm length, 3 mm width, and 0.75 mm height.
- Output current capability up to 28 mA for driving loads.
Product Description
Microchip MCP6072T-E/MNY is a dual operational amplifier designed for high precision and efficiency in electronic circuits. Featuring a gain bandwidth product of 1.2 MHz, this component operates from a minimum supply voltage of 1.8V up to a maximum of 6V, making it suitable for low power and battery-operated devices.
The device is housed in a compact 8-pin Thin Dual Flat No-lead (TDFN) package with dimensions of 2 mm length, 3 mm width, and 0.75 mm height, ideal for surface mount technology in modern electronic assemblies.
Low input bias currents (100 pA) and offset voltage (150 μV) ensure minimal signal distortion, critical for applications requiring high accuracy such as sensor signal conditioning and instrumentation.
With an output current rating of 28 mA, this amplifier can effectively drive downstream circuitry. It supports a broad operating temperature range from -40°C to 125°C, making it qualified for automotive and industrial use, as certified by the AEC-Q100 automotive standard and RoHS compliance.
The MCP6072 series offers reliable performance for applications in consumer electronics, industrial control systems, automotive electronics, and communication devices. Dual-channel operational amplifier for surface mount applications.
Gain bandwidth of 1.2 MHz and low input bias current. Wide voltage supply range (1.8V to 6V) with robust output current. Compliant with RoHS and automotive AEC-Q100 standards. Compact 8-pin TDFN package suitable for space-constrained designs.
Manufactured in Thailand, the MCP6072T-E/MNY from Microchip provides consistent high-quality performance and durability for demanding industrial and commercial environments. Explore more electronic component options in the Operational Amplifier category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.2 MHz, suitable for precision amplification in electronic circuits.
The MCP6072T-E/MNY operates within a supply voltage range of 1.8V to 6V, allowing for flexible use in various applications.
This operational amplifier can provide an output current of up to 28 mA, which is effective for driving downstream circuitry.
The dimensions of this model are 2 mm in length, 3 mm in width, and 0.75 mm in height, making it compact for surface mount applications.
The input bias current is 100 pA, which helps ensure high accuracy in signal amplification.
This operational amplifier operates within a temperature range of -40°C to 125°C, suitable for rugged environments.
It is housed in an 8-pin Thin Dual Flat No-lead (TDFN) package, ideal for surface mount technology.
The MCP6072T-E/MNY complies with the AEC-Q100 automotive standard, indicating its suitability for automotive applications.
The input offset voltage is 150 μV, which supports sensitive signal amplification.
This operational amplifier is RoHS compliant, ensuring it meets environmental safety standards.
The MCP6072T-E/MNY features two channels, making it a dual operational amplifier.
The slew rate for this operational amplifier is 0.5 V/μs, which is important for determining how quickly the output can respond to changes in input signal.
