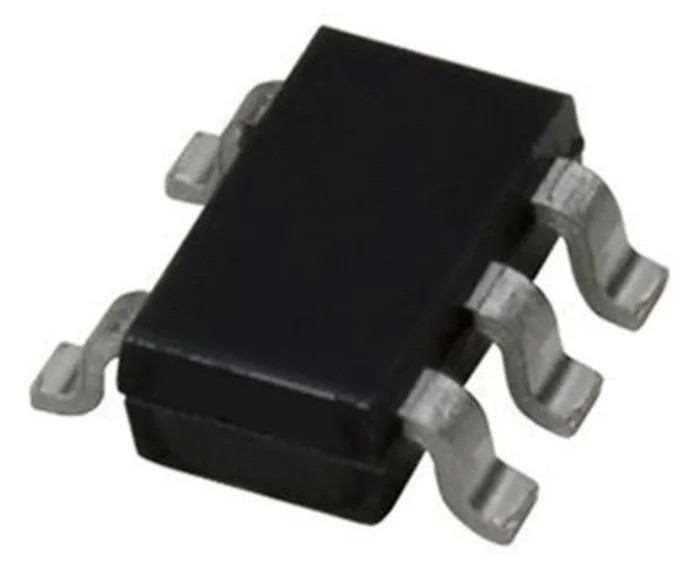

Microchip Operational Amplifier 1 MHz, 5-Pin SC-70 Surface Mount 1.8-6V MCP6001T-E/LT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 2.25mm |
| Model | MCP6001T-E/LT |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | MCP6001 |
| Output Current | 23mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 19 pA |
| Vos - Input Offset Voltage | 4.5 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 1 pA |
Key Features
- Operates at a maximum frequency of 1 MHz ensuring high-speed signal amplification.
- Supports a supply voltage range from 1.8 V minimum up to 6 V maximum.
- Features a 5-pin SC-70 surface mount package ideal for space-constrained applications.
- Input bias current is extremely low at 19 pA for minimal signal distortion.
- Input offset voltage is 4.5 mV to ensure signal accuracy.
- Operates reliably within a temperature range of -40°C to 125°C suitable for industrial environments.
- Output current capability is up to 23 mA allowing for driving moderate loads.
- Slew rate of 0.6 V/µs supports fast signal transitions without distortion.
Product Description
Microchip MCP6001T-E/LT is a high-performance operational amplifier designed for low voltage, high precision applications. It delivers a gain bandwidth product of 1 MHz and comes in a compact 5-pin SC-70 surface mount package that suits dense PCB layouts and portable electronic designs.
Supporting a voltage range from 1.8 V to 6 V, this amplifier is optimized for battery-operated devices and low power electronics. Its ultra-low input bias current of 19 pA and minimal input offset voltage of 4.5 mV make it ideal for precision amplification of low-level signals.
With an output current capability of 23 mA and a slew rate of 0.6 V/µs, the MCP6001T-E/LT is well-suited for medium-speed analog signal processing in industrial, instrumentation, automotive, and consumer electronics sectors. The wide operating temperature range from -40°C to 125°C ensures reliable operation across harsh environmental conditions.
The device’s compact footprint measures only 2.25 mm in length, 1.35 mm in width, and 1 mm in height, making it an excellent choice for space-critical applications. It is fully compliant with RoHS directives, supporting environmentally friendly manufacturing processes.
Key Features:. 1 MHz gain bandwidth product for high-speed amplification. Surface mount SC-70 package for compact design. Wide supply voltage range of 1.8 V to 6 V. Ultra-low input bias current of 19 pA. Low input offset voltage of 4.5 mV.
Operating temperature from -40°C to 125°C. Output current up to 23 mA for versatile load driving. Slew rate of 0.6 V/µs for minimal signal distortion. Small footprint ideal for dense PCB layouts. RoHS compliant for environmental sustainability.
This operational amplifier is widely used in electronics, instrumentation, automotive electronics, telecommunications, and industrial control systems, offering reliable precision amplification in demanding environments and compact spaces. EnvMart offers this Microchip MCP6001T-E/LT to engineers and designers looking for a robust, low-voltage Operational Amplifier solution.
Explore more electronics components and amplifiers from trusted brands at EnvMart for your next project or product development.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6001T-E/LT features a gain bandwidth product of 1 MHz, allowing for high-speed signal amplification.
It supports a supply voltage range from 1.8 V to 6 V, making it suitable for various low voltage applications.
The output current capability of the MCP6001T-E/LT is up to 23 mA, enabling it to drive moderate loads effectively.
This operational amplifier has a compact footprint measuring 2.25 mm in length, 1.35 mm in width, and 1 mm in height.
The input bias current for this model is extremely low at 19 pA, which helps minimize signal distortion in applications.
It operates reliably within a temperature range of -40°C to 125°C, suitable for industrial environments.
The slew rate of this operational amplifier is 0.6 V/µs, supporting fast signal transitions without distortion.
The input offset voltage is specified at 4.5 mV, ensuring signal accuracy during amplification.
It comes in a 5-pin SC-70 surface mount package, which is ideal for space-constrained applications.
Yes, this operational amplifier is fully compliant with RoHS directives, supporting environmentally friendly manufacturing processes.
The MCP6001T-E/LT features a single channel configuration, making it suitable for various applications that require precision amplification.
This model belongs to the MCP6001 series, which is known for low voltage, high precision operational amplifiers.
