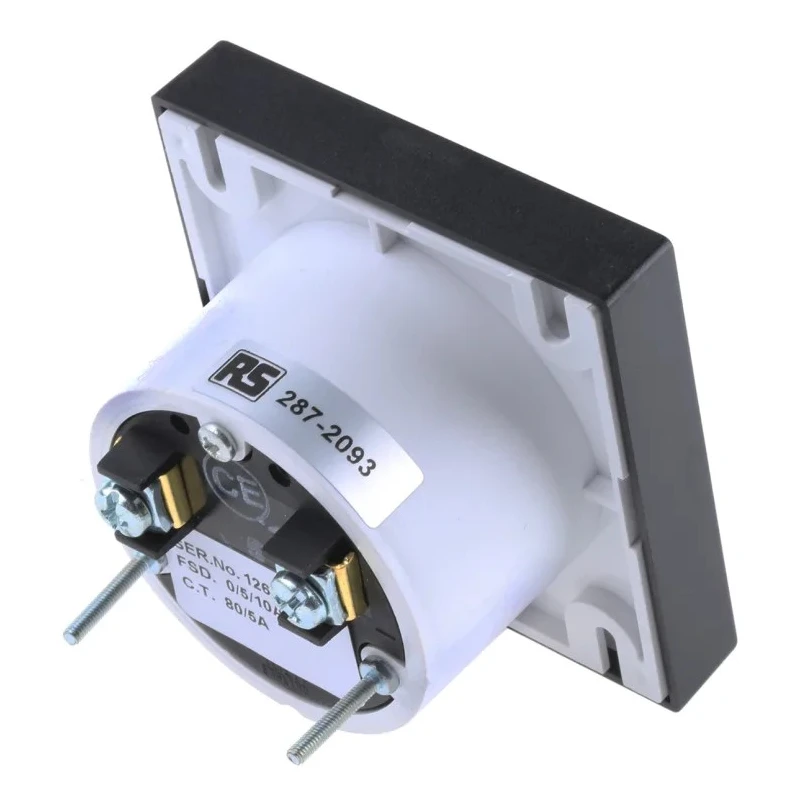

HOBUT Analogue Panel Ammeter 160 A AC Moving Iron, 72 mm x 72 mm PD72MIS5A2/2-001 0/80/160A

HOBUT PD72MIS5A2/2-001 0/80/160A Analogue Panel Ammeter is a precision instrument designed for measuring alternating current up to 160 A AC with a moving iron element. It features a standard 72 mm by 72 mm cutout size, making it compatible with common DIN-sized panel installations widely used in electrical and automation control gear applications.

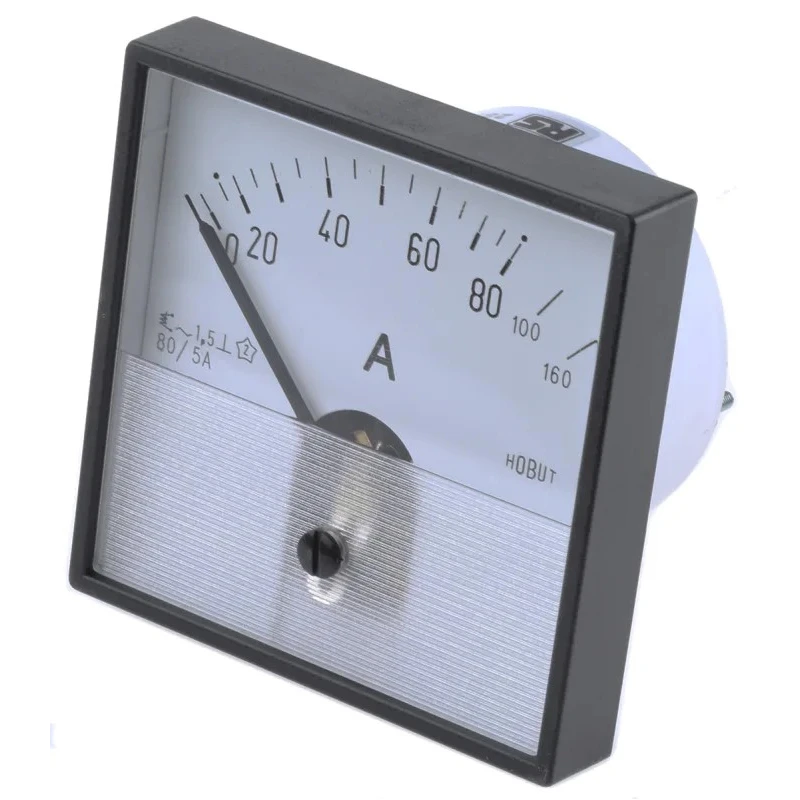

The ammeter offers an accuracy class of 1.5 according to BS 89 IEC 51, ensuring reliable metering in industrial and commercial environments. Its horizontal integral 90° scale provides clear and easy-to-read measurements. The instrument is rated for operation within a temperature range of -25°C to 40°C, suitable for various worksite and panel conditions.

The device's enclosure is constructed with flame retardant material complying with UL 94 V-0 standards and has front panel protection rated as IP52, protecting it against limited dust ingress and dripping water, thus enhancing durability.

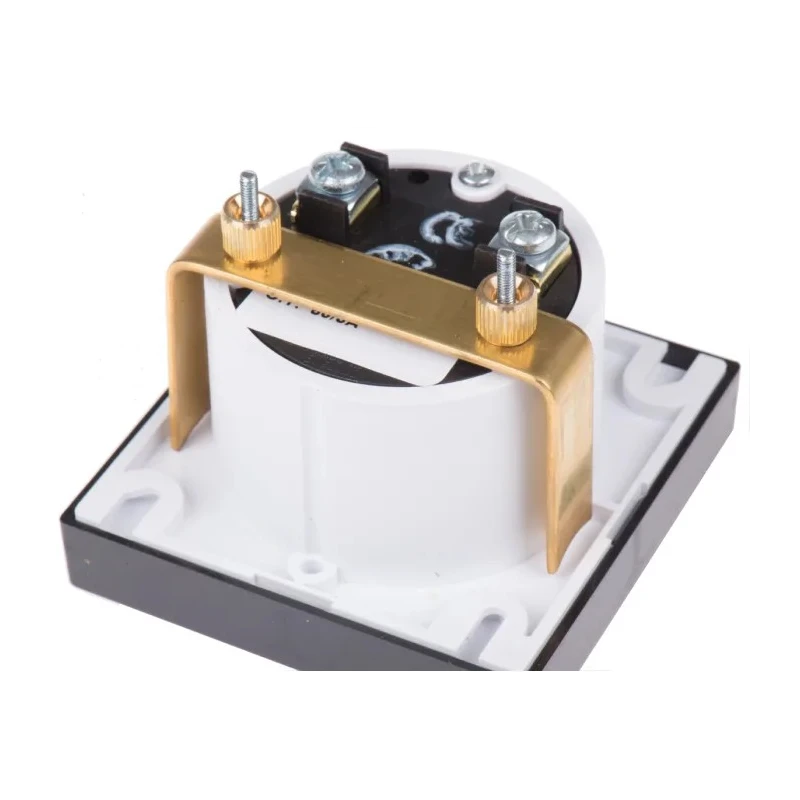

Installation is facilitated by a single-hole U clamp mounting system with an anti-rotation pin or an alternative 4-point M3 fixing method, providing secure and flexible panel attachment. The ammeter can be directly connected up to 40 A for standard applications, with an overload capacity of twice the current rating clearly marked on the scale for safe operation.

Designed for AC current measurement using moving iron technology. Standard 72 mm x 72 mm panel cutout size for universal compatibility. Operating temperature range from -25°C to 40°C to suit diverse environments. Flame retardant casing compliant with UL 94 V-0 for safety.

IP52 front panel protection rating against dust and dripping water. Accurate class 1.5 measurement aligned with BS 89 IEC 51. Overload rating twice the nominal current for robust performance. Mounting options include single-hole U clamp and 4-point M3 fixation.

Compact depth of 30.5 mm facilitates panel integration.

This Analogue Panel Ammeter is ideal for industrial, electrical, and process control applications requiring reliable AC current measurement. Its robust build and precise specifications make it a preferred choice for panel builders, electrical technicians, and industrial automation professionals.
