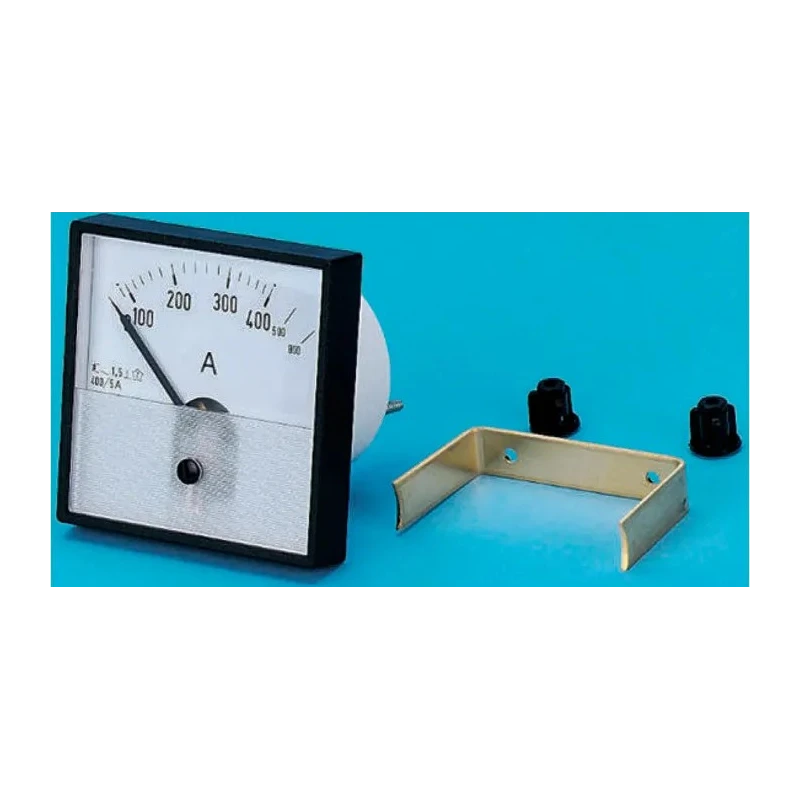

HOBUT Analogue Panel Ammeter 800 A AC Moving Iron 72 mm x 72 mm PD72MIS5A2/2-001 0/400/800A

HOBUT PD72MIS5A2/2-001 0/400/800A analogue panel ammeter is designed for industrial and automation applications requiring reliable AC current measurement. This device utilizes a moving iron element, known for its durability and stable response, housed within a compact 72 mm x 72 mm DIN-sized panel meter body.

The ammeter is engineered with a horizontal 90° scale that enhances readability and is accurate to class 1.5 according to BS 89 IEC 51 standards. It supports a maximum current measurement of 800 A AC, making it suitable for heavy-duty electrical panels.

It features a flame retardant case certified to UL 94 V-0 and offers an IP52 protection class on the front panel, ensuring resistance against dust and water splashes. The meter is built to operate efficiently within temperature ranges from -25°C to 40°C.

Installation is straightforward using either a single hole with a U clamp and anti-rotation pin or a four-point M3 fixation, simplifying integration into panel assemblies. The ammeter's overload capacity is twice the rated current, providing enhanced safety and longevity.

This model is manufactured in the United Kingdom, ensuring high quality and compliance for demanding industrial environments. Typical use cases include industrial automation, electrical control panels, process control systems, and power distribution monitoring.

Moving iron element provides robust AC current measurement. Compact 72 mm x 72 mm DIN panel size facilitates retrofitting and new installations. Horizontal 90° scale delivers clear, accurate readings. Flame retardant case protects against fire hazards in electrical applications.

IP52 front panel rating ensures protection against dust and water ingress. Wide operating temperature range supports diverse industrial environments. Mounting options include single hole U clamp and four-point M3 fixings with anti-rotation pin.

Compliant with UL 94 V-0, BS 89 IEC 51 standards for safety and performance. Explore the range of HOBUT Analogue Panel Ammeters and other panel meters suitable for industrial automation and electrical control systems on EnvMart.
