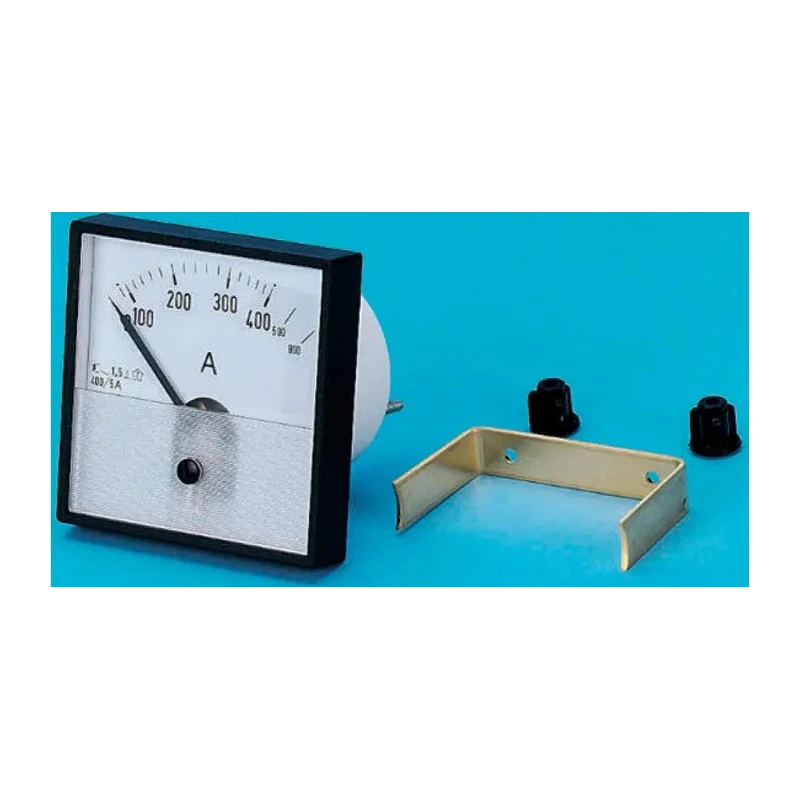

HOBUT Analogue Panel Ammeter 600 A AC Moving Iron, 72 mm x 72 mm, PD72MIS5A2/2-001 0/300/600A

HOBUT PD72MIS5A2/2-001 0/300/600A Analogue Panel Ammeter is a robust electrical instrument designed for precise AC current monitoring in industrial and automation applications. Featuring a moving iron measuring element, it offers durability and reliable performance in panel installations with a standard cutout size of 72 mm by 72 mm.

This ammeter supports a maximum current measurement of 600 A AC with an accuracy class of 1.5 according to BS 89 IEC 51, making it suitable for process control, electrical panels, and industrial machinery monitoring. The horizontal scale orientation provides clear, easy-to-read analog indication for real-time current measurement.

The device is constructed with a flame retardant case certified to UL 94 V-0 standards, ensuring enhanced safety under operating conditions up to 40°C. It carries an IP52 protection rating on the front panel, providing dust protection and resistance against vertically falling water drops.

Installation is user-friendly with mounting by a single hole using a U clamp and an anti-rotation pin supplied for stability within panel cutouts. The meter is calibrated for 600 A with overload protection up to twice the rated current as indicated within the scale range.

This ammeter is ideal for a wide range of industrial, electrical control, HVAC, manufacturing, and laboratory automation applications requiring reliable current monitoring with a proven moving iron mechanism.

AC current measurement with moving iron element. Standard 72 mm x 72 mm panel cutout size. Flame retardant casing to UL 94 V-0 safety standard. Accurate to class 1.5 as per BS 89 IEC 51. Operating temperature from -25°C to 40°C.

IP52 front panel protection rating. Mounting via single hole with 'U' clamp and anti-rotation pin. Maximum current rating 600 A AC with overload capability. Manufactured in United Kingdom for international quality assurance.
