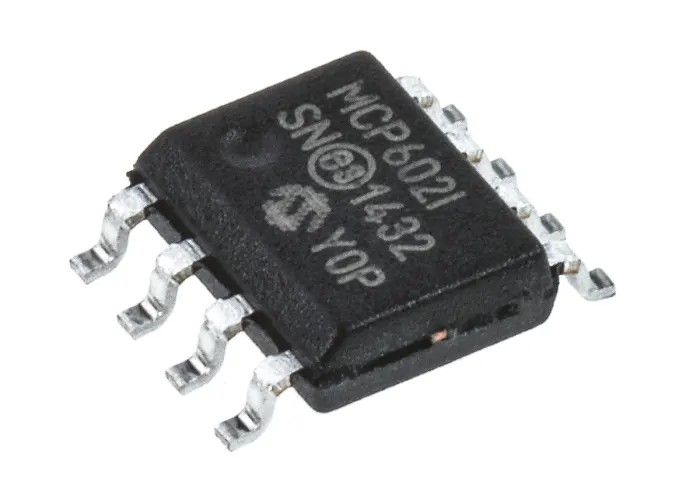

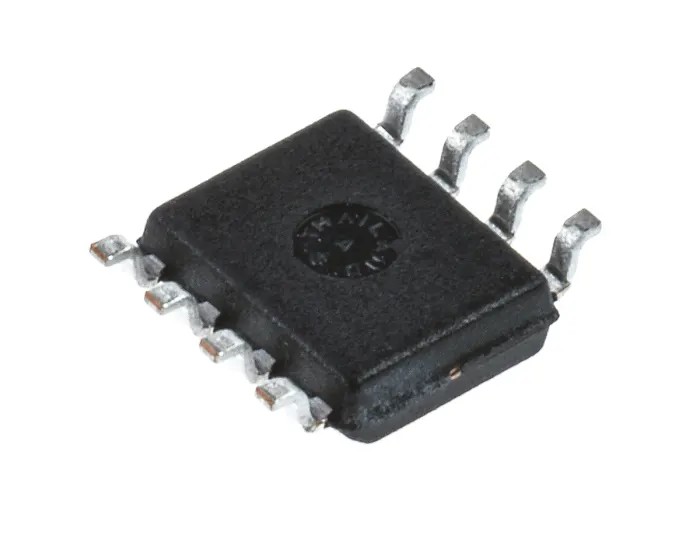

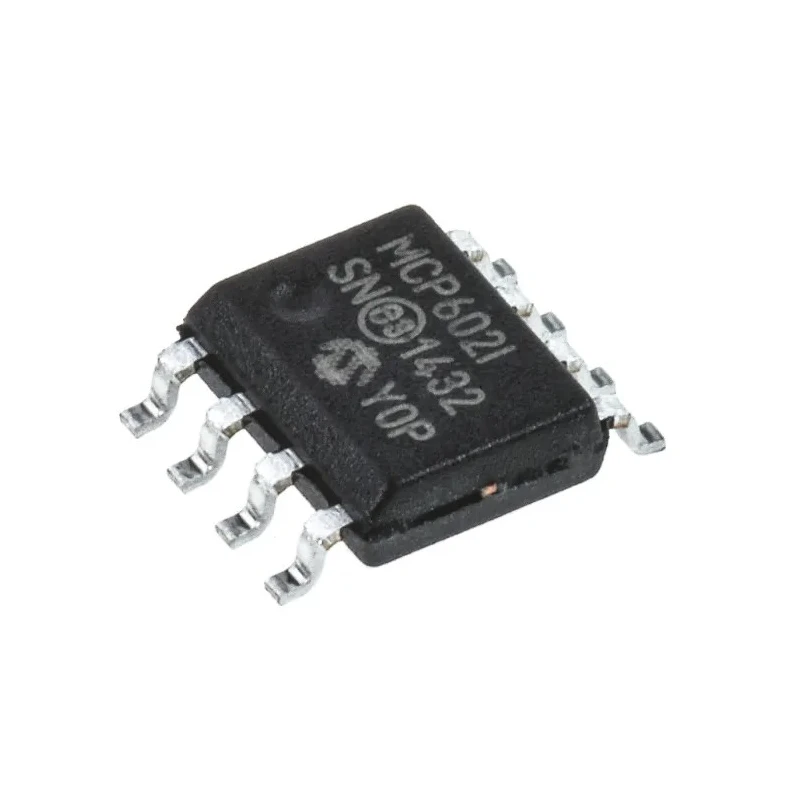

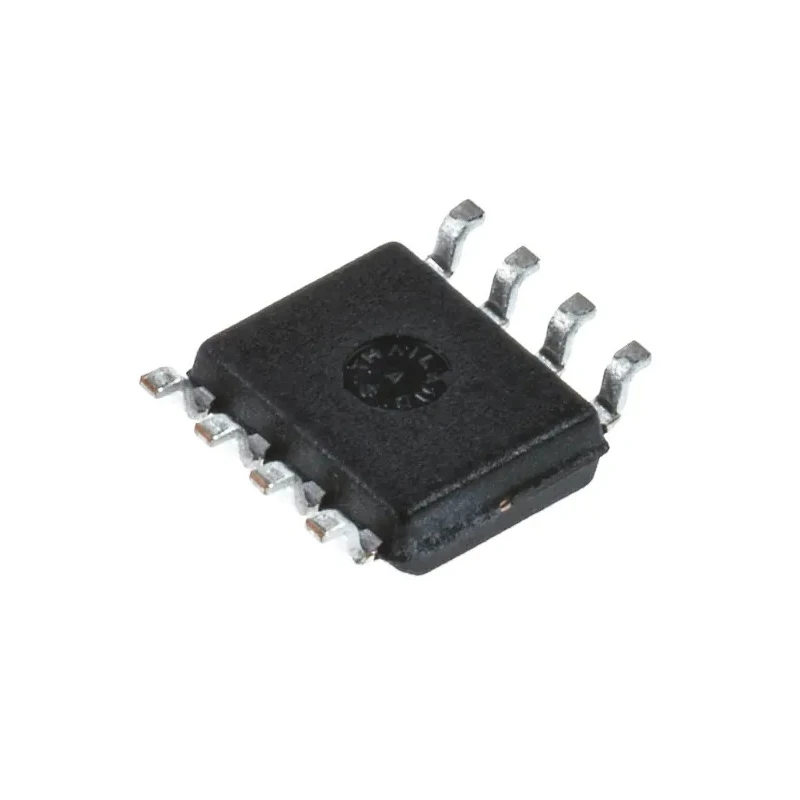

Microchip Operational Amplifier 2.8 MHz, 8-Pin SOIC, 5V, Dual Channel MCP602-I/SN

Microchip MCP602-I/SN is a precision dual operational amplifier designed for surface mount applications in an 8-pin SOIC package. Featuring a gain bandwidth product (GBP) of 2.8 MHz, it offers excellent signal amplification in compact form factor suitable for a wide range of industrial, laboratory, electronic component manufacturing, and consumer electronics circuits.

This device operates with a supply voltage ranging from 3V to 5V and delivers an output current up to 30 mA, making it ideal for driving various loads with reliable performance. Its low input bias current of 1 pA and low input offset voltage of 2 mV enable high-accuracy signal processing and low noise operation.

The compact dimensions - 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height - permit high-density PCB layouts while maintaining easy surface mounting thanks to the SOIC package type. With an operating temperature range from -40°C to 85°C, the MCP602-I/SN is suitable for industrial and commercial environments requiring temperature resilience.

Slew rate of 2.3 V/μs allows the amplifier to respond quickly to rapidly changing input signals, making it suitable for medium frequency applications. The product complies with RoHS standards, ensuring that it meets environmental regulations for hazardous substances.

Typical applications include signal conditioning, active filtering, sensor interfacing, and amplification in instrumentation, control systems, electronic circuits, and embedded systems. The dual-channel feature enables flexible circuit design with two amplifiers in a single device, reducing component count.

The amplifier supports a minimum supply voltage of 3V and a maximum of 5V. It features low input bias and offset currents of 1 pA and 1 pA respectively. The input offset voltage is 2 mV ensuring precision performance. The output current can reach up to 30 mA suitable for various load conditions.

Compact dimensions with length 4.9 mm, width 3.9 mm, and height 1.25 mm allow PCB space optimization. The slew rate is 2.3 V/μs providing fast response to input changes. Operating temperature ranges from -40°C to 85°C for industrial applications.

RoHS compliant ensuring environmental safety and regulatory adherence. Dual operational amplifier in SOIC surface mount package for easy PCB integration. Explore more Operational Amplifiers and semiconductor components for your electronic designs and manufacturing needs on EnvMart.
