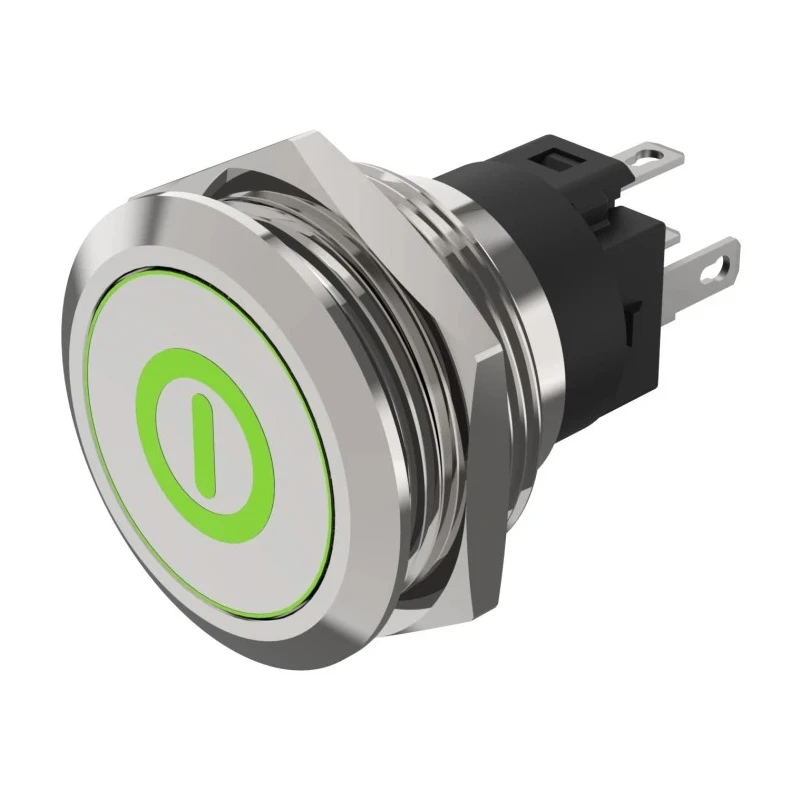

EAO Illuminated Push Button Switch, Momentary, Panel Mount, SPDT, Green LED, 22.3 mm Cutout, IP65/IP67 82-6151.1A34.B001



Category Push Button Switches Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Model	82-6151.1A34.B001
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Push-in
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	On-Off

Key Features

The actuator colour is silver with a push-in style.
The switch is illuminated with a green LED indicator.
Panel cutout size is 22.3 mm suitable for flush mounting.
Offers IP65 and IP67 front protection making it vandal and water resistant.
Operates at 240 V dc and ac voltages with a current rating of 3A.
Designed for operating temperatures ranging from -30°C to 70°C.
Provides excellent tactile feedback and long service life exceeding one million cycles.
Manufactured from stainless steel 304, ensuring robust construction.

Product Description

EAO model 82-6151.1A34.B001 is an illuminated push button switch designed for momentary operation with a panel mount form factor. It features a silver-coloured push-in actuator with a green LED illumination, suitable for a 22.3 mm panel cutout. The switch uses a SPDT contact configuration capable of handling up to 240 V dc and ac voltages with a 3A contact current rating.

This push button switch provides robust front protection rated at IP65 and IP67, making it highly resistant to dust, water ingress, and vandalism with IK10 impact resistance. It operates reliably across a wide temperature range of -30°C to 70°C and is constructed from durable stainless steel 304 ensuring longevity and corrosion resistance.

The switch complies with multiple international safety approvals including CB, CCC, cUL, and UL, ensuring quality and reliability for demanding industrial applications. It offers excellent tactile feedback and a long operational life exceeding one million cycles.

Typical applications include use in industrial machinery, factory equipment, building management and security systems, ticketing and vending machines, elevators, audio-video equipment, medical and food industry settings. The design and specifications make it ideal for use in exposed public areas as well as harsh environmental conditions.

The actuator colour is silver with push-in actuator style. Illumination is provided by a green LED indicator. Panel cutout size is 22.3 mm for flush mounting. Front face protection is rated IP65 and IP67. Contact configuration is SPDT suitable for 240 V dc and ac operation.

Operating temperature range is from -30°C up to 70°C. Switch contact current rating is 3 Amps. Constructed with stainless steel 304 for longevity and durability. Complies with safety standards: CB, CCC, cUL, UL. Provides over one million cycles of operational life.
