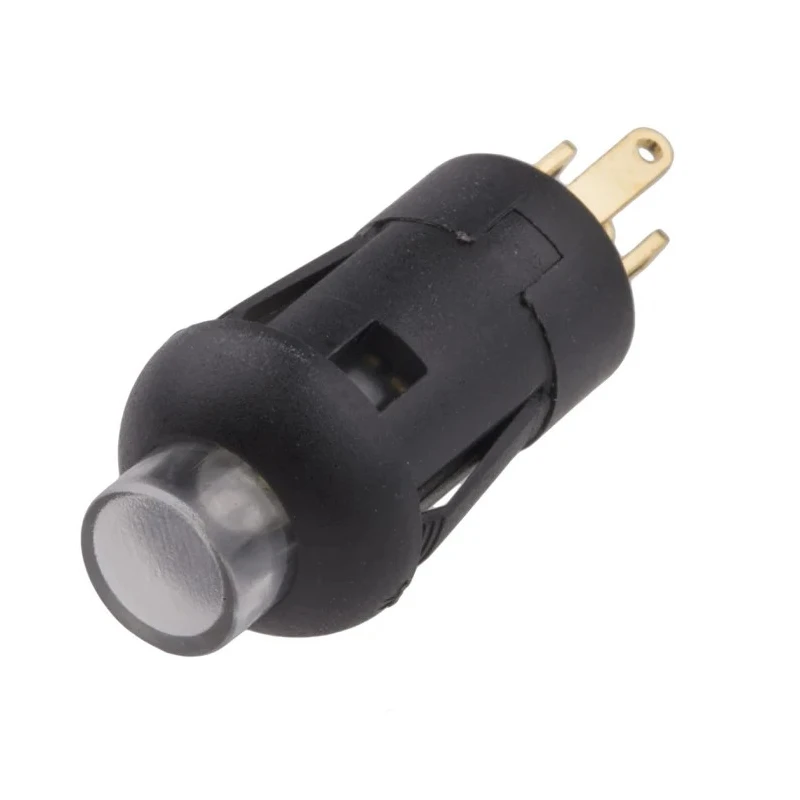

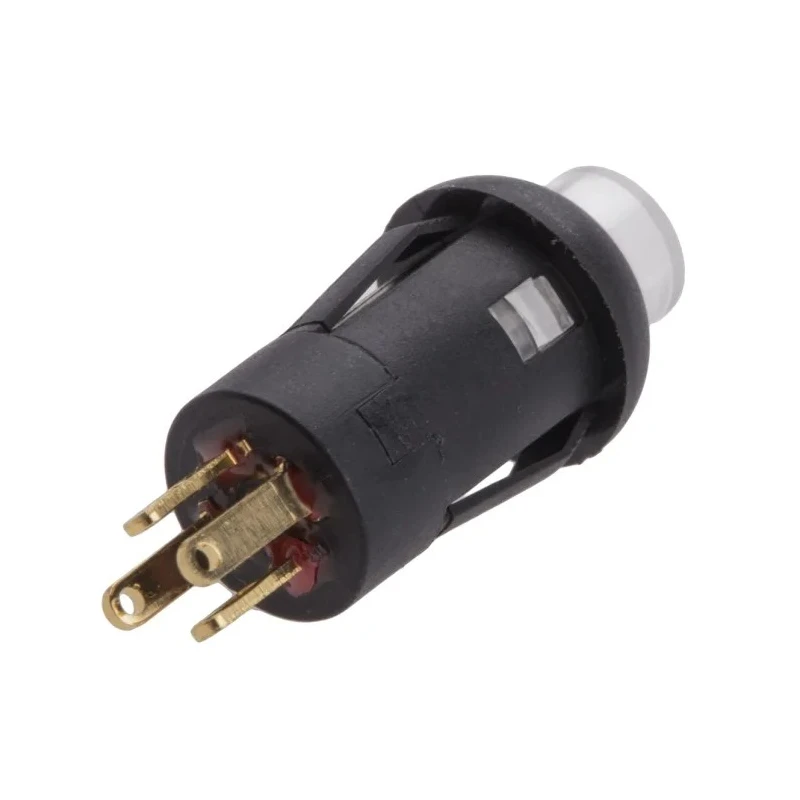

RS Pro Illuminated Miniature Push Button Switch Momentary PCB 8 mm Cutout SPST White LED 30V dc 820-7527
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS Pro |
| Model | 820-7527 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Panel Cutout Size | 8 mm |
| Terminal type | PCB Pin |
| LED Colour | White |
| Switch Operation | Momentary |
| Contact DC Voltage | 30V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Operating Force | 250±100gf (gram-force) |
| Total travel | 1.2±0.3mm |
Key Features
- This switch features a white LED illumination for clear indication.
- The actuator is a cap style with a total travel of 1.2±0.3 mm.
- Operates at a contact DC voltage of 30 V dc with a contact current rating of 100 mA.
- Constructed with a durable Nylon 6/6 case and copper alloy terminals with gold plating.
- Designed for a maximum operating temperature of 85°C and an operating force of 250±100 gf.
- Ideal for applications in test equipment, telecommunications, networking, and handheld appliances.
- Provides reliable momentary switch operation with a lifespan of 50,000 cycles.
Product Description
RS Pro 820-7527 is an illuminated miniature push button switch featuring momentary operation and SPST contact configuration, designed for PCB mounting with an 8 mm panel cutout. The switch operates at 30 V dc and includes a white LED for illumination, enhancing visibility in various electrical and electronic applications.
Manufactured with a high-quality Nylon 6/6 housing and copper alloy terminals with gold plating, this push button switch ensures durability and reliable electrical contact. The actuator style is a cap, offering a total mechanical travel of 1.2±0.3 mm and an operating force of 250±100 gf, delivering responsive and tactile feedback.
The switch withstands a maximum operating temperature of 85°C and supports a contact current of 100 mA, making it suitable for various industrial and commercial environments. Its momentary operation and normally open contact functionality make it ideal for controlling machines, processes, and electronic circuits.
Applications include use in test equipment, telecommunications, networking devices, and handheld appliances where compact and reliable push button control is required. The switch is designed to deliver 50,000 cycles of operation, providing long-term performance and durability.
This miniature push button switch offers momentary operation with a single-pole, single-throw contact configuration. Illumination is provided by a white LED, enhancing operational visibility. The housing is made from Nylon 6/6, and terminals are copper alloy with gold plating for improved conductivity and corrosion resistance.
The switch mounts on PCB with an 8 mm cutout for secure fitting. It supports a contact DC voltage rating of 30 V dc and a contact current of 100 mA. The actuator is a tactile cap style with a mechanical travel of 1.2±0.3 mm and operating force of 250±100 gram-force.
Maximum operating temperature is 85°C, suitable for a range of operating conditions.
RS Pro products are renowned for their quality and reliability, making this switch suitable for engineers and industries demanding dependable push button components. Explore more RS Pro switches and components in the Electronics & Electricals category on EnvMart.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole, single-throw (SPST) contact configuration.
It can operate at a maximum temperature of 85°C.
This switch requires an 8 mm panel cutout for installation on a PCB.
The actuator has a total travel distance of 1.2±0.3 mm.
The contact DC voltage rating for this switch is 30 V dc.
It uses a white LED for illumination, enhancing visibility during operation.
The switch has a contact current rating of 100 mA.
The operating force for this switch is 250±100 gf (gram-force).
The housing is made from Nylon 6/6, and the terminals are copper alloy with gold plating.
It is suitable for applications in test equipment, telecommunications, networking devices, and handheld appliances.
This switch is designed to deliver a lifespan of 50,000 cycles of operation.
This model is designed for PCB mounting.
