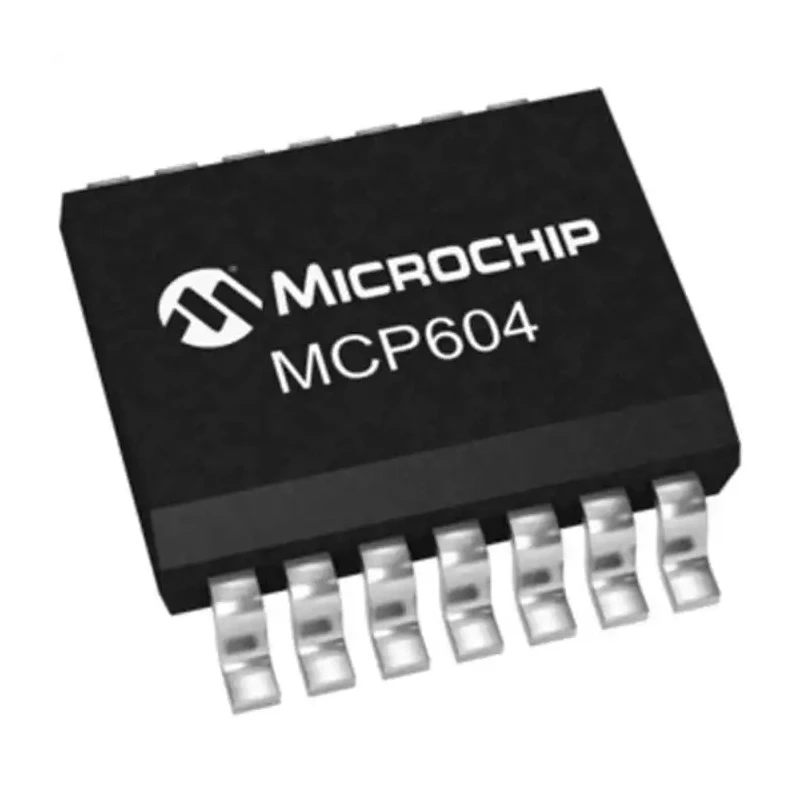

Microchip Operational Amplifier 2.8 MHz 14-Pin SOIC 5V Dual Channel MCP604T-I/SL

Microchip MCP604T-I/SL Operational Amplifier is a high-performance, low-power CMOS device designed to operate with a single supply voltage from 2.7V up to 5V, making it ideal for battery-powered and portable instrumentation. Featuring two independent channels, this dual operational amplifier offers a gain bandwidth product of 2.8 MHz and rail-to-rail output with a maximum output current of 30 mA, ensuring excellent signal fidelity and flexibility in various electronic applications.

With a low input bias current of 1 picoampere and an input offset voltage of only 2 millivolts, the MCP604T-I/SL enables precise signal amplification with minimal error. The device operates efficiently within an industrial temperature range of -40°C to 85°C, supporting robust performance in demanding environments. Its slew rate of 2.3 V/μs facilitates quick response in dynamic signal environments.

The 14-pin SOIC surface-mount package measures 8.65 mm in length, 3.9 mm in width, and 1.25 mm in height, offering a compact footprint for integration into various circuit designs. The MCP604 series is unity gain stable and RoHS compliant, catering to both high-precision analog applications and environmental compliance requirements.

Single supply voltage range from 2.7V to 5V supports portable electronic applications. Low input bias current of 1 pA minimizes error in signal processing. Dual channel configuration provides versatility in circuit design.

Rail-to-rail output facilitates maximum output voltage swing. Operates in wide industrial temperature range (-40°C to 85°C) for reliability. Maximum output current of 30 mA supports driving diverse loads. Compact 14-pin SOIC surface-mount package eases PCB integration.

Slew rate of 2.3 V/μs enables fast switching and accurate waveform reproduction. Low input offset voltage of 2 mV ensures signal accuracy. Compliance with RoHS standards contributes to environmental safety.

This operational amplifier is suitable for industrial, laboratory, electronic manufacturing, instrumentation, and consumer electronics applications where low noise, low power consumption, and high accuracy are required. Incorporate the MCP604T-I/SL into your designs for efficient and reliable signal amplification.
