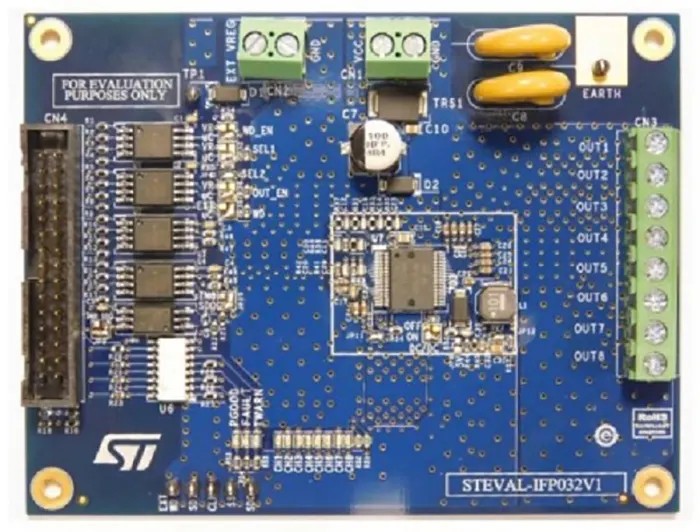

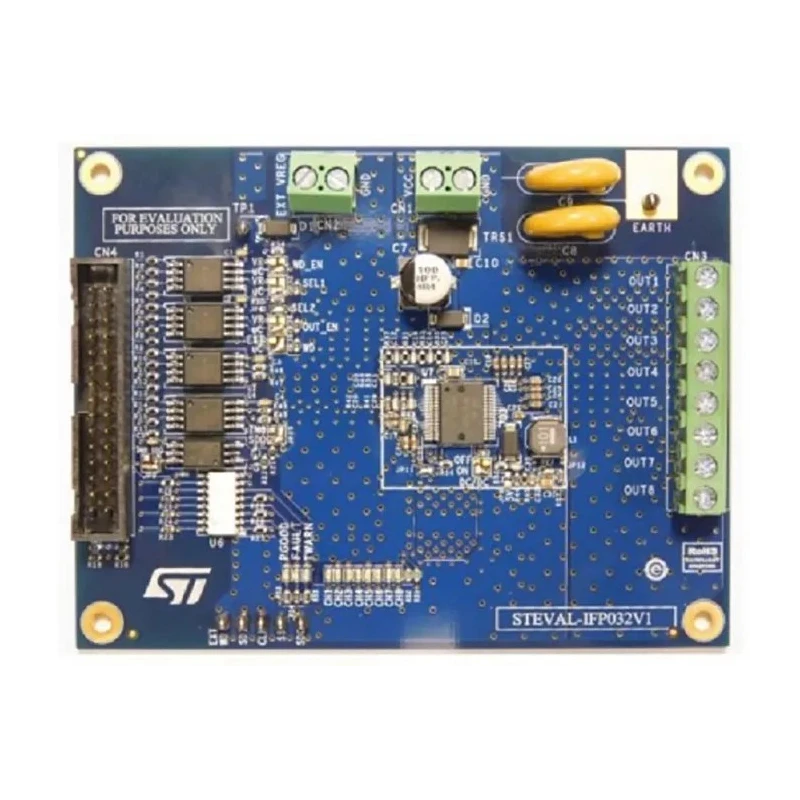

STMicroelectronics Eight-Channel High-Side Driver Evaluation Board with VNI8200XP-32 Step Down Converter STEVAL-IFP032V1

STMicroelectronics STEVAL-IFP032V1 evaluation board is a highly specialized eight-channel high-side driver designed around the VNI8200XP-32 step down converter. It facilitates detailed device testing for power management and digital interface applications within industrial, electronics development, and prototyping environments.

The board supports an operating voltage range from 10.5 V to 33 V, suitable for various embedded and power electronics applications. Each channel is capable of operating at 1.2 A current, ensuring reliable performance in demanding conditions.

Protection features include reverse polarity protection to prevent damage due to incorrect wiring and high-speed opto-isolation for SPI and parallel communications, which enables secure and interference-resistant interfacing. Additionally, low-speed opto-isolation is implemented for device fault signaling, enhancing system diagnostics.

The integrated step-down converter on the board provides selectable 3.3 V or 5 V outputs, adapting to different logic levels and device requirements.

This Evaluation Board conforms to important standards such as IEC 61000-4-5 for surge immunity, IEC 61000-4-2 for electrostatic discharge, and IEC 61000-4-4 for electrical fast transient immunity, underlining its robustness for industrial environments.

Designed for use with a graphical user interface (GUI), the STEVAL-IFP032V1 simplifies the testing process, accelerating development cycles. The kit classification is demonstration board, featuring the VNI8200XP-32 as its core device, aiming to support power management IC development and evaluation.

Operates from 10.5 V to 33 V supply voltage range. Each channel supports 1.2 A operating current for robust power delivery. Includes reverse polarity protection. High-speed opto-isolation for SPI and parallel communication.

Low-speed opto-isolation for device fault signaling. Integrated step-down converter outputting 3.3 V or 5 V. IEC 61000-4-5, IEC 61000-4-2, and IEC 61000-4-4 compliant. Designed for use with GUI interface. Kit classified as demonstration board.

Based on VNI8200XP-32 high-side driver.
