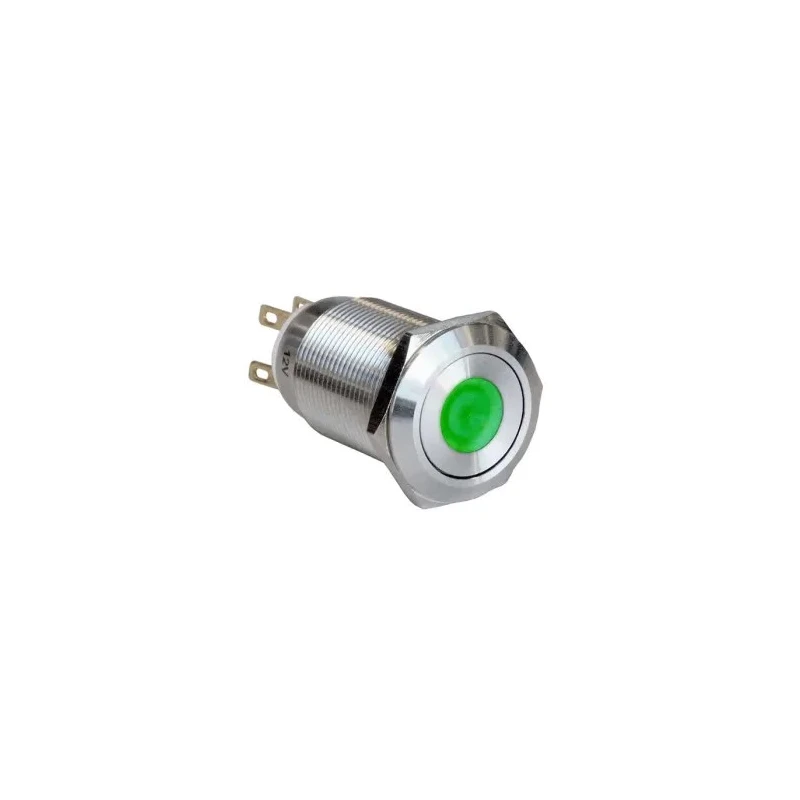

Bulgin MPI005 Series Illuminated Push Button Switch, Latching, Panel Mount, 19.2 mm Cutout, SPST, Green LED, IP65, 24 V dc
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bulgin |
| Model | MPI005 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | MPI005 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 24V dc |
| Actuator Style | Push Button |
| Switch Contact Current | 1A |
| Legend | Blank |
Key Features
- The push button actuator is silver colored and designed for panel mounting.
- The switch features a stainless steel vandal-resistant design with an IP65 rating for dust and water resistance.
- It operates within a temperature range from -25°C to 55°C for wide environmental suitability.
- The contact configuration is SPST with silver contacts supporting a 1 A contact current at 24 V dc.
- The LED provides green illumination with solder terminals for secure connections.
- RoHS compliant ensuring environmentally friendly manufacturing standards.
- The switch has a rear nut fixing torque of 0.8 Nm for secure panel installation.
- It is suitable for industrial control panels, automation systems, and machinery requiring illuminated push button controls.
Product Description
The Bulgin MPI005D28LSGN12 is a high-quality illuminated push button switch from the MPI005 series, designed for robust panel mounting applications. Featuring a 19.2 mm panel cutout, this latching switch employs a silver push button actuator with a green LED for clear operational indication at 24 V dc supply.
Constructed with a stainless steel build, the switch is vandal resistant and rated IP65, offering strong protection against dust ingress and water jets, making it suitable for harsh industrial environments.
Operating effectively in temperatures ranging from -25°C to +55°C, the switch serves a broad range of industrial and automation control scenarios. It features a single-pole, single-throw (SPST) contact configuration with silver contacts capable of a contact current of 1 A, ensuring reliable switching performance.
The solder terminal type facilitates secure wiring connections, and the switch complies with RoHS standards, supporting environmentally responsible manufacturing practices.
The rear nut fixing torque rating of 0.8 Nm ensures the switch remains firmly installed on control panels. Typical applications include electrical panels, automation machinery controls, and industrial push button interfaces where illumination and durability are essential.
The push button actuator is silver colored and designed for panel mounting. The switch features a stainless steel vandal-resistant design with an IP65 rating for dust and water resistance. It operates within a temperature range from -25°C to 55°C for wide environmental suitability.
The contact configuration is SPST with silver contacts supporting a 1 A contact current at 24 V dc. The LED provides green illumination with solder terminals for secure connections. RoHS compliant ensuring environmentally friendly manufacturing standards.
The switch has a rear nut fixing torque of 0.8 Nm for secure panel installation. It is suitable for industrial control panels, automation systems, and machinery requiring illuminated push button controls. Explore more Push Button Switches and components at EnvMart for your electrical and automation equipment needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole, single-throw (SPST) contact configuration with silver contacts.
It has an IP65 rating, providing protection against dust ingress and water jets.
This switch operates effectively within a temperature range of -25°C to 55°C.
It operates at a contact DC voltage of 24 V.
The switch features solder terminals for secure wiring connections.
The required panel cutout size for this switch is 19.2 mm.
It supports a maximum contact current of 1 A.
The actuator is silver colored, designed for panel mounting.
Yes, it is RoHS compliant, ensuring environmentally friendly manufacturing standards.
This model features a latching switch operation.
The rear nut fixing torque for this switch is 0.8 Nm.
It is suitable for industrial control panels, automation systems, and machinery requiring illuminated push button controls.
