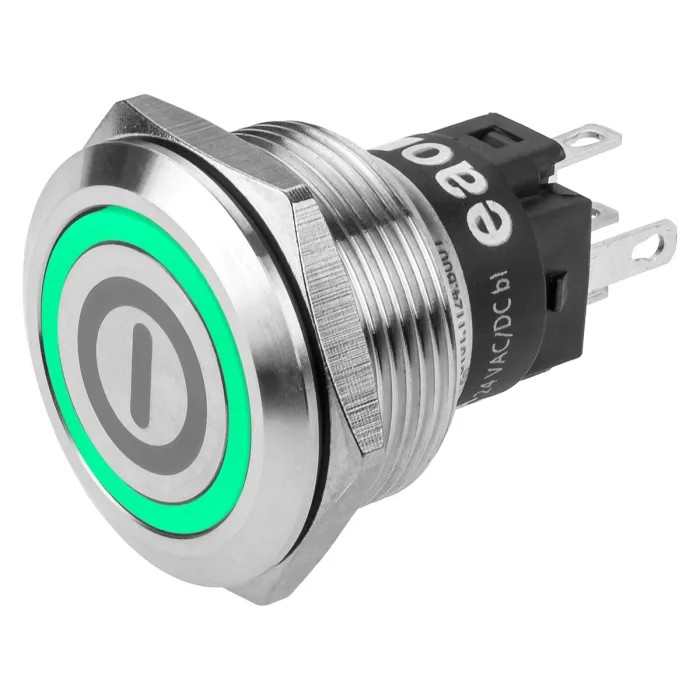

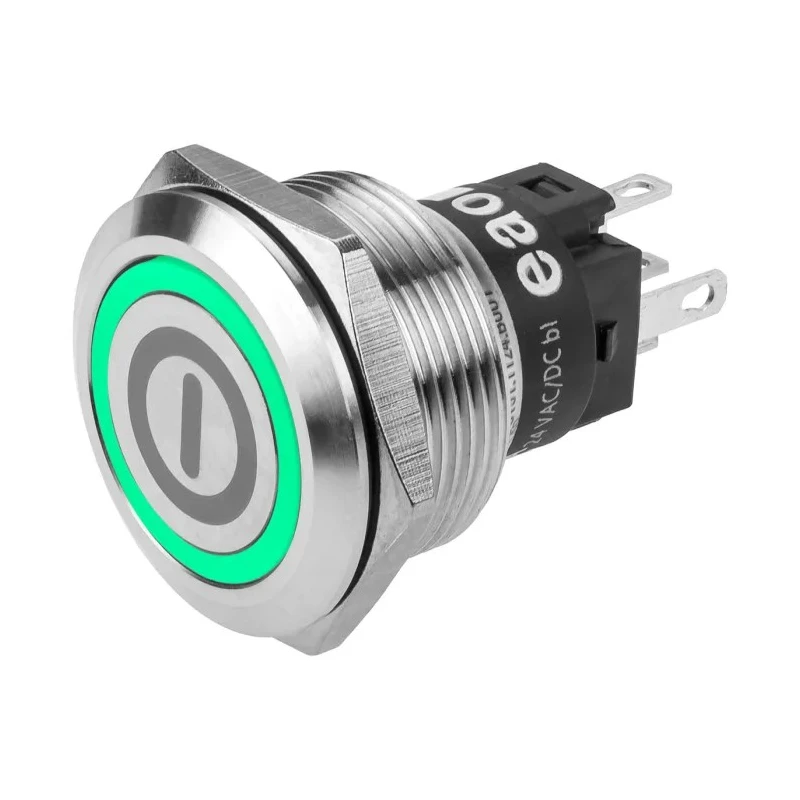

EAO Illuminated Push Button Switch, Momentary, Panel Mount, 22.3 mm Cutout, SPDT Contact, Green LED, IP65 82-6151.1134.B001



Category Push Button Switches Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	35.5mm
Model	82-6151.1134.B001
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Industrial	Machinery and factory equipment
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Green
Switch Operation	Momentary
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	On-Off
Vandal-resistant	Impact resistant
Exposed public areas	e.g. ticketing and vending machines
Lifting and moving	Elevators and people movers
Building management	Access control and security systems

Key Features

The switch features a round actuator style designed for panel mounting.
It has a contact rating of 3A and supports both 240V DC and AC voltages.
Designed for harsh environments, it offers vandal and impact resistance.
Operation temperature ranges from -30°C to 70°C for versatile industrial use.
The device provides excellent tactile feedback with long service life exceeding 1 million cycles.
Gold-plated silver contacts are available for low voltage and current applications.
Suitable for exposed public areas such as ticketing and vending machines.
Ideal for industrial machinery, factory equipment, and building management security systems.

Product Description

The EAO 82-6151.1134.B001 is an illuminated push button switch designed for momentary operation, featuring a single-pole double-throw (SPDT) contact configuration. With a 22.3 mm panel cutout and round actuator style, this rugged panel mount switch integrates a green LED for illumination. Rated IP65 and IP67, it is suitable for high ingress protection environments, effectively resisting dust and water ingress.

Its electrical ratings include a contact voltage of 240V AC/DC and a contact current of 3A, making it ideal for various control and signaling applications. The switch supports a wide temperature range from -30°C up to 70°C, enabling reliable operation in harsh industrial and outdoor conditions.

Constructed with durability in mind, this switch includes impact-resistant vandal protection and is available with gold-plated silver contacts for enhanced performance in low voltage and current operations. The tactile feedback is excellent, with a service life rated for over one million cycles, ensuring long-term reliability in demanding use cases.

Applications include exposed public areas such as ticketing and vending machines, industrial machinery, factory equipment, elevator controls, building security, audio-video equipment, medical instruments, and food industry equipment with corrosion-resistant options available on request.

The switch complies with international standards including CB, CCC, cUL, and UL certifications, reflecting rigorous quality and safety assurance. The switch features a round actuator style designed for panel mounting. It has a contact rating of 3A and supports both 240V DC and AC voltages.

Designed for harsh environments, it offers vandal and impact resistance. Operation temperature ranges from -30°C to 70°C for versatile industrial use. The device provides excellent tactile feedback with long service life exceeding 1 million cycles.

Gold-plated silver contacts are available for low voltage and current applications. Suitable for exposed public areas such as ticketing and vending machines. Ideal for industrial machinery, factory equipment, and building management security systems.

Complies with CB, CCC, cUL, and UL standards ensuring quality and safety. Discover this and other high-quality Push Button Switches in our Electronics & Electricals Switches & Sockets category on EnvMart.
