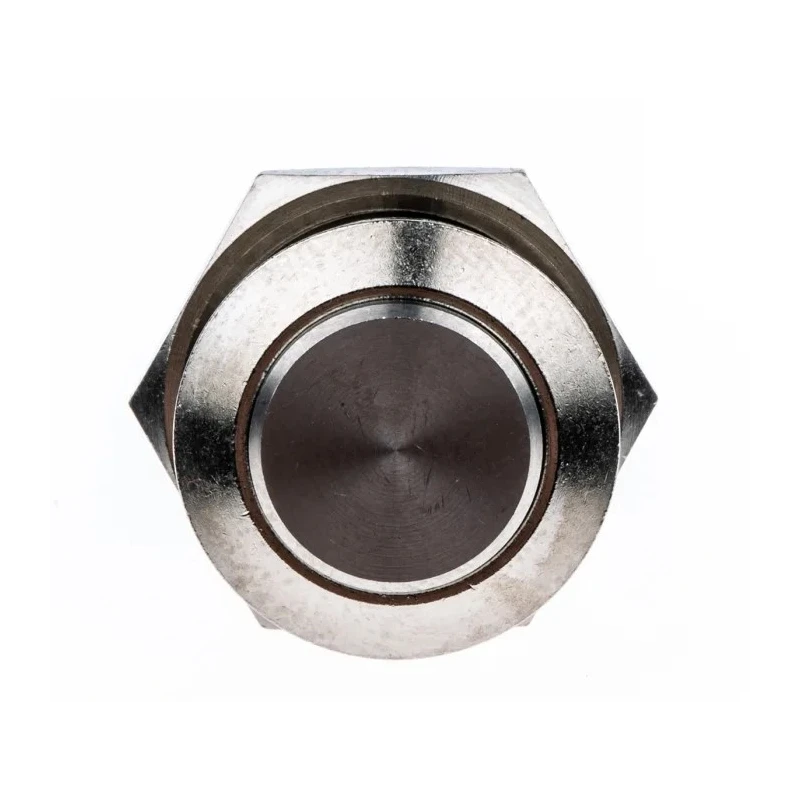

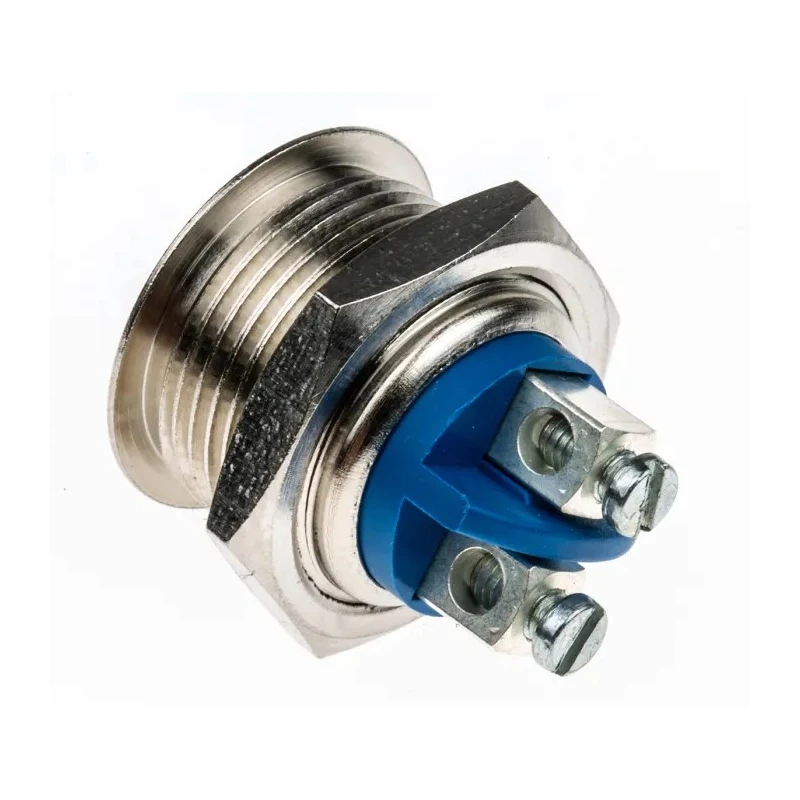

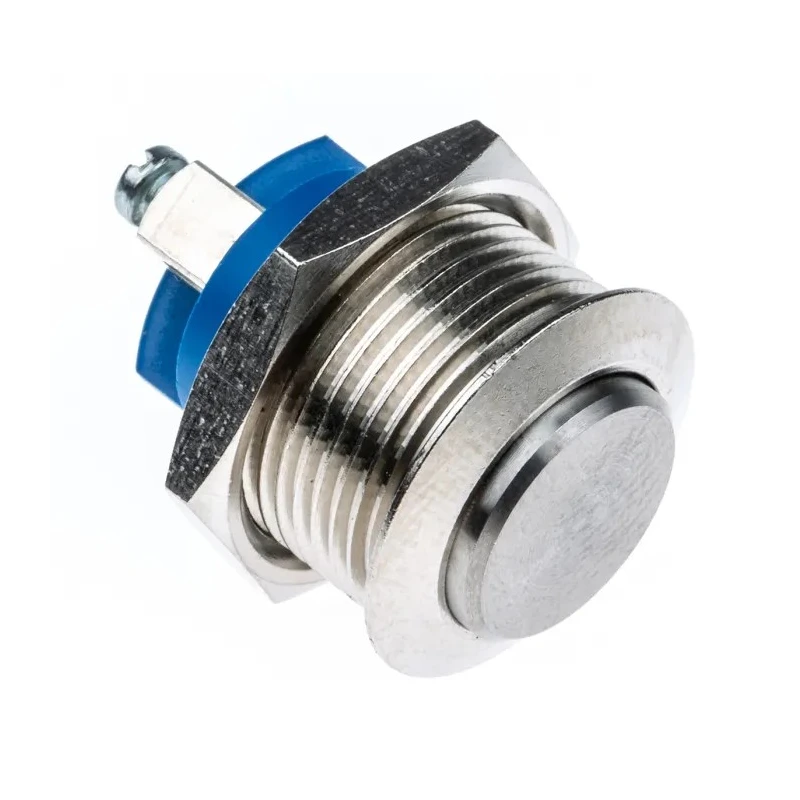

APEM AV Series Push Button Switch Momentary Panel Mount SPST Screw Terminal IP65 48 V dc AV0630C910
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | AV0630C910 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | AV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 16.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 200mA |
| Stock No | 278-1133 is a 16mm screw terminal curved push-button switch |
Key Features
- Features silver actuator color offering durability and aesthetic finish.
- Operates momentarily for precise control applications.
- Panel cutout size is 16.2 mm suitable for standard installations.
- SPST contact configuration with screw terminal type for reliable connections.
- IP65 rated enclosure protects against dust and water ingress.
- Operates safely up to 48 V dc and contact current rating is 200mA.
- Temperature operating range from -30°C to a maximum of 70°C ensures versatile environmental resistance.
- Mechanical stop protects the contact mechanism enhancing switch longevity up to 100,000 cycles.
Product Description
APEM AV0630C910 is a momentary push button switch designed for panel mounting with a precise 16.2 mm cutout size. This high-quality switch incorporates a single pole single throw (SPST) configuration and screw terminal connections, ensuring reliable installation and operation within industrial and commercial electrical systems.
Featuring an IP65 rated enclosure, the switch is protected against dust ingress and low-pressure water jets, making it suitable for demanding industrial environments such as automation systems, manufacturing lines, and control panels.
The silver actuator color adds a professional finish while providing durability. Its mechanical stop enhances the contact mechanism's impact resistance, promoting longevity with a rated mechanical life of 100,000 cycles. The switch can handle a contact DC voltage of up to 48 V and a contact current rating of 200mA, suitable for low power switching tasks.
Operating temperature ranges from -30°C to 70°C, enabling use in a variety of climatic conditions. The construction materials include a robust polybutylene housing with nickel plated brass bushings and silver plated contacts for corrosion resistance and stable electrical conductivity.
This push button switch complies with RoHS standards, ensuring reduced hazardous substances. Assembling this switch in France exemplifies quality manufacturing standards in the electrical components industry.
Silver actuator color offers durability and an aesthetic finish. Momentary switch operation for precise control. Panel cutout size 16.2 mm for standardized installation. SPST contact configuration with screw terminal connection.
IP65 rating provides dust and water resistance. Contact current rated at 200mA, suitable for low power circuits. Operating temperature from -30°C to 70°C for versatile environments. Mechanical life rated at 100,000 cycles for long-term reliability.
Constructed of polybutylene housing with plated metal components.
This APEM AV Series Push Button Switch is ideal for use in industrial electrical control panels, automation systems, and manufacturing equipment. Explore our extensive catalogue on EnvMart for similar industrial electrical components and advanced switchgear solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole single throw (SPST) contact configuration, which is suitable for various low power switching tasks.
The maximum operating temperature for this switch is 70°C, allowing it to function in a variety of climatic conditions.
The required panel cutout size for this switch is 16.2 mm, which is suitable for standard installations.
It has an IP65 rating, which provides protection against dust ingress and low-pressure water jets, making it suitable for demanding environments.
The contact current rating for this switch is 200mA, making it appropriate for low power circuits.
The operating temperature range for this switch is from -30°C to 70°C, ensuring versatile environmental resistance.
This model is rated for a mechanical life of up to 100,000 cycles, enhancing its longevity in applications.
It uses screw terminal connections, which ensure reliable installation and operation within electrical systems.
The switch complies with RoHS standards, ensuring reduced hazardous substances in its construction.
This push button switch is assembled in France, reflecting quality manufacturing standards in the electrical components industry.
The actuator color is silver, providing both durability and an aesthetic finish.
This model operates as a momentary switch, allowing for precise control applications.
