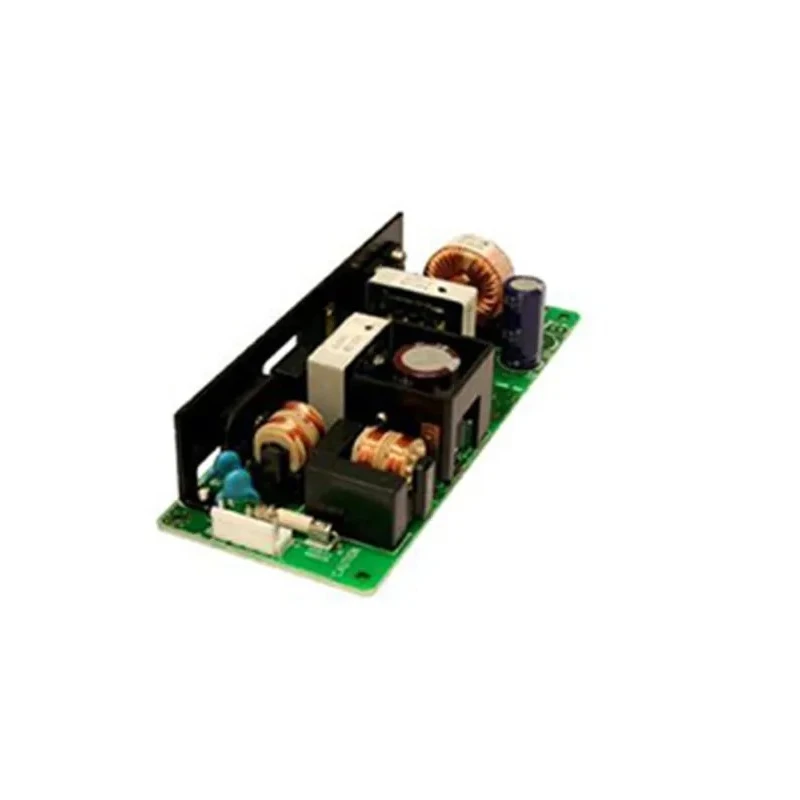

TDK-Lambda ZWS100BAF-5/A Switching Power Supply 5V DC 100W 20A Chassis Mount Compact Design Malaysia
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | TDK-Lambda |
| Power | 100W |
| Efficiency | 86% |
| Length | 185mm |
| Model | ZWS100BAF-5/A |
| Depth | 45mm |
| Gross Weight | 290g |
| Width | 45mm |
| Mount Type | Chassis |
| Series | ZWS100BAF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 265V dc |
| EMC Compliance | EN55011/EN55022-B, FCC-B, VCCI-B |
| Maximum Output Voltage | 5V dc |
| SMPS Output Current | 20A |
| Minimum Input Voltage | 85V ac |
| PFC compliance | Meets EN61000-3-2 (Typically 0.98/0.93) |
Key Features
- Compact switch mode power supply with an output voltage of 5V DC.
- Maximum output power of 100 watts supporting up to 20 amps of current.
- Wide input voltage range with 85V AC minimum and 370V DC maximum.
- Operating temperature range from -10°C to 70°C, suitable for industrial environments.
- High efficiency of 86% with active power factor correction.
- Convection cooled design with over current and over voltage protection.
- 3kVac input to output isolation ensuring operational safety.
- Complies with various EMC and safety standards including IEC/UL/CSA/EN 62368-1 and FCC Class B.
Product Description
TDK-Lambda ZWS100BAF-5/A is a high-performance switching power supply designed for industrial and electronic applications requiring reliable 5V DC power output. It provides a continuous power output of 100 watts with a maximum output current of 20 amps, making it ideal for factory automation, test and measurement devices, LED signage, and light industrial equipment.
This power supply features a robust chassis mount design with compact dimensions of 185 mm length, 45 mm width, and 45 mm depth, supporting efficient convection cooling for silent operation and durability. It supports a wide AC input voltage range from 85V AC to 265V AC and DC input up to 370V, ensuring compatibility with fluctuating power conditions.
The unit complies with multiple international safety and EMC standards such as IEC/UL/CSA/EN 62368-1, FCC Class B, VCCI-B, and CE marking. It incorporates over current and over voltage protection, active power factor correction with typical power factor values of 0.98/0.93, and 3kVac input-output isolation for enhanced safety and performance.
The operating temperature range from -10°C to +70°C allows for deployment in demanding industrial environments while maintaining full load operation up to 50°C ambient temperature. The device is manufactured in Malaysia, signifying adherence to quality manufacturing standards.
Compact and efficient 5V DC switching power supply. Wide input voltage range for flexibility in various installations. Active power factor correction for energy efficiency. Robust chassis mount suitable for industrial use.
Multiple safety and EMC certifications ensuring compliance. Over current and over voltage protection for reliability. Convection cooled for silent and maintenance-free operation. Ideal for automation, measurement, LED signage, and industrial equipment.
Manufactured in Malaysia ensuring product quality.
This product is part of the TDK-Lambda ZWS100BAF series of Switching Power Supplies, known for compact size, high efficiency, and reliable performance. Suitable for industries requiring stringent power specifications and safety standards.
Explore the TDK-Lambda power supplies category at EnvMart for comprehensive industrial power solutions designed to meet a wide range of application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 100 watts, supporting up to 20 amps of current.
It supports a wide input voltage range from 85V AC to 265V AC and up to 370V DC.
The efficiency of this unit is rated at 86%, which includes active power factor correction.
The dimensions are 185 mm in length, 45 mm in width, and 45 mm in depth.
The operating temperature range is from -10°C to +70°C, making it suitable for industrial environments.
Yes, it includes over current and over voltage protection for enhanced reliability.
It features a chassis mount design, suitable for various industrial applications.
It complies with multiple standards including IEC/UL/CSA/EN 62368-1 and FCC Class B.
The gross weight of this unit is 290 grams.
This model has a single output.
It features 3kVac input to output isolation for operational safety.
This power supply is manufactured in Malaysia.
