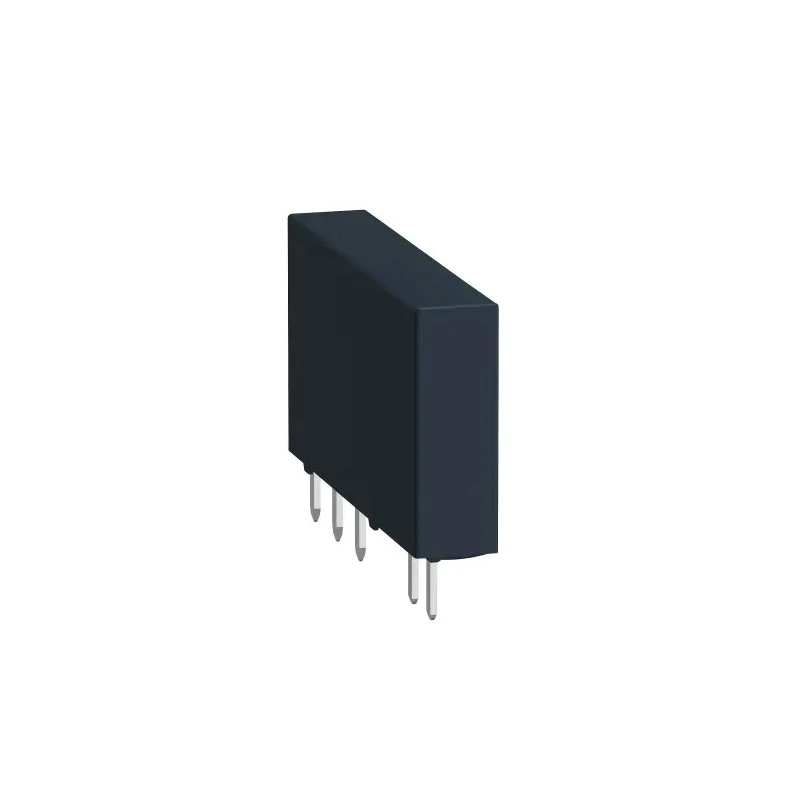

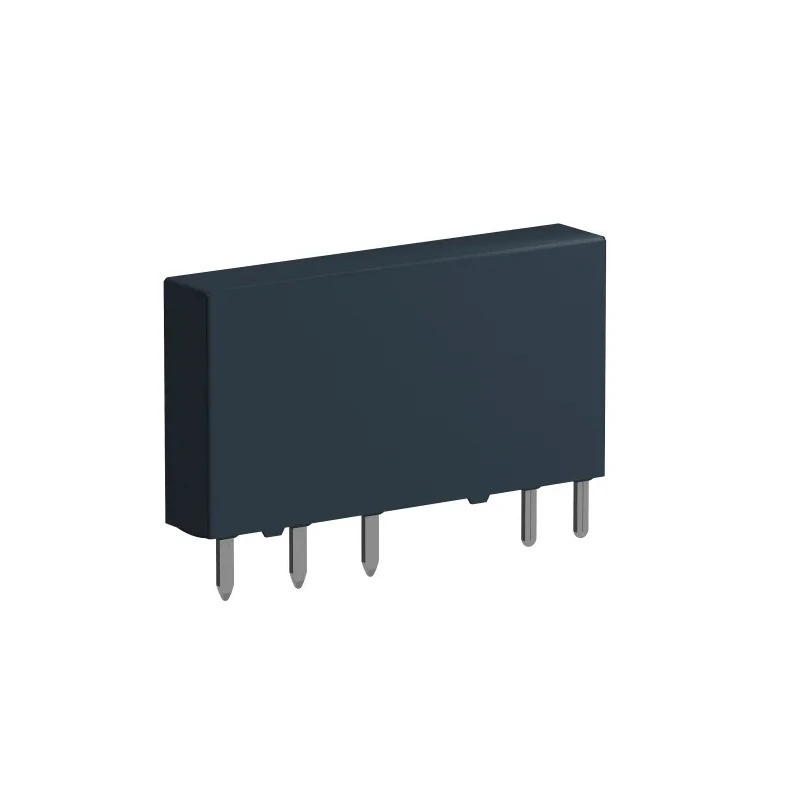

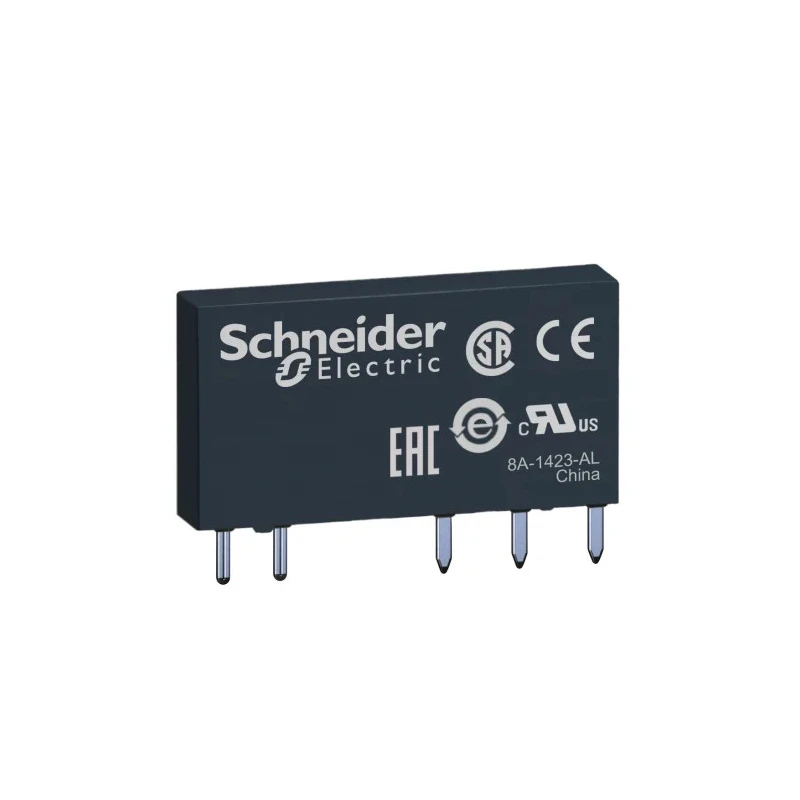

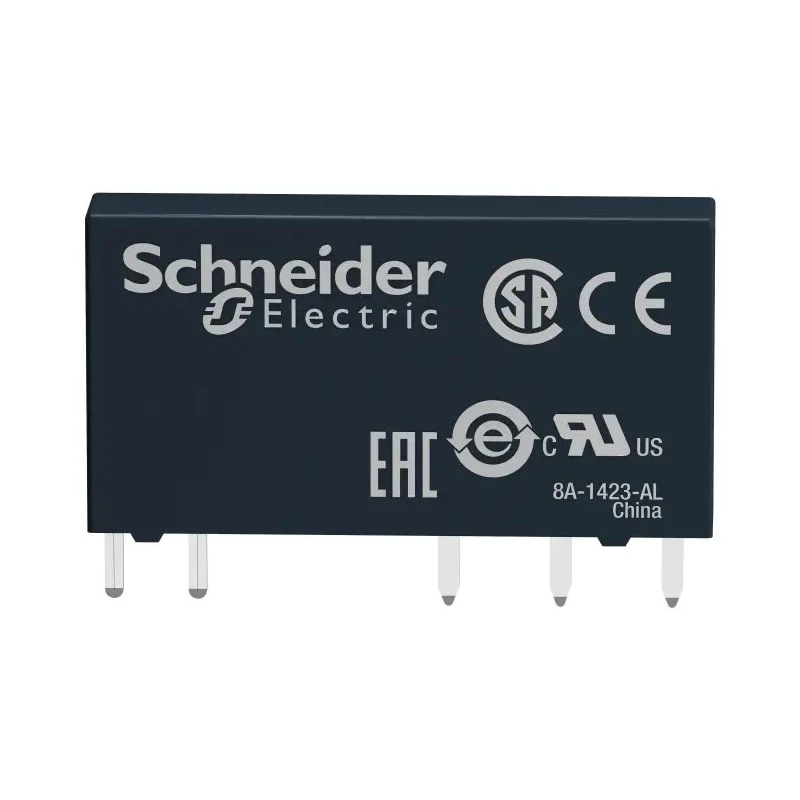

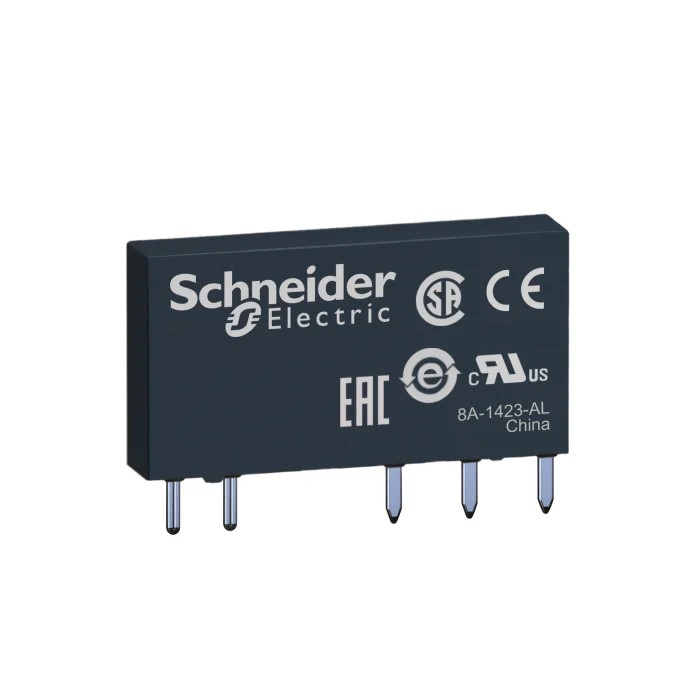

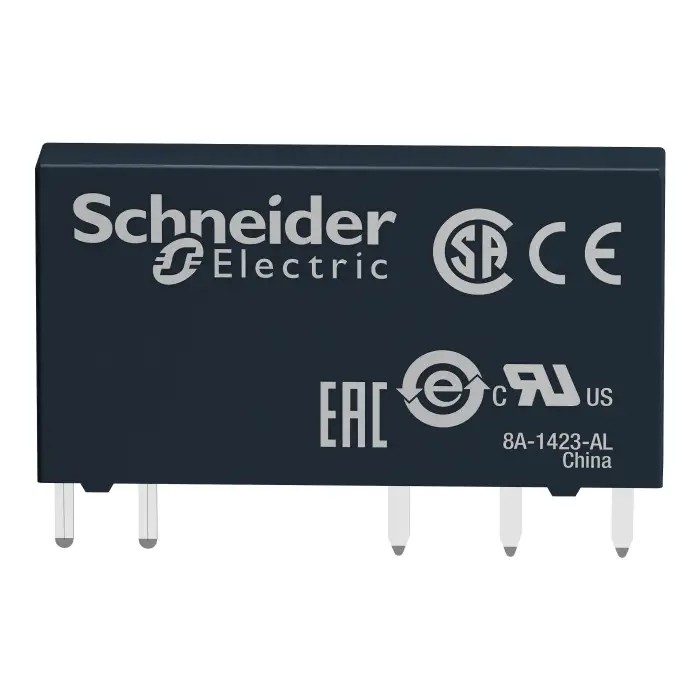

Schneider Electric PCB Power Relay 60V DC Coil 6A Switching Current SPDT RSL1AB4ND

Schneider Electric RSL1AB4ND Power Relay is a high-quality PCB mount relay designed for electrical, automation, and signal conditioning applications. It features a 60V DC coil voltage with a low coil power consumption of 210mW, making it energy efficient. The relay's contact configuration is SPDT (Single Pole Double Throw), suited for switching varied circuits with a 6A switching current capacity.

This relay is engineered with precision and compactness, measuring 5mm in length, 11.3mm in width, and 28mm in height, allowing it to fit effectively on printed circuit boards where space optimization is critical. The contact materials use silver alloy for reliable conductivity and long-lasting performance.

The operating temperature range from -40°C to 55°C ensures dependable operation in diverse environmental conditions. It switches AC voltages up to 84V and DC voltages also up to 84V with a power rating of 50W. Coil resistance of 16.6kΩ contributes to stable coil operation.

The RSL1AB4ND complies with RoHS environmental standards, ensuring it meets regulations for hazardous substance elimination, ideal for industrial, manufacturing, and automation sectors requiring stringent compliance.

This power relay is ideal for applications in electronics assembly, industrial control systems, HVAC controls, and automation equipment requiring compact, energy-efficient, and reliable switching devices. It is manufactured in China and part of the Harmony Relay RSL series known for quality and consistency.

This relay features a Single Pole Double Throw (SPDT) contact configuration for versatile applications. Designed for PCB mounting with PCB pin terminals ensuring secure installation. Coil resistance is 16.6kΩ with a coil power consumption of 210mW.

Operates safely within a temperature range of -40°C to 55°C for robust environmental tolerance. Capable of switching up to 6A current at 84V AC or DC switching voltage. Compact dimensions of 5mm length, 11.3mm width, and 28mm height minimize PCB space usage.

The contact material of silver alloy ensures high electrical conductivity and durability. Compliant with RoHS standards for environmental safety and sustainability. Explore more Schneider Electric relays and other Power Relay options in the Electronics & Electricals category on EnvMart for your industrial and commercial automation needs.
