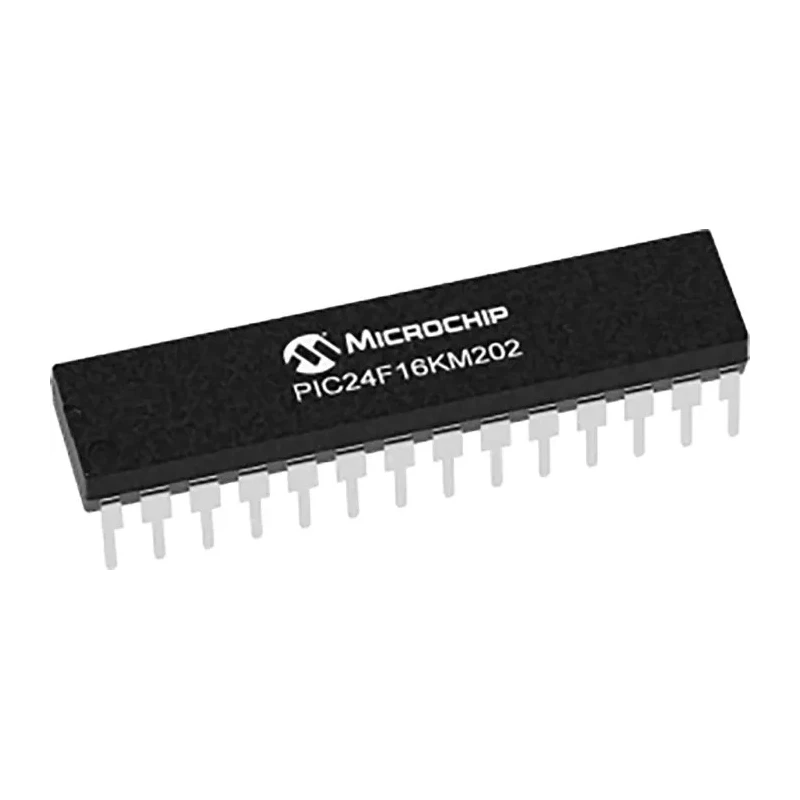

Microchip 16 bit PIC PIC24F Microcontroller 32 MHz 16kB FLASH 28-Pin SPDIP PIC24F16KM202-I/SP
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC24F16KM202-I/SP |
| Width | 7.37mm |
| Mount Type | Through Hole |
| Series | PIC24F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | MSSP |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 1 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 19 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 8 Bit |
| System Supervisors | Low Power BOR, WDT, INT0 and RTCC |
Key Features
- Operates with a maximum clock frequency of 32 MHz.
- Features 16 kB of FLASH program memory and 2 kB of RAM.
- Includes 19 channels of 12-bit ADC and 2 x 8-bit DACs for analog interfacing.
- Supports MSSP interface type for communication.
- Low power consumption with multiple power modes including Sleep and Idle.
- Operating voltage ranges between 1.8 V to 5.5 V suitable for flexible power applications.
- Designed to operate within temperature range from -40°C to 85°C.
- Includes 3 analog comparators and one timer for various timing functions.
Product Description
Microchip PIC24F16KM202-I/SP is a 16-bit PIC microcontroller designed for efficient processing and low power consumption. It operates at a maximum clock speed of 32 MHz and includes 16kB of FLASH program memory, providing ample space for application code. The device supports multiple interfaces, including MSSP, allowing flexible connectivity options.
With integrated analog features such as 19 channels of 12-bit ADC and dual 8-bit DACs, it is well suited for precision analog signal processing. It also includes three analog comparators and a timer module for advanced control and measurement functionalities.
The microcontroller supports a wide operating voltage range from 1.8 V to 5.5 V, making it adaptable to both low-voltage and standard 5V systems. Its operating temperature range from -40°C to 85°C ensures reliability in harsh industrial environments.
Enclosed in a 28-pin SPDIP through-hole package with dimensions of 35.56 mm length, 7.37 mm width, and 3.81 mm height, the component allows easy prototyping and mounting.
Designed with low power consumption in mind, it offers various power modes such as Run, Doze, Idle, and multiple Sleep states, including Ultra Low-Power wake-up capabilities, making it ideal for battery-powered or energy-sensitive applications.
The device complies with RoHS directives, assuring environmental safety in electronic designs. It is manufactured in Thailand, ensuring high quality and consistent supply for industrial, commercial, and development uses.
Operates at up to 32 MHz clock speed for efficient processing. 16kB FLASH memory combined with 2kB RAM for program execution and data handling. Integrated 12-bit ADCs and 8-bit DACs enable accurate analog interfacing. MSSP interface supports SPI and I2C communications.
Wide operating voltage and temperature ranges enhance versatility. Multiple power saving modes reduce energy consumption significantly. 28-pin SPDIP package suitable for through-hole PCB assembly. Includes low power system supervisors like BOR, WDT, INT0, and RTCC for system reliability.
Ideal for embedded control in industrial automation, instrumentation, and consumer electronics. RoHS compliant and built to quality standards in Thailand. Explore a wide range of Microchip Microcontrollers and electronic components at EnvMart for your embedded system and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a maximum clock frequency of 32 MHz.
This model features 16 kB of FLASH program memory.
It includes 19 channels of 12-bit ADC for analog interfacing.
The operating voltage ranges between 1.8 V to 5.5 V.
It is designed to operate within a temperature range from -40°C to 85°C.
It is enclosed in a 28-pin SPDIP through-hole package.
This unit has 2 kB of RAM.
It supports the MSSP interface type for communication, including SPI and I2C.
The dimensions are 35.56 mm in length, 7.37 mm in width, and 3.81 mm in height.
Yes, it complies with RoHS directives, ensuring environmental safety in electronic designs.
