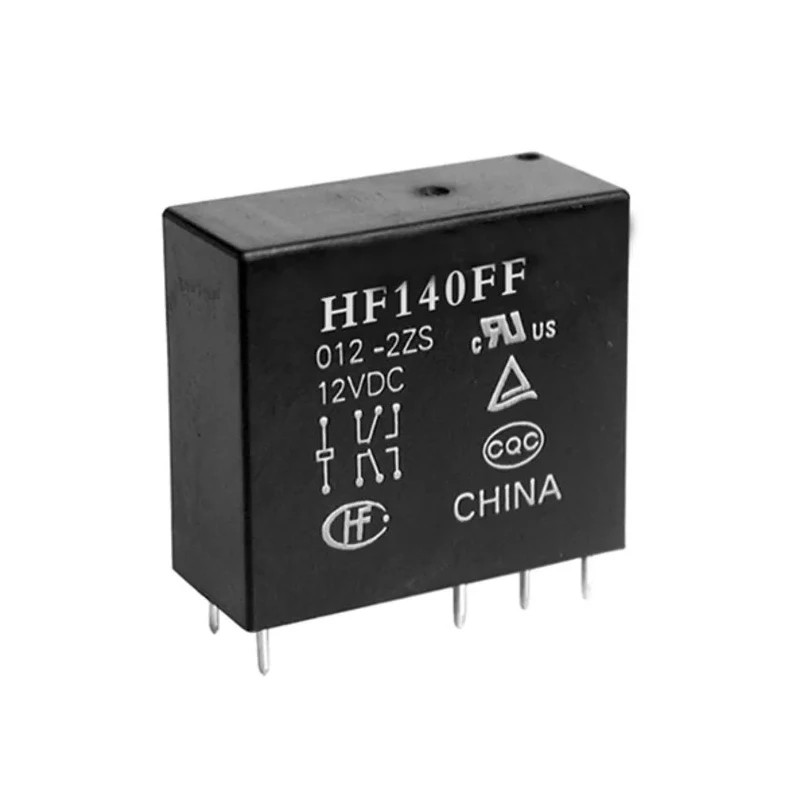

Hongfa Europe GMBH PCB Power Relay 24V dc Coil 10A Switching Current DPDT HF140FF/024-2ZTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26.3mm |
| Length | 29mm |
| Model | HF140FF/024-2ZTF |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF140FF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Features a 24V dc coil for reliable electromagnetic actuation.
- Double Pole Double Throw (DPDT) contact configuration for versatile circuit switching.
- Designed for PCB mounting with PCB pin terminals for easy installation.
- Switching current capacity up to 10A suitable for moderate power loads.
- Operating temperature range from -40°C to 85°C for harsh environments.
- Silver alloy contacts ensure low contact resistance and durability.
- Coil resistance measured at 1.1kΩ with coil power of 530mW.
- Compact form factor with dimensions 29mm length, 13mm width, and 26.3mm height.
Product Description
Hongfa Europe GMBH HF140FF/024-2ZTF PCB Power Relay is a high-quality DPDT relay with a 24V dc coil voltage and 10A switching current rating, ideal for PCB mounting. This relay provides reliable electrical switching with silver alloy contacts designed for long service life and low contact resistance. It operates within a wide temperature range from -40°C to 85°C, making it suitable for varied industrial, automotive, and commercial applications.
The relay features a robust coil resistance of 1.1kΩ and is powered at 530mW coil power, ensuring low power consumption and efficient performance. Its compact dimensions (29mm length, 13mm width, 26.3mm height) enable easy integration into tight PCB layouts. The DPDT configuration allows for versatile double pole double throw switching, supporting AC voltage up to 250V and DC voltage up to 30V. It withstands high isolation voltage of 5KV AC, ensuring operational safety and reliability.
This product is RoHS compliant and flux proofed, emphasizing environmental friendliness and reliability over up to 10 million mechanical cycles. It is widely used in electrical control devices, automotive systems, industrial automation, and signal conditioning circuits where precision and durability are essential.
Applications include automotive industry control modules, industrial relay switching, and PCB signal conditioning. This relay is an essential component for designers and engineers seeking a durable, high-performance PCB power relay solution.
Features a 24V dc coil for reliable electromagnetic actuation. Double Pole Double Throw (DPDT) contact configuration for versatile circuit switching. Designed for PCB mounting with PCB pin terminals for easy installation.
Switching current capacity up to 10A suitable for moderate power loads. Operating temperature range from -40°C to 85°C for harsh environments. Silver alloy contacts ensure low contact resistance and durability. Coil resistance measured at 1.1kΩ with coil power of 530mW.
Compact form factor with dimensions 29mm length, 13mm width, and 26.3mm height. Complies with RoHS standards ensuring environmental friendliness. High isolation voltage between coil and contacts rated at 5KV AC. Explore more Power Relay solutions at EnvMart for industrial, automotive, and commercial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a coil voltage of 24V DC, enabling reliable electromagnetic actuation.
The relay has a maximum switching current capacity of 10A, suitable for moderate power loads.
This unit has dimensions of 29mm in length, 13mm in width, and 26.3mm in height, making it compact for PCB mounting.
It features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile circuit switching.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
The relay uses silver alloy contacts, which ensure low contact resistance and durability.
The coil resistance is measured at 1.1kΩ, contributing to its efficient performance.
It requires a coil power of 530mW, ensuring low power consumption during operation.
It can switch AC voltage up to 250V and DC voltage up to 30V, making it versatile for various applications.
The contact resistance is rated at 50mΩ, which helps in maintaining efficient electrical performance.
Yes, it complies with RoHS standards, ensuring environmental friendliness in its design and materials.
This relay is designed for PCB mounting with PCB pin terminals for easy installation.
