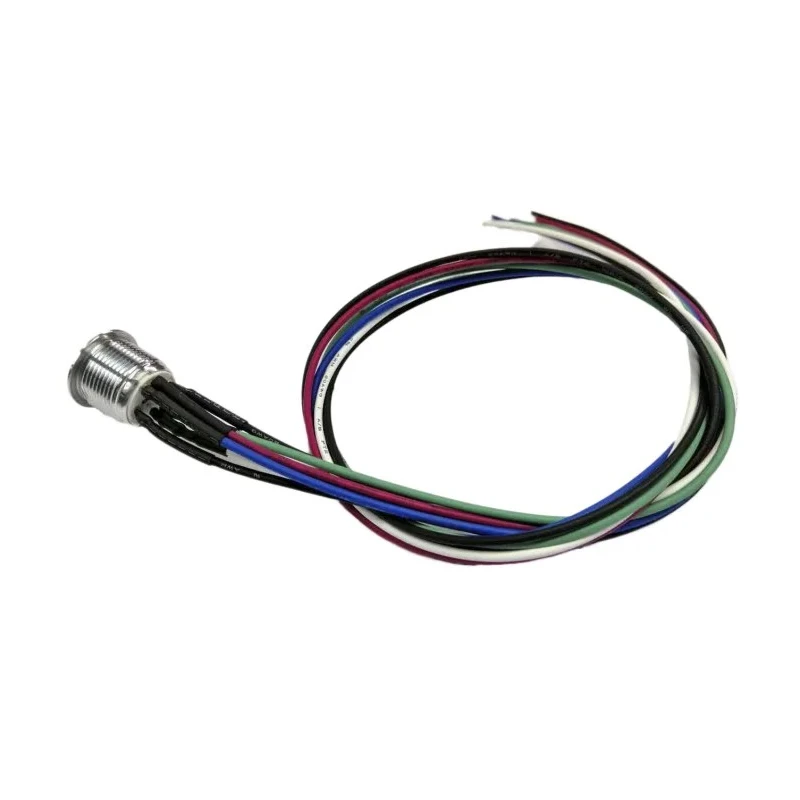

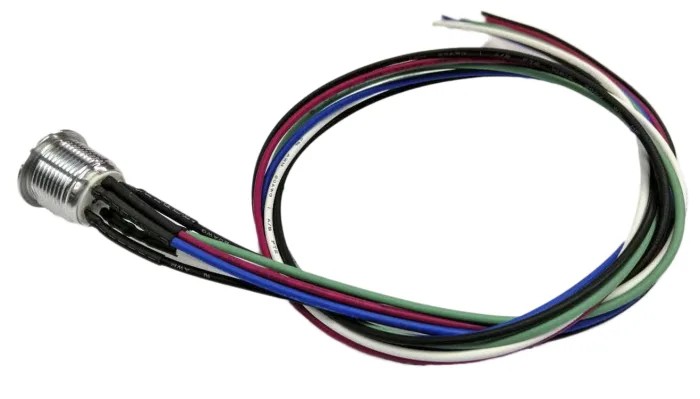

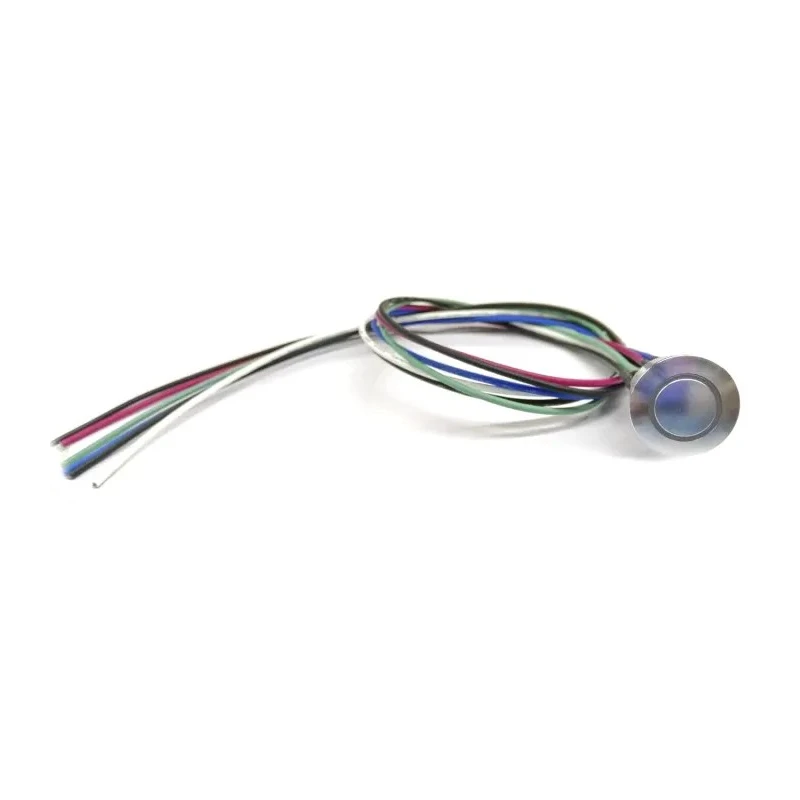

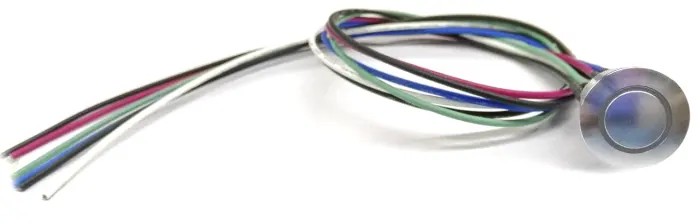

RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout SPST RGB LED IP67 36 V dc 175-9373

RS PRO 175-9373 Illuminated Momentary Push Button Switch is a high-quality panel-mounted switch designed with a 16 mm cutout size. It features a momentary switch operation combined with an SPST contact configuration, making it ideal for reliable industrial control applications. The switch is equipped with RGB LED illumination in blue, green, and red colors, offering clear operational status visibility.

This Push Button Switch is rated IP67, ensuring robust protection against dust and water ingress, which makes it suitable for demanding environments such as industrial controls, medical equipment, security monitoring devices, vehicle peripherals, audio-visual systems, and energy storage equipment. The round actuator style enhances usability and durability in frequent operation scenarios.

The switch supports a contact DC voltage rating of 36 V dc and a switch contact current rating of 2 A, performing reliably within a temperature range of -20°C to 70°C. It complies with UL 94 V-0 and UL 94 V-2 flame retardancy standards.

The RS PRO metal switch design offers advantages such as lightweight yet strong build quality, corrosion resistance, and efficient heat dissipation, suitable for vandal-resistant installations and public settings. Various size options and features are available within the MPB series to match different industrial and commercial requirements.

Designed for panel mounting with a 16 mm cutout size for easy installation. Offers momentary switch operation suitable for various control applications. Equipped with RGB LED illumination in blue, green, and red colors for clear indication.

Features a SPST contact configuration with wire terminals for reliable connections. Rated IP67 for high protection against dust and water ingress. Operates at a contact DC voltage of 36 V dc and switch contact current of 2 A.

Round actuator style ensures ergonomic use and durability. Temperature range from -20°C to 70°C suitable for industrial environments. Complies with UL 94 V-0 and UL 94 V-2 standards for flame retardancy. Durable metal construction with corrosion resistance and heat dissipation advantages.

This product is ideal for industrial automation, manufacturing systems, security monitoring, and medical instrumentation setups that require reliable switch control and illumination. For comprehensive range and additional product support, explore the RS PRO collection on EnvMart.
