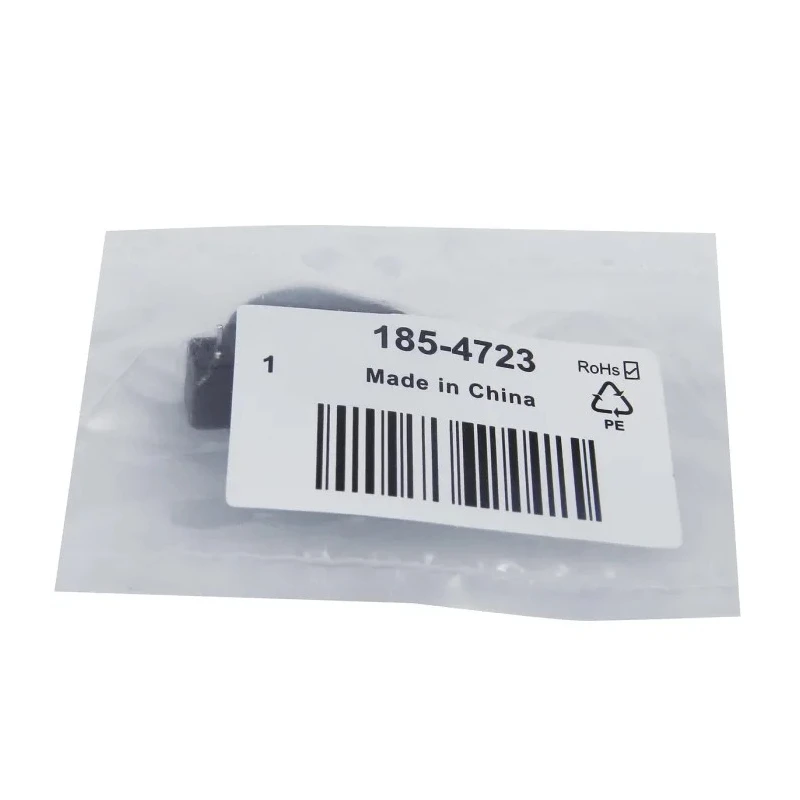

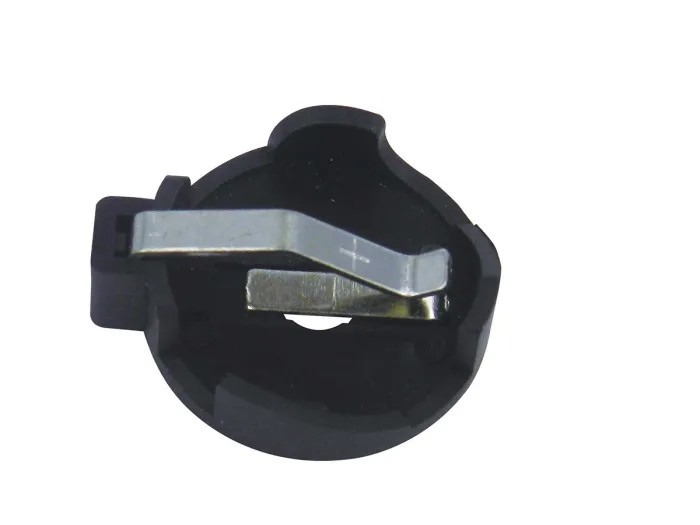

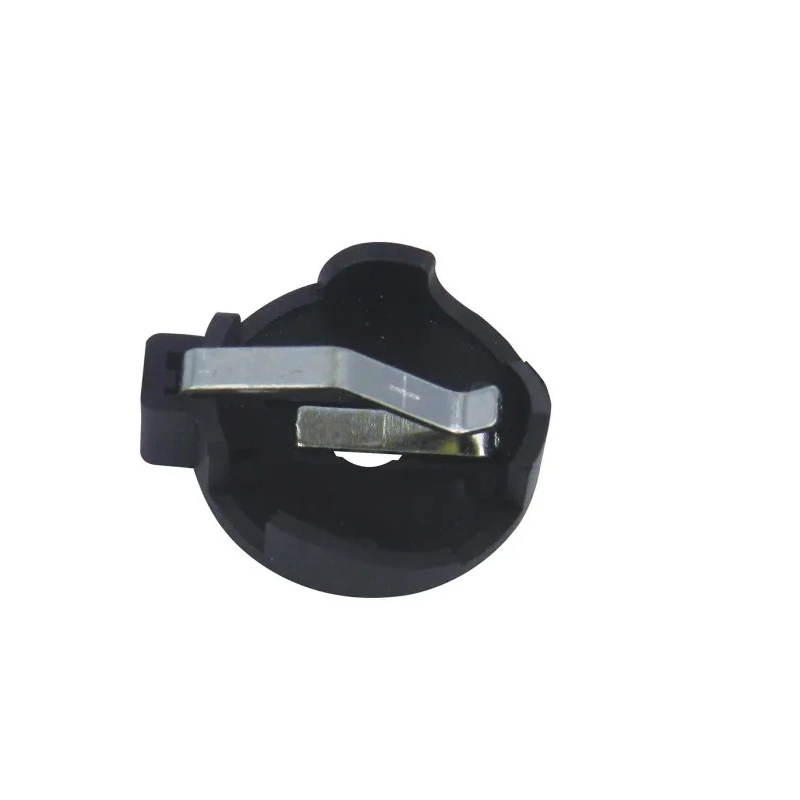

RS PRO CR2032 Battery Holder Surface Mount PCB Mount Type Polybutylene Terephthalate Body 250V 2A Current CR2032
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 20.5mm |
| Brand | RS PRO |
| Material | PBT +30%GF |
| Body Material | Polybutylene Terephthalate |
| Height | 7.1mm |
| Humidity | 40°C |
| Length | 26mm |
| Model | CR2032 |
| Width | 23mm |
| Mount Type | PCB |
| Series | RS PRO |
| Number of Cells | 2 |
| Termination Type | Surface Mount |
| Insulation resistance | 500megaohms |
| Sub Type | Battery Holder |
| Compatible Battery Size | CR2032 |
| Contact Resistance | 30milliohms maximum |
Key Features
- The holder is made from PBT material with 30% glass fibre for enhanced strength.
- It has a compact size with dimensions 26mm length, 23mm width, and 7.1mm height.
- The termination type is surface mount ensuring easy PCB integration.
- Electrodes are made from 0.6mm phosphor bronze, tin plated over nickel for reliable contact.
- Operating temperature ranges from -55°C to 85°C suitable for varied environments.
- Contact resistance is low with a maximum of 30 milliohms ensuring efficient electrical connection.
- Insulation resistance is high at 500 megaohms for safe operation.
- The product is UL 94V0 approved enhancing safety.
Product Description
RS PRO CR2032 Battery Holder Surface Mount is designed for reliable and durable mounting of CR2032 batteries onto PCBs. Manufactured with a robust Polybutylene Terephthalate (PBT) body enhanced with 30% glass fibre, this battery holder delivers mechanical strength and excellent insulation properties.
This surface mount type holder features phosphor bronze electrodes, 0.6mm thick, tin plated over nickel to ensure dependable electrical contact with minimal resistance capped at 30 milliohms. It withstands operating temperatures between -55°C and 85°C, making it suitable for a wide range of industrial and commercial applications.
The compact physical dimensions of 26mm length, 23mm width, 7.1mm height, and 20.5mm diameter accommodate standard CR2032 batteries with 2 cells. It supports a voltage rating of 250 volts AC/DC and a maximum current rating of 2 amps, ensuring safe power delivery in electronic assemblies.
High insulation resistance of 500 megaohms ensures safety and reliability under electrical stress. The design conforms to UL 94V0 flammability standards indicating excellent fire-resistant properties.
Durable PBT +30% glass fibre construction. Surface mount termination for PCB integration. Phosphor bronze electrode contacts tin plated over nickel. Wide operating temperature range from -55°C to 85°C. Low contact resistance of maximum 30 milliohms ensuring effective conductivity.
High insulation resistance of 500 megaohms for safety. AC/DC voltage rating up to 250V and current rating up to 2A. Compact dimensions accommodating CR2032 size batteries with 2 cells. Explore RS PRO products at EnvMart for quality Battery Holders and complementary electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this battery holder are 26mm in length, 23mm in width, and 7.1mm in height.
It is designed to accommodate standard CR2032 batteries, specifically with 2 cells.
The maximum current rating is 2 amps, ensuring safe power delivery in electronic assemblies.
This model has a voltage rating of 250 volts AC/DC.
The holder is made from Polybutylene Terephthalate (PBT) with 30% glass fibre for enhanced strength.
The contact resistance is a maximum of 30 milliohms, ensuring efficient electrical connection.
It features a high insulation resistance of 500 megaohms, ensuring safe operation under electrical stress.
The operating temperature range is from -55°C to 85°C, making it suitable for varied environments.
This model features a surface mount termination type, ensuring easy PCB integration.
The country of origin is China.
The electrodes are made from 0.6mm thick phosphor bronze, tin plated over nickel to ensure reliable contact.
It conforms to UL 94V0 flammability standards, indicating excellent fire-resistant properties.
