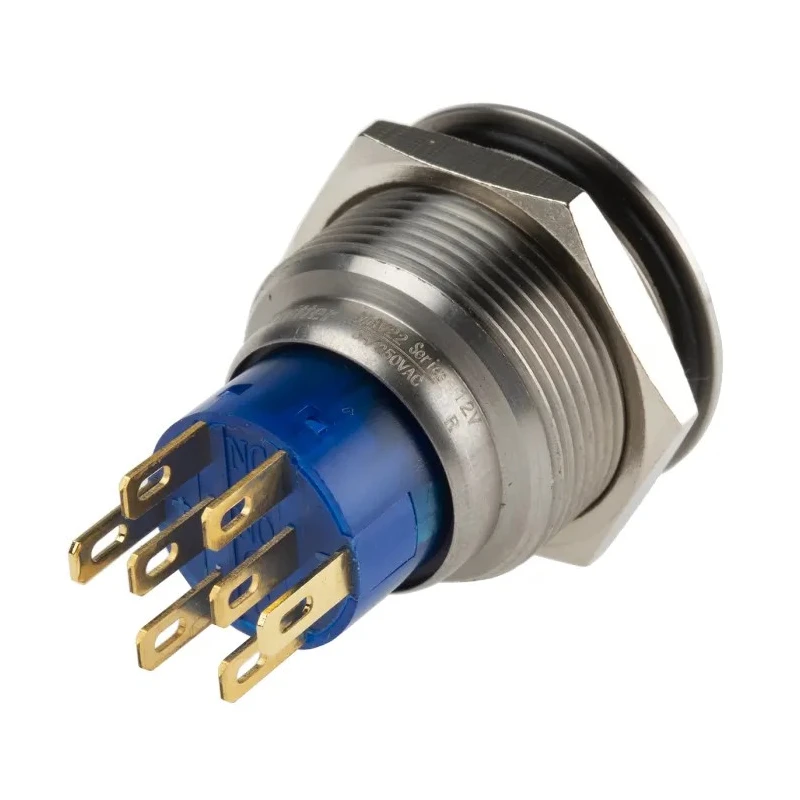

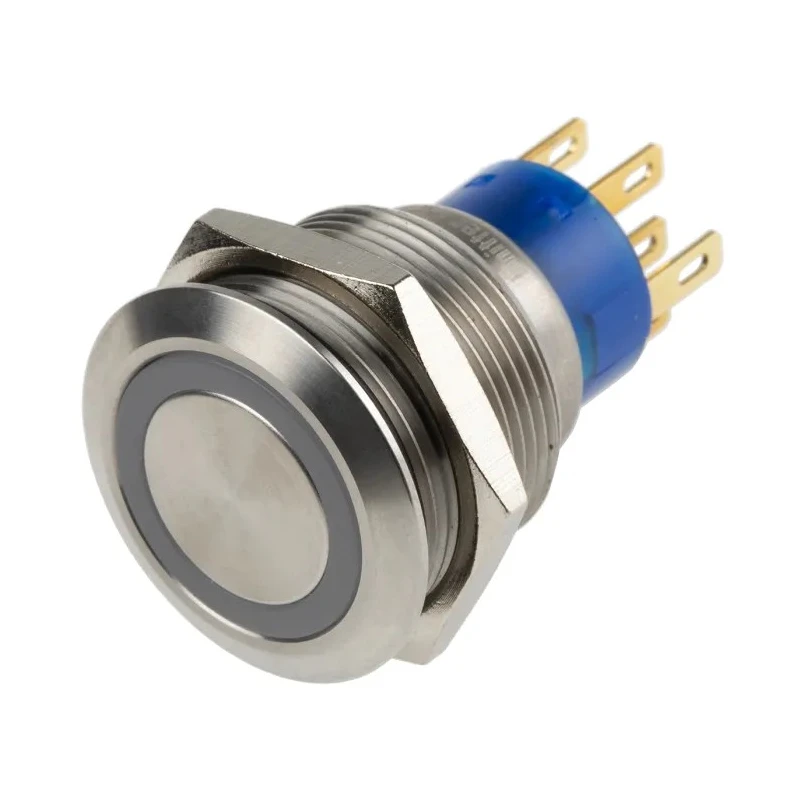

KNITTER-SWITCH Illuminated Vandal Proof Momentary Push Button Switch Panel Mount 22.2 mm Cutout SPDT Red MAV22A0F20E-312-JR
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | MAV22A0F20E-312-JR |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MAV |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | UL 94 V-0 |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver-colored round actuator suitable for panel mounting.
- It provides momentary switch operation with On-Off switch configuration.
- IP67 rated for dust-tight and water protection ensuring robust performance in harsh environments.
- Equipped with a red LED illumination at 12V to indicate status visually.
- Contact ratings include 3A current, 250V AC and 250V DC contact voltage for versatile usage.
- Constructed with stainless steel and a ring shape lens style for vandal-proof resistance.
- Solder lug terminals facilitate easy and secure wiring connections.
- Operating temperature range spans -20°C to +55°C ensuring reliable use under various conditions.
Product Description
KNITTER-SWITCH MAV22A0F20E-312-JR Illuminated Vandal Proof Momentary Push Button Switch offers superior durability and visual feedback for panel-mounted applications requiring high reliability and resistance to vandalism.
The 22.2 mm cutout size makes it compatible with standard industrial panels while the single-pole double-throw (SPDT) contacts support versatile control configurations. The silver round actuator is both ergonomic and robust for frequent user interaction.
Illumination is provided by a red LED operating at 12V to clearly signal the switch status. The switch construction incorporates stainless steel with a ring-shaped lens ensuring vandal-proof protection and longevity even in demanding environments.
IP67 rated protection guards against dust ingress and water immersion making it suitable for outdoor and harsh industrial settings. Solder lug terminals provide secure and straightforward installation.
This push button switch can operate safely within the temperature range of -20°C to +55°C and supports contact currents up to 3A at 250V AC or DC, enhancing its versatility across multiple applications.
The silver actuator ensures a robust and visible switch interface. Momentary switching offers precise control with On-Off configuration. High IP67 rating safeguards reliable performance in challenging conditions. Red LED illumination improves operational clarity and safety.
Supports 3A contact current and 250V AC/DC voltages for diverse use cases. Stainless steel and vandal-proof design maximize durability. Solder lug terminals facilitate secure electrical connections. Wide temperature operation range enables reliable performance across environments.
Compliance to UL 94 V-0 standard guarantees flame retardance for enhanced safety.
This switch is ideally suited for industrial automation, manufacturing control panels, electrical machinery, and outdoor equipment control, where robust, illuminated, vandal-resistant push buttons are essential.
Explore a wide range of panel switches and push button switch solutions in the Electronics & Electricals section of EnvMart for all your automation and control needs.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole double-throw (SPDT) contact configuration, allowing for versatile control options in various applications.
The required panel cutout size for this switch is 22.2 mm, making it compatible with standard industrial panels.
It supports a contact current of 3A and can handle voltages of 250V AC and 250V DC, providing versatility for different electrical applications.
This unit has an IP67 rating, ensuring it is dust-tight and protected against water immersion, suitable for harsh environments.
It is equipped with solder lug terminals, which facilitate secure and straightforward wiring connections during installation.
The switch operates safely within a temperature range of -20°C to +55°C, ensuring reliable performance in various conditions.
This model is constructed with stainless steel and features a round actuator, providing vandal-proof resistance and durability.
It features a red LED illumination that operates at 12V, providing a clear visual indication of the switch status.
It complies with the UL 94 V-0 standard, which guarantees flame retardance for enhanced safety in its applications.
The actuator style is round, designed for ergonomic use and frequent interaction in panel-mounted applications.
This switch is suitable for industrial automation, manufacturing control panels, electrical machinery, and outdoor equipment control, where robust and illuminated push buttons are essential.
This switch operates as a momentary switch with an On-Off configuration, allowing for precise control in various applications.
