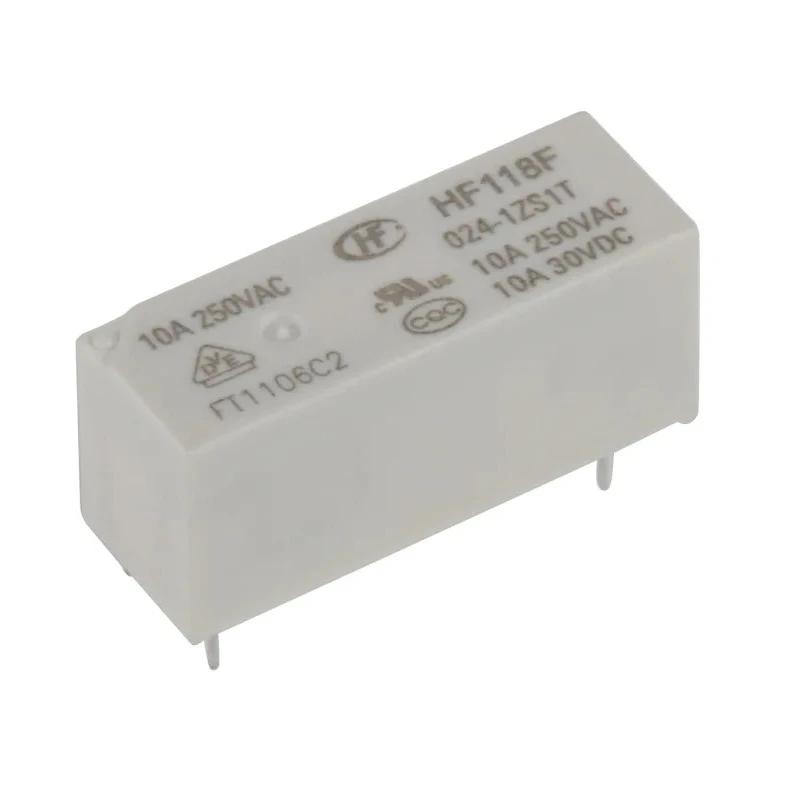

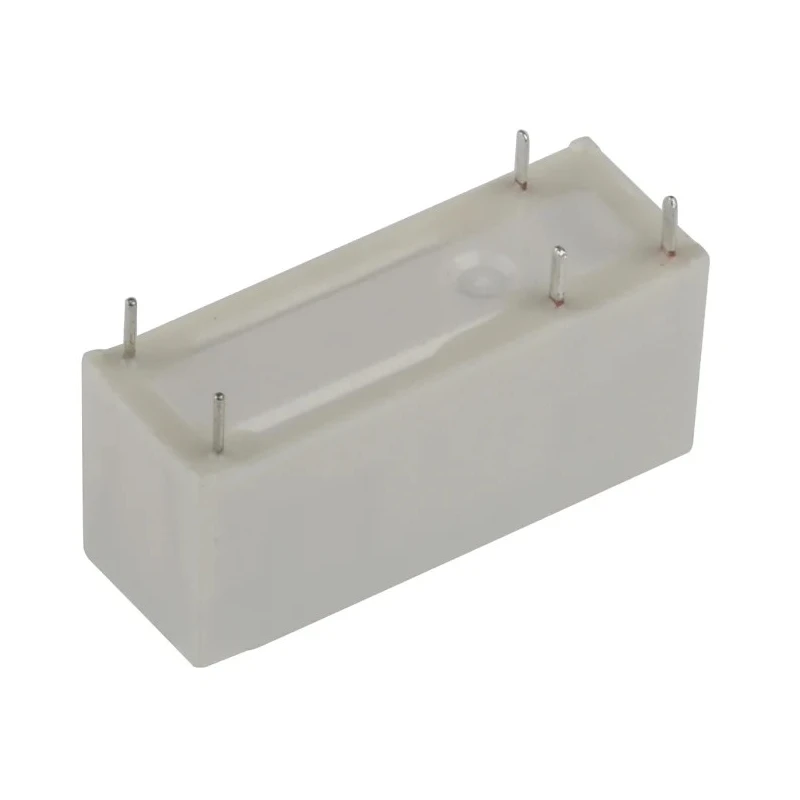

RS PRO PCB Power Relay 24V DC Coil 10A Switching Current SPDT 476-775

RS PRO 476-775 PCB Power Relay is a high-performance, non-latching relay designed for reliable switching in electronic circuits requiring up to 10A current. Featuring a 24V DC coil and SPDT contact configuration, this relay is ideal for PCB mounting applications.

The compact, low-profile relay measures 28.5 mm in length, 10.1 mm in width, and 12.5 mm in height, making it suitable for efficient space utilization on circuit boards. Its silver alloy contacts ensure excellent electrical conductivity and long operational life.

With a coil power consumption of 290 mW and coil resistance of 2.4 kΩ, the relay efficiently controls circuits with minimal energy consumption. It supports switching voltages up to 125V DC and 440V AC and a maximum switching power of 2.5 kVA AC or 300 W DC, suited for industrial machinery, automotive controls, and home automation systems.

The relay operates reliably in extreme temperatures, ranging from -40°C to 85°C, and withstands mechanical and electrical cycles of up to 10 million and 100,000 respectively, ensuring durability in demanding environments.

Its through-hole solder terminal type facilitates secure PCB mounting and electrical connection. RoHS compliance assures environmentally responsible manufacturing.

The relay is designed with washproof construction, allowing safe cleaning with a damp cloth, and is protected against high voltage surges up to 10 kV to safeguard connected equipment.

This component is especially suitable for automotive equipment, industrial machines, and various electrical switching applications requiring robust and compact relay solutions. This relay operates with a 24V DC coil voltage and has a coil power consumption of 290 mW.

It features a single-pole, double-throw (SPDT) contact configuration with silver alloy contacts. Designed for PCB mounting, it has solder terminals and compact dimensions of 28.5mm length, 10.1mm width, and 12.5mm height.

The relay supports switching voltages up to 125V DC and 440V AC with a maximum switching current of 10A. Operating temperature ranges from -40°C to 85°C, suitable for various industrial and automotive applications. It has a coil resistance of approximately 2.4 kΩ and contact resistance of 100 mΩ, ensuring reliable switching performance.

The product is RoHS compliant and manufactured in China, weighing approximately 8 grams. Its washproof construction allows cleaning with a damp cloth without damaging the relay. Provides protection against voltage surges up to 10 kV for enhanced electrical safety.
