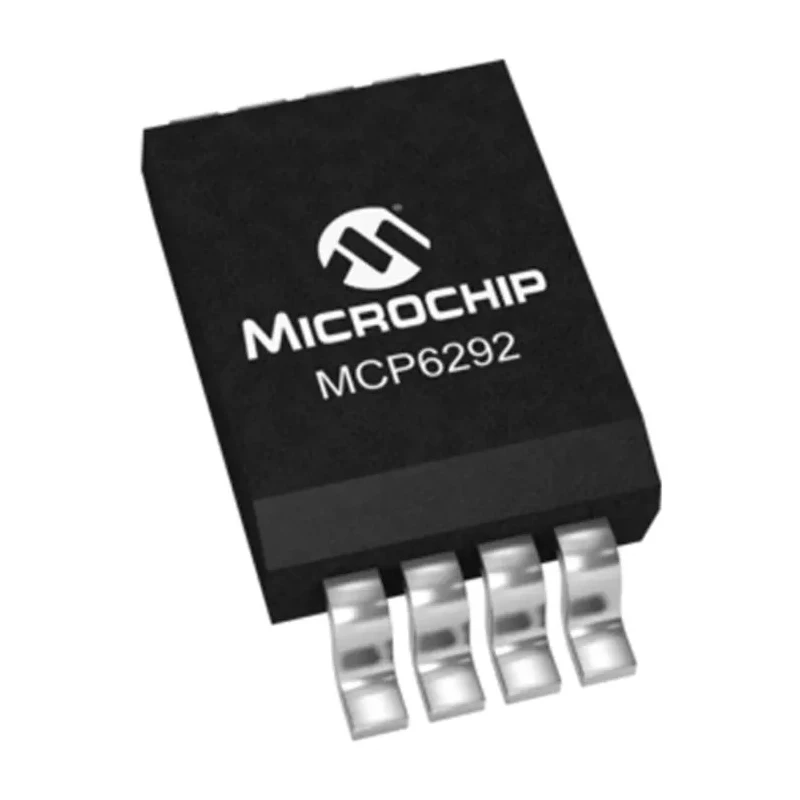

Microchip Operational Amplifier, 10 MHz Gain Bandwidth, 2 Channels, 8-Pin SOIC Package, 2.4-6V MCP6292-E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | MCP6292-E/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6292 |
| Output Current | 25mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 2.4V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 7V/μs |
Key Features
- Operates within a supply voltage range of 2.4V to 6V for versatile applications.
- Features low input bias current of 1 pA, enhancing precision signal processing.
- Maximum operating temperature reaches up to 125°C suitable for harsh environments.
- Input offset voltage is ±5 mV with a high slew rate of 7 V/μs for fast response.
- Compact dimensions of 4.9mm length, 3.9mm width, and 1.5mm height.
- Includes automotive standard AEC-Q100 certification ensuring reliability in automotive applications.
- Output current rating of 25 mA supports driving various loads efficiently.
- The device complies with RoHS standards promoting environmental safety.
Product Description
Microchip MCP6292-E/SN is a high-performance dual operational amplifier designed for precision analog signal processing with a gain bandwidth product of 10 MHz. This device is provided in a surface-mountable 8-pin SOIC package that offers compact size and easy PCB integration.
Operating efficiently over a voltage range of 2.4V to 6V, it suits low voltage battery-powered and general electronics applications. The ultra-low input bias current of 1 pA, combined with a minimal input offset voltage of ±5 mV, enables highly accurate amplification of small signals, making it suitable for sensitive instrumentation tasks.
The MCP6292-E/SN exhibits fast transient response with a slew rate of 7 V/μs and supports an output current of up to 25 mA, providing drive capability for moderate loads. Its operating temperature extends from -40°C to +125°C, ensuring reliable performance in extreme conditions.
Physical dimensions of 4.9mm by 3.9mm by 1.5mm facilitate its use in compact devices. Certified to meet the rigorous automotive AEC-Q100 standard, this operational amplifier is well-suited for demanding automotive and industrial applications.
Compliance with RoHS ensures environmentally friendly manufacturing. Typical applications include industrial controls, instrumentation amplifiers, sensor conditioning, automotive electronics, and other precision analog circuits.
Operates within supply voltage range of 2.4V to 6V. Features very low input bias current of 1 pA. Input offset voltage of ±5 mV for accuracy. Fast slew rate of 7 V/μs for quick signal response. Compact 8-pin SOIC package enables easy mounting.
Certified to automotive AEC-Q100 standard for reliability. Output current capability up to 25 mA. Wide operating temperature ranging from -40°C to +125°C. RoHS compliant to meet environmental standards.
Explore more Microchip Operational Amplifiers and related semiconductor components in the Electronics & Electricals category at EnvMart to support your engineering and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6292-E/SN has a gain bandwidth product of 10 MHz, making it suitable for a variety of precision analog signal processing applications.
This model operates within a supply voltage range of 2.4V to 6V, allowing it to be used in low voltage battery-powered applications.
The output current rating for the MCP6292-E/SN is 25 mA, which supports driving various loads efficiently.
The physical dimensions of this operational amplifier are 4.9 mm in length, 3.9 mm in width, and 1.5 mm in height.
This unit can operate at a maximum temperature of 125°C, making it suitable for harsh environments.
The input bias current for this operational amplifier is very low at 1 pA, enhancing its precision in signal processing.
The input offset voltage is ±5 mV, which contributes to the accuracy of the amplification of small signals.
This operational amplifier has a slew rate of 7 V/μs, allowing for fast response times in signal processing applications.
Yes, it complies with RoHS standards, promoting environmental safety in its manufacturing process.
The MCP6292-E/SN is certified to meet the automotive standard AEC-Q100, ensuring reliability in automotive applications.
This model features a surface mount design, which facilitates easy integration onto PCBs.
Typical applications include industrial controls, instrumentation amplifiers, sensor conditioning, and automotive electronics.
