Sauter TU 80-0.01US Thickness Meter 0.75 mm - 80 mm ±0.005 % Accuracy, 0.01 mm Resolution, LCD Display

Free Delivery in India | Lowest Global Shipping Charges

Sauter TU 80-0.01US Thickness Meter 0.75 mm - 80 mm ±0.005 % Accuracy, 0.01 mm Resolution, LCD Display

Name: Sauter TU 80-0.01US Thickness Meter 0.75 mm - 80 mm ±0.005 % Accuracy, 0.01 mm Resolution, LCD Display
Brand: Sauter
SKU: 317180
Price: 20.22 USD
Availability: InStock



Category Thickness Meter Brand Sauter Condition New

Specifications

Country of Origin	China
Resolution	0.01 mm
Accuracy	±0.005 %
Display Type	LCD
Frequency	7MHz
Brand	Sauter
Dimensions	L x W x H: 132 x 76 x 32 mm
Battery type	AA
Height	32mm
Length	132mm
Model	TU 80-0.01US
Gross Weight	345g
Width	76mm
Includes	Cable, Carrying Case
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Minimum Measurement	0.75 mm
Maximum Measurement	80 mm
Standards/ApprovalsBS EN 61340-5-1	2007, ANSI/ESD S20.20:2014

Key Features

Provides digital material thickness measurement with RS 232C interface.
Includes external measuring head with 1 m cable for easy access to measurement points.
Measurement range unit switchable between millimeters and inches.
Equipped with auto-power-off to conserve battery life.
Measuring head diameter of 10 mm operating at 5 MHz frequency.
Sound velocity adjustable from 1000 to 9999 m/s for accurate material thickness readings.
Data memory stores 20 files, each containing up to 100 measurements.
Suitable for measuring thickness of metals, glass, plastics, and inspecting corrosion and wear.

Product Description

Sauter TU 80-0.01US Thickness Meter is a high-precision digital material thickness measurement device designed for industrial applications requiring accurate and reliable thickness readings from 0.75 mm up to 80 mm with ±0.005 % accuracy and 0.01 mm resolution. It features an LCD display and operates with AA batteries for portability and convenience.

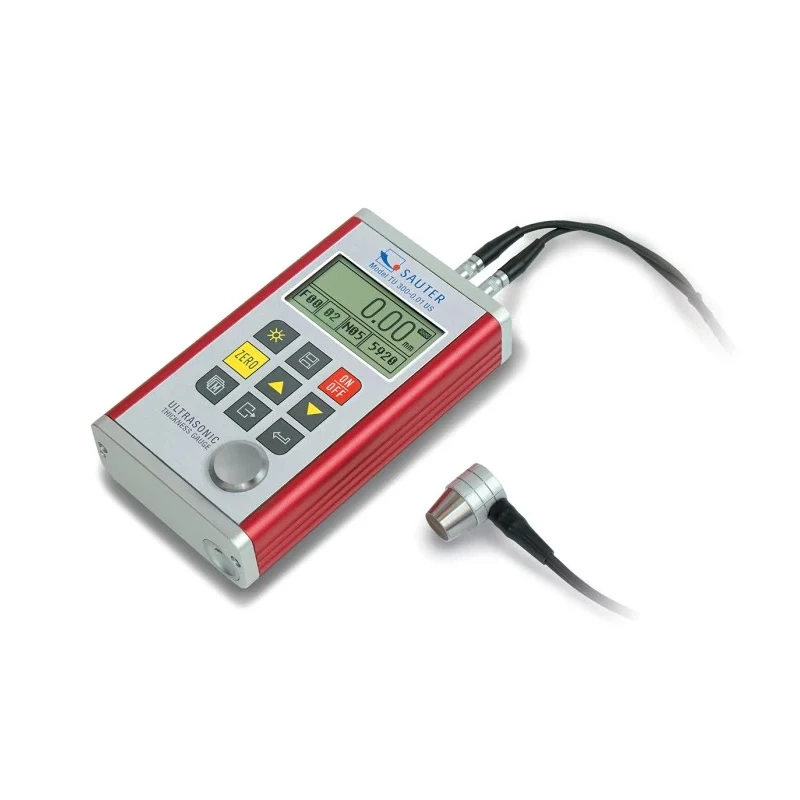

The meter includes an external measuring head connected by a 1-meter cable, enabling easy access to hard-to-reach measurement points. Its measurement range can be switched between millimeters and inches, allowing flexible use across different measurement standards. The measuring head has a diameter of 10 mm and operates at a frequency of 5 MHz, optimized for testing various hard materials including metal, glass, and plastic.

The device employs an adjustable sound velocity setting ranging from 1000 m/s to 9999 m/s, to ensure precise thickness determination tailored to specific material properties. Data memory supports storage of up to 20 files with 100 measured values each, facilitating thorough analysis and record-keeping. The thickness meter also includes an auto-power-off function to extend battery life during intermittent use.

This thickness meter complies with standards BS EN 61340-5-1:2007 and ANSI/ESD S20.20:2014, making it suitable for use in engineering, shipbuilding, bridge construction, power plants, and oil industry inspection tasks such as corrosion and wear assessment of pressure vessels, kettles, and tanks.

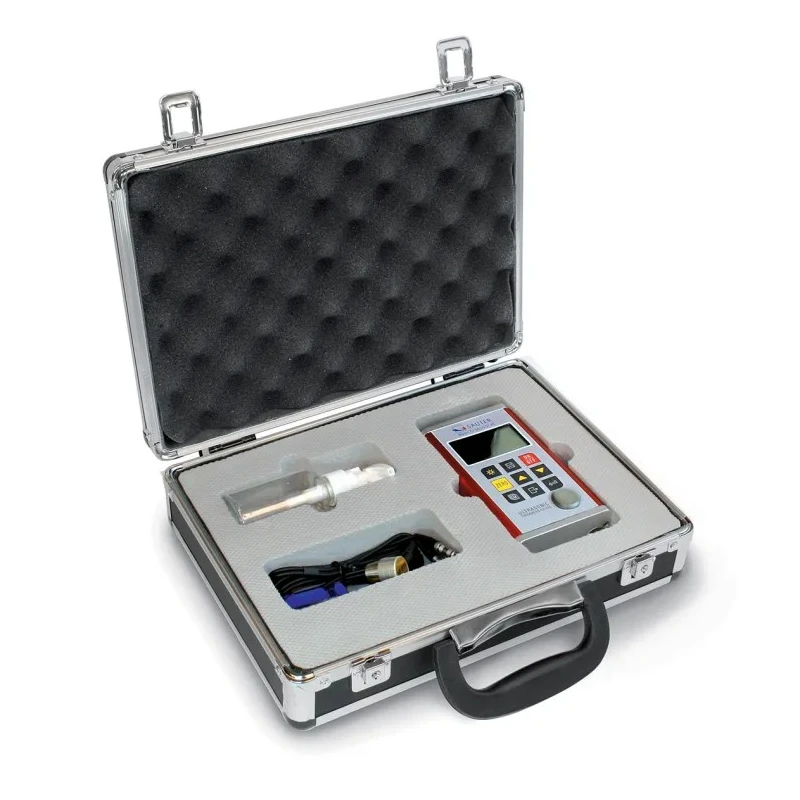

Offers high accuracy and resolution necessary for precise thickness inspections. Features digital data storage for effective measurement management. Designed with portability and ease of use for field applications. Includes essential accessories: calibration tool, cable, carrying case, and batteries.

Constructed for reliable performance over a wide operating temperature range (-20°C to 60°C).

This product is ideal for industrial, laboratory, and field use in diverse sectors requiring thickness measurement and material integrity verification. Browse EnvMart for more Thickness Meters and related measuring instruments from trusted brands like Sauter.
