Metravi Ultrasonic Thickness Measurement UTG-01 image-1

Free Delivery in India | Lowest Global Shipping Charges

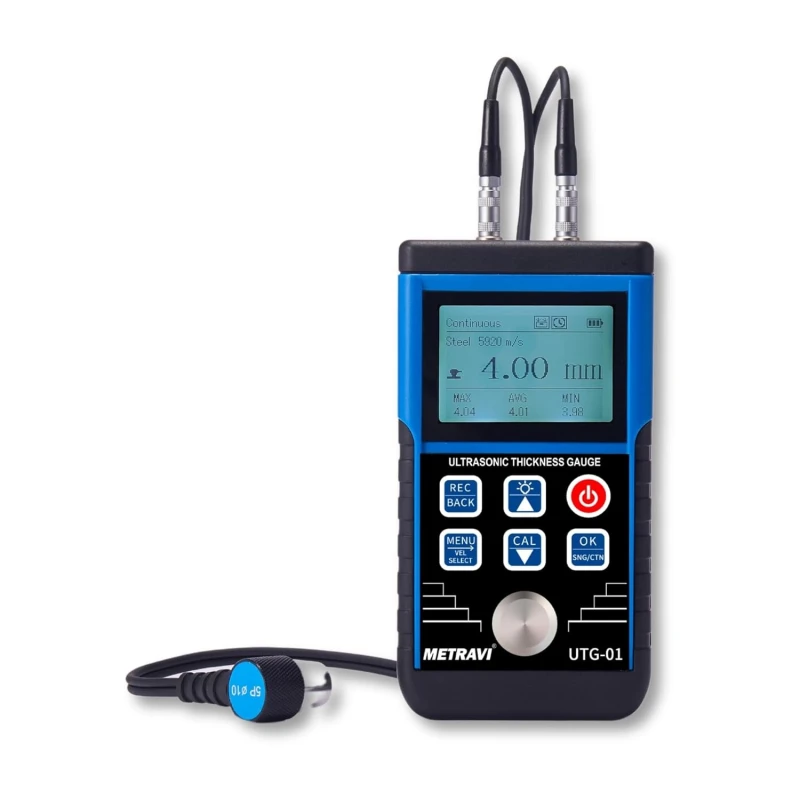

Metravi Ultrasonic Thickness Measurement UTG-01

Name: Metravi Ultrasonic Thickness Measurement UTG-01
Brand: Metravi
SKU: ADSWM
Price: 155.08 USD
Availability: InStock



SKU ADSWM Category Thickness Meter Brand Metravi Condition New

Specifications

Country of Origin	India
Package Contents	Ultrasonic Thickness Gauge / Ultrasonic Probe (5MHzφ10mm) / 50ml Coupling Agent / Batteries / User Manual / Hard Carrying Case
Resolution	0.01mm (1–99mm)/0.1mm (≥100mm)
Accuracy	H Less than 10mm ±0.05mm/10–99mm ≤±(0.01+H/200)mm/Greater than 100mm ≤±(0.1+H/100)mm (Hequal tomaterial thickness)
Display	4-digit backlit LCD
Measuring range	1.0–350mm (45# steel)
Brand	Metravi
Power Supply	3×1.5V AA alkaline batteries (≈20h life)
Operating Temperature	0–40°C (probe 0–60°C)
Dimensions	72×135×36mm
Model	UTG-01
Auto Power Off	Yes
Low Battery Indication	YES
Data logging	10 measurements
Sound Velocity Range	1000–9999m/s
Operation Frequency	5MHz/2.5MHz (2.5MHz with special probe)
Minimum Tube Curvature Measurement	Ø20×3mm (45# steel)
Calibration Test Block	Built-in 4.00mm block ±0.05mm tolerance
Auto Linear Compensation	Yes

Key Features

Using single chip micro processor technology, resolution is up to 0.01mm.
Stable measurement and fast reaction speed.
Continuous and single measurement switching function.
Sound velocity measurement function.
Preset fixed sound velocity value of common materials, which can be quickly selected and measured according to the material to be measured.
Probe port automatically identifies the probe transmitting and receiving signals, and the user can directly insert the probe into the host when replacing it.
10 units data storage.
Alarm function, user can customize the upper and lower limit alarm values and buzzer alarm sounds if the measurement result is outside the set limits.

Product Description

Metravi 1–350 mm Ultrasonic Thickness Measurement Gauge, UTG-01 is designed for accurate non-destructive thickness measurement of metal and solid materials where access is available from one side only. It measures material thickness from 1.0 mm up to 350 mm with fine resolution, making it suitable for pipes, tanks, pressure vessels, and structural components. The backlit LCD display ensures clear visibility of readings, while reliable accuracy and automatic linear compensation support consistent measurement results. Powered by AA batteries with auto power-off and low battery indication, it is convenient for extended field use. Supplied with an ultrasonic probe, coupling agent, and carrying case, the Metravi UTG-01 is well suited for maintenance inspection, corrosion monitoring, quality control, and industrial testing applications where dependable ultrasonic thickness measurement is required.

Available on EnvMart, these Thickness Meters are designed for precise measurement of material thickness. Metravi Thickness Meters provide exceptional accuracy and reliability, making them ideal for industrial, laboratory, and quality control applications.
