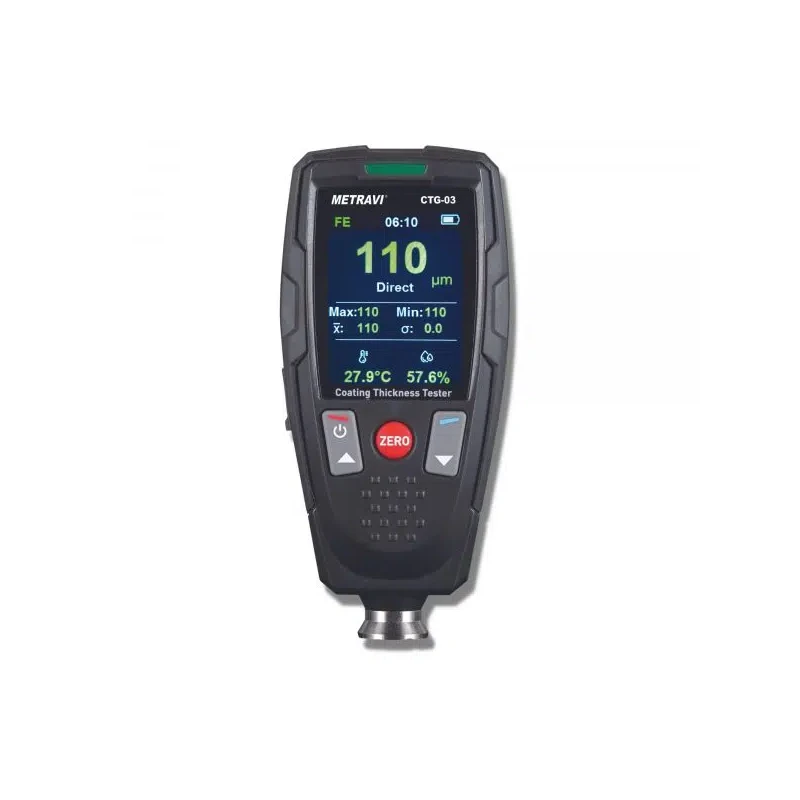

Metravi Coating Thickness Gauge with USB Interface CTG-03
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi CTG-03 Coating Thickness Gauge with USB Interface / Gauge/Meter / 2 × AA 1.5V batteries / Carrying case / User manual / Steel and aluminum substrates / USB cable / Software CD |
| Accuracy | Low range precision 0.1μm/±2%±2μm |
| Display | 2.4" TFT color 4-way auto-rotating display with 10-level adjustable backlight |
| Measuring range | 0–2000μm |
| Brand | Metravi |
| Power | 2×1.5V AA alkaline batteries |
| Interface | USB for PC analysis software |
| Calibration | Self-calibratable basic one-point and SSPC mode |
| Model | CTG-03 |
| Test Modes | Stability test/continuous test |
| Data logging | 50 sets |
| Working Modes | Direct/group/SSPC |
| Auto-Rotation Screen | 4-way (0°/90°/180°/360°) |
| Additional Measurements | Temperature/humidity/dew point |
| Battery Saving | Auto power-off time setting |
| Alarms & Indications | Beeper/backlight flash/3-color LED indication |
Key Features
- 2.4” TFT colour LCD display
- Temperature, Humidity and Dew Point temperature measurements
- Auto-rotation Screen: 0°, 90°, 180°, 270°
- Stability test
- Continuous test
- Set auto power-off time
- SSPC mode
- Warning with beeper and backlight flash, 3-Colour LED indication
- Menu operation system
- Working modes: DIRECT, GROUP and SSPC
- AVG, MAX, MIN, Stand and Deviation (S.DEV) display
- Basic, one-point and SSPC mode calibration
- Low battery, error indications
- USB interface for PC analysis software
- 10 levels of adjustable LCD backlight brightness
Product Description
Metravi 0–2000 µm Coating Thickness Gauge with USB Interface, CTG-03 is designed for precise coating thickness measurement and advanced data analysis on painted and coated surfaces. It measures thickness up to 2000 µm with fine resolution and reliable accuracy, making it suitable for quality inspection, surface finishing control, and compliance testing. The large color display with auto-rotation ensures clear visibility from any angle, while multiple test modes support both spot and continuous measurement. With built-in data logging and USB connectivity for PC-based analysis, it allows easy storage and review of measurement results. Powered by AA batteries and supplied with calibration and analysis accessories, the Metravi CTG-03 is well suited for manufacturing, automotive inspection, maintenance, and quality control applications where accurate and documented coating thickness measurement is required.
Available on EnvMart, these Thickness Meters are designed for precise measurement of material thickness. Metravi Thickness Meters provide exceptional accuracy and reliability, making them ideal for industrial, laboratory, and quality control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Metravi CTG-03 has a measuring range of 0 to 2000 µm for coating thickness.
It offers low range precision of 0.1μm with an accuracy of ±2% ±2μm.
This model features a 2.4" TFT color display that supports 4-way auto-rotation and has 10 levels of adjustable backlight brightness.
It is powered by 2 AA 1.5V alkaline batteries.
The CTG-03 supports stability test and continuous test modes for versatile measurement options.
Yes, it can log up to 50 sets of measurement data for later review.
It features self-calibratable basic one-point and SSPC mode calibration.
In addition to coating thickness, it can also measure temperature, humidity, and dew point.
The package includes the gauge, 2 AA batteries, a carrying case, a user manual, steel and aluminum substrates, a USB cable, and a software CD.
It features a USB interface for PC analysis software, allowing for easy data transfer and analysis.
The CTG-03 includes a beeper, backlight flash, and 3-color LED indication for various alerts and notifications.
The Metravi CTG-03 is manufactured in India.
