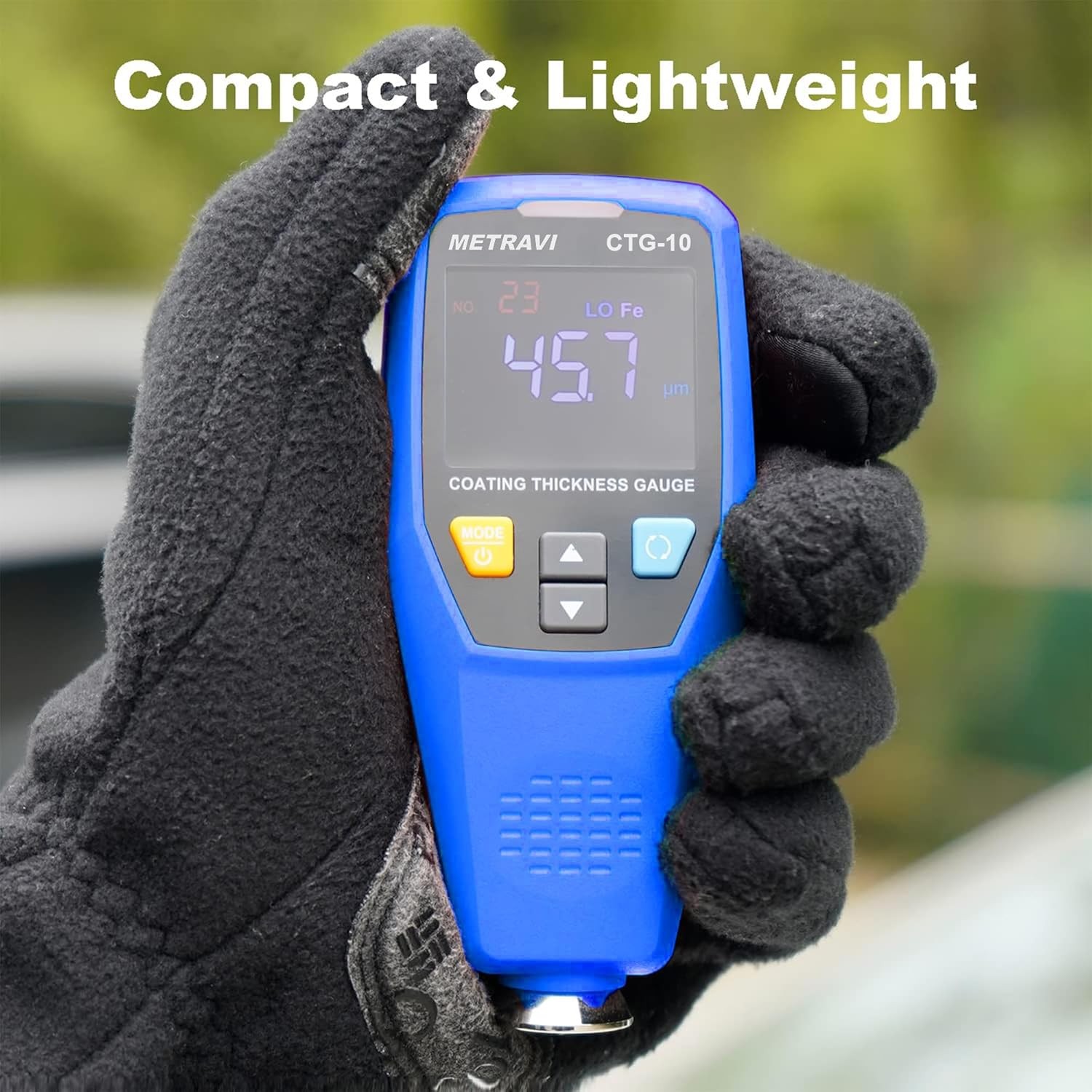

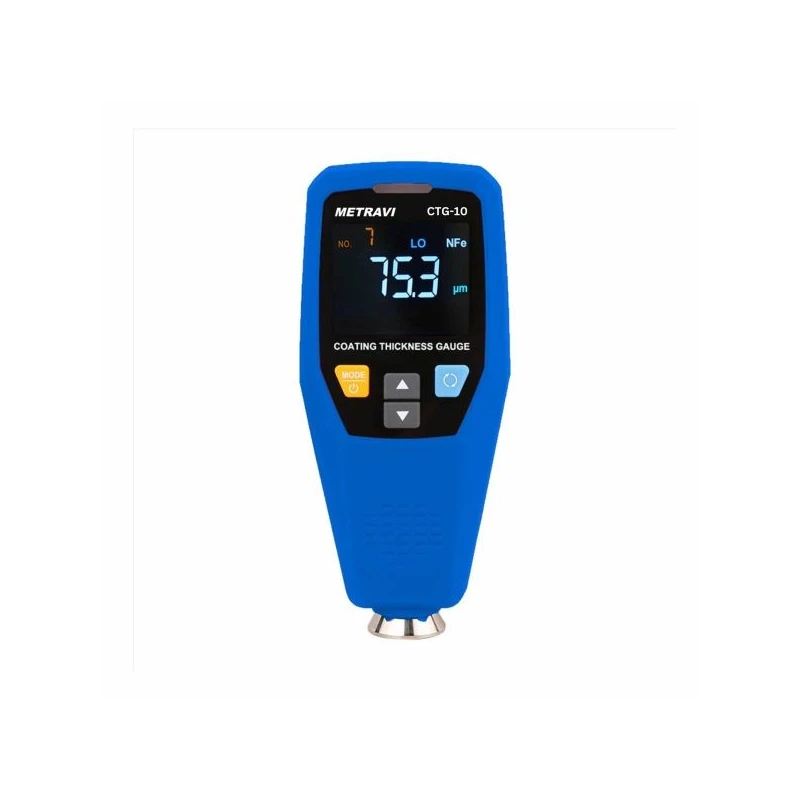

Metravi Elcometer Coating Thickness Gauge CTG-10
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi CTG-10 Coating Thickness Gauge / User Manual / Ferrous Substrate / Non-ferrous Substrate / Protective Cover for Sensor / Standard Coating Thickness Sheets |
| Resolution | 0.1µm/0.01mil |
| Accuracy | ±(3%+1µm)/±(3%+0.04mil) |
| Measurement Method | Single/Continuous |
| Display | EBTN color LCD rotatable |
| Measuring range | Up to 1750µm/68.9mil |
| Brand | Metravi |
| Power | 1.5V AAA×2equal to3V alkaline batteries |
| Dimensions | 117×53×37mm |
| Calibration | User calibratable |
| Model | CTG-10 |
| Sensor Type | Composite Magnetic Induction&Eddy Current |
| Weight | 111g(including batteries) |
| Operating environment | 0–40°C≤80%RH |
| Impact Resistance | Can withstand 1m drop |
| Low Battery Indication | Flashing battery symbol |
| ALARMS | LED&Audio |
| Data logging | Up to 199 sets/groups |
| Storage Environment | -20–60°C≤75%RH. |
| Auto Power-off | After 5min of non-operation |
| Refresh Rate | 0.5s |
| Substrates | Ferrous(Fe)&Non-ferrous(NFe) |
| Min Substrate Thickness | 0.5mm |
| Limit Setting | Available |
| Max/Min/Avg | Available |
| Probe Modes | Auto/Fe/NFe |
Key Features
- Two thickness measurement methods: Magnetic and Eddy Current.
- Automatic identification of the ferrous or non-ferrous substrates.
- High-precision, hard-wearing and stable sensor.
- Single and multi-point calibration methods are adopted to correct the sensor systematic error and ensure the measurement accuracy.
- Colour Light Alarms: indicates the current value attribute (green: qualified; red: below the limit; yellow: above the limit).
- Power on/off and measurement are accompanied by audio indication.
- Rotatable Screen : the content displayed on the screen can be rotated up and down, which is convenient for users to read the measured values from different angles.
- High-capacity memory chip: can store 199 groups of data.
Product Description
The Metravi CTG-10 Elcometer Coating Thickness Gauge is a precise instrument for measuring dry film thickness on ferrous and non-ferrous substrates. This compact and user-friendly gauge offers automatic substrate recognition and delivers accurate results instantly. It is widely used in automotive, marine, manufacturing, and coating industries to ensure quality control and paint uniformity. The CTG-10 features a high-contrast LCD screen, data hold function, and automatic power-off for battery conservation. It supports a wide range of measurement units and has a measurement range that accommodates most standard industrial applications. The rugged body construction ensures durability in tough working conditions, while its ergonomic design supports comfortable one-hand operation. A must-have tool for inspection professionals and quality assurance teams.
Available on EnvMart, these Thickness Meters are designed for precise measurement of material thickness. Metravi Thickness Meters provide exceptional accuracy and reliability, making them ideal for industrial, laboratory, and quality control applications.
