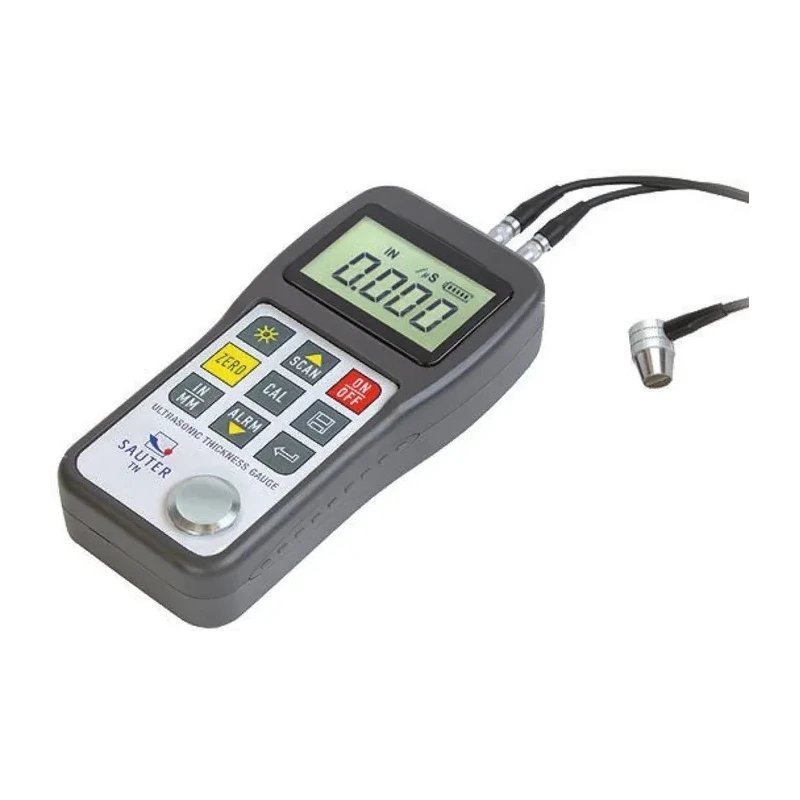

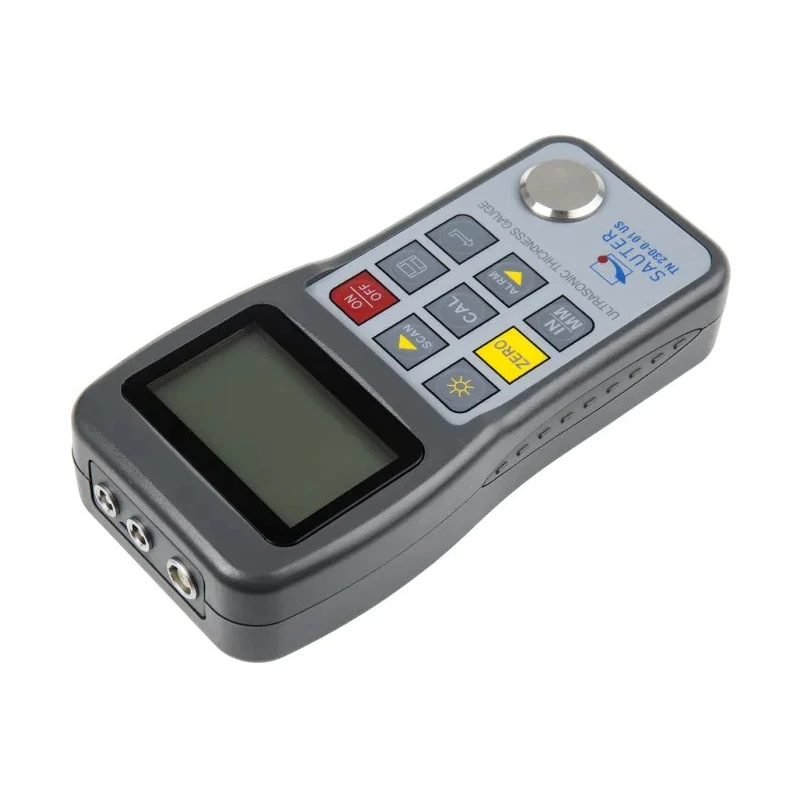

Sauter Digital Ultrasonic Thickness Meter 0.75 mm - 230 mm ±0.5 % Accuracy 0.01 mm Resolution TN 230-0.01US

Sauter TN 230-0.01US is a digital ultrasonic thickness meter designed to measure material thicknesses ranging from 0.75 mm up to 230 mm with a resolution of 0.01 mm and accuracy of ±0.5 %. This device employs ultrasonic SONAR principles to provide reliable, non-destructive thickness measurements on metallic and non-metallic materials.

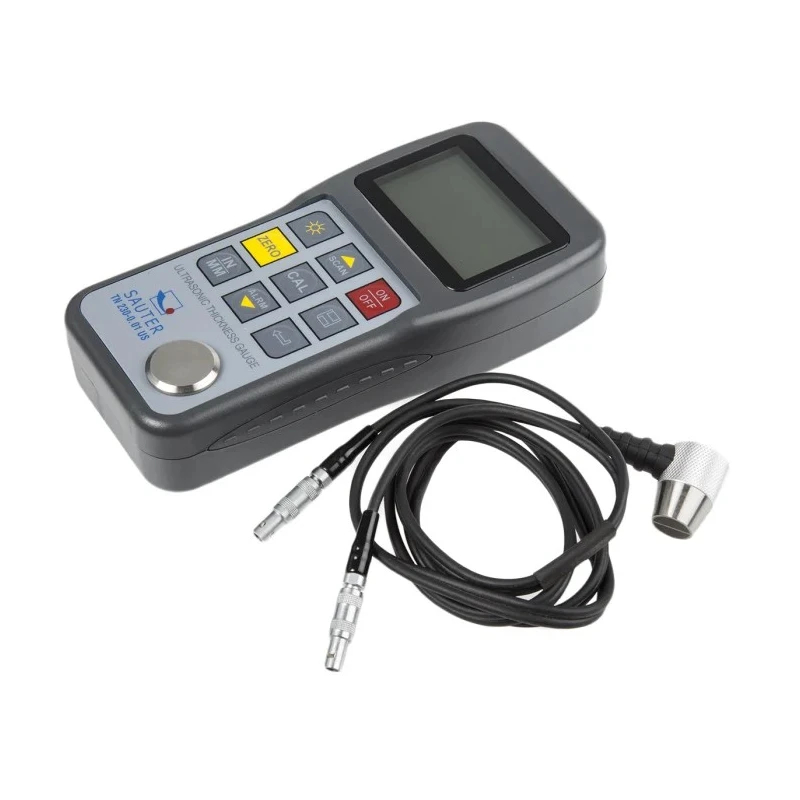

The meter features a clear digital LCD display offering selectable measurement units in millimeters or inches. Its external sensor with a 1-meter cable allows measurements at difficult-to-reach locations, enhancing usability in various industrial settings.

Powered by two AA batteries, the instrument includes an auto power-off function to preserve battery life during inactivity. Operating temperature range spans from -20°C to +60°C, making it suitable for use in diverse environments.

The device operates at a frequency of 5 MHz with a measuring head size of 10 mm and sound velocity adjustment capability between 1000 m/s and 9999 m/s, ensuring versatile application to different materials. Data memory accommodates 20 files each containing 100 measured values, enabling effective data management and analysis.

This model complies with international standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, assuring quality and reliability. Compact and lightweight with dimensions of 150 mm (L) x 74 mm (W) x 32 mm (H) and weighing 245 g, it is easy to handle on-site.

Ideal for industrial sectors such as construction engineering, automotive services, renovation and restoration, as well as paint shops, this ultrasonic thickness meter supports precision thickness measurement needs in laboratory, industrial, manufacturing, and quality control applications.

The Sauter brand offers reliable engineering instruments to monitor and test various parameters. Explore the full range of Thickness Meters and testing instruments at EnvMart for your professional requirements.

Ultrasonic technology ensures precise non-destructive measurements. External sensor with a 1m cable for difficult measurement points. Digital display with selectable units in mm and inches. Auto power-off function to extend battery life.

Data memory storing 20 files with 100 measurements each. Operates between -20°C and 60°C ambient temperature. Compact and lightweight design for easy portability. Certified to ANSI/ESD and BS EN standards for quality assurance.

Applications across construction, automotive, renovation, and paint industries. Powered by AA batteries convenient for field use.
