Sauter Digital Ultrasonic Thickness Meter 1.2 mm - 230 mm ±0.5% Accuracy 0.1 mm Resolution TN 230-0.1US

Free Delivery in India | Lowest Global Shipping Charges

Sauter Digital Ultrasonic Thickness Meter 1.2 mm - 230 mm ±0.5% Accuracy 0.1 mm Resolution TN 230-0.1US

Name: Sauter Digital Ultrasonic Thickness Meter 1.2 mm - 230 mm ±0.5% Accuracy 0.1 mm Resolution TN 230-0.1US
Brand: Sauter
SKU: 183916



Category Thickness Meter Brand Sauter Condition New

Specifications

Country of Origin	China
Resolution	0.1 mm
Accuracy	±0.5 %
Display Type	Digital
Frequency	5MHz
Brand	Sauter
Battery Life	100h
Battery type	AA
Height	32mm
Length	150mm
Model	TN 230-0.1US
Gross Weight	245g
Width	74mm
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Minimum Measurement	1.2 mm
Maximum Measurement	230 mm

Key Features

Provides high accuracy measurement with ±0.5% tolerance.
Offers fine resolution of 0.1 mm for detailed thickness readings.
Equipped with a digital LCD display for clear data visualization.
Includes external sensor with 1 m cable for hard-to-reach locations.
Operates with AA batteries providing approximately 100 hours of usage.
Supporting measurement units in millimeters and inches, switchable as needed.
Features auto power-off function to conserve battery life.
Suitable for diverse metallic and non-metallic material thickness measurement.

Product Description

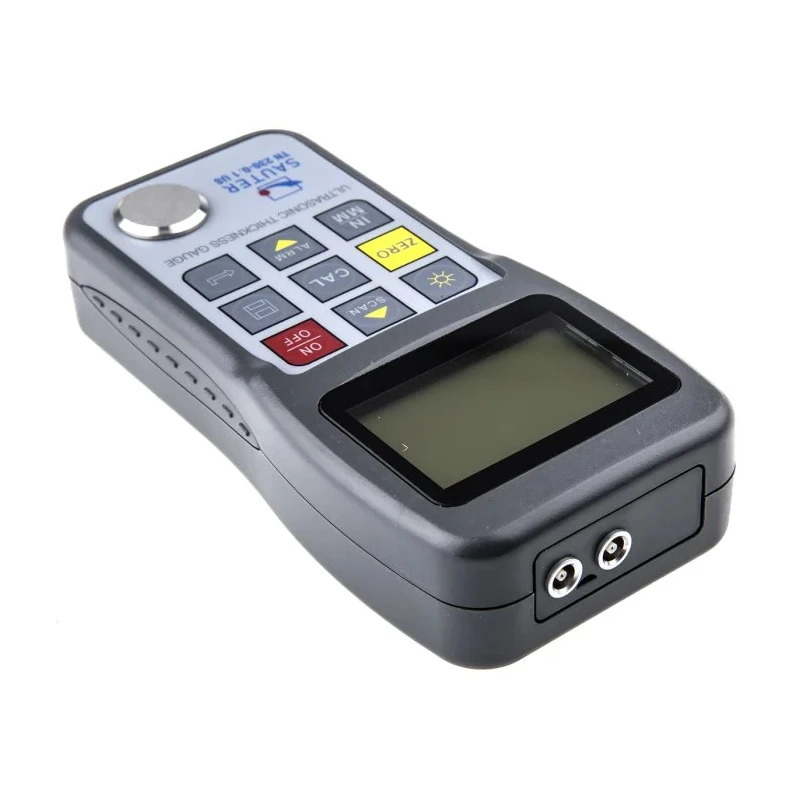

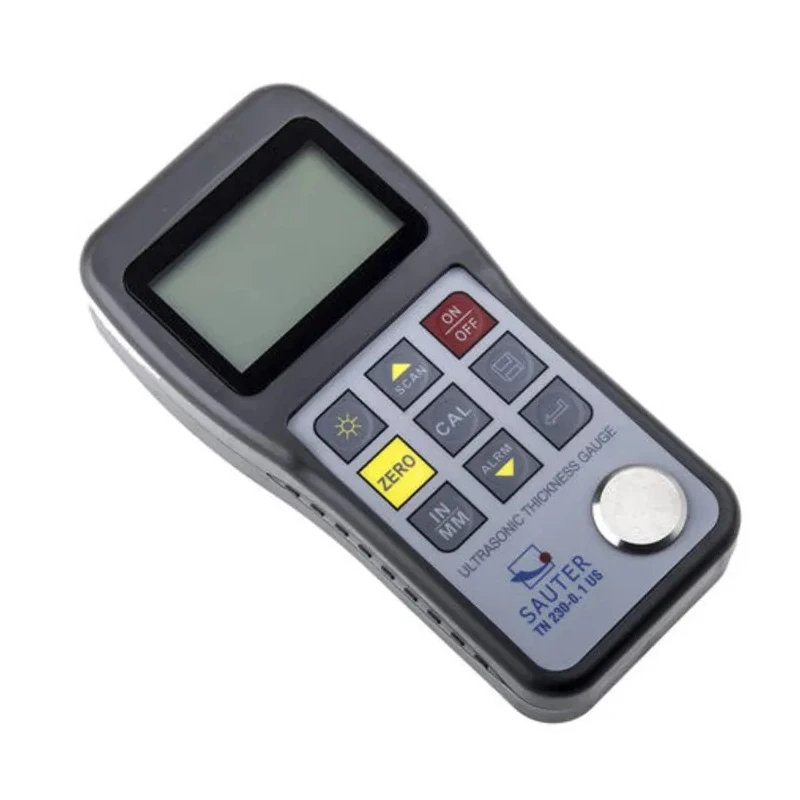

The Sauter TN 230-0.1US is a professional-grade digital ultrasonic thickness meter designed for accurate measurement of material thickness ranging from 1.2 mm to 230 mm with ±0.5% accuracy. Utilizing ultrasonic technology akin to SONAR, it delivers reliable results on both metallic and non-metallic surfaces.

This instrument features a high-resolution digital LCD display with selectable measuring units between millimeters and inches to suit varied user preferences. An external measuring head connected via a 1-meter cable allows users to access difficult-to-reach areas efficiently.

Powered by AA batteries with an approximate battery life of 100 hours, it includes an auto power-off function to extend operational time. The measuring head operates at 5 MHz frequency and accommodates sound velocity ranges from 1000 m/s to 9999 m/s, ensuring versatility across different materials.

Designed to function effectively in extreme working conditions, it supports operating temperatures from -20°C up to 60°C. The compact device dimensions are 150 mm length, 74 mm width, and 32 mm height, with a gross weight of 245 g, making it portable and convenient for onsite measurements.

The instrument meets rigorous standards including ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, affirming its suitability for industrial applications. Typical usages include construction, engineering, paint shops, automotive restoration, and renovation projects.

High-accuracy thickness measurement with ±0.5% tolerance. 0.1 mm resolution digital readings. External sensor with 1 meter cable for accessibility. Auto power-off enhances battery efficiency. Switchable mm/inch measurement units.

Operating temperature range from -20°C to 60°C. Compact dimensions for ease of use and portability. Complies with ANSI and BS EN safety and quality standards.

Choose the Sauter TN 230-0.1US ultrasonic Thickness Meter for versatile, precise, and durable measurement solutions in industrial, laboratory, and field environments. Explore additional models and professional measuring instruments available through EnvMart to suit all your thickness gauging needs.
