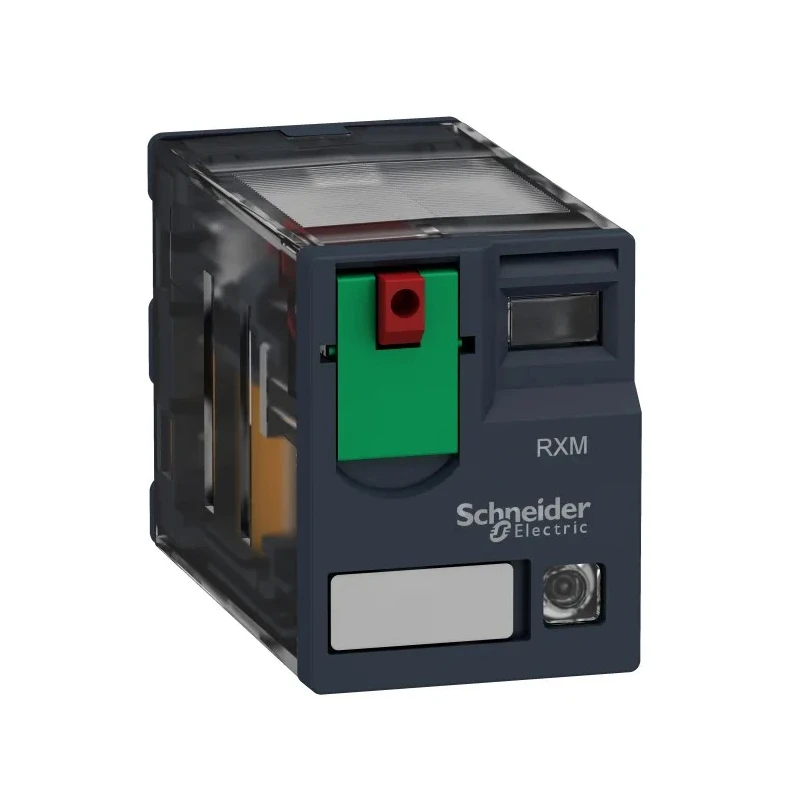

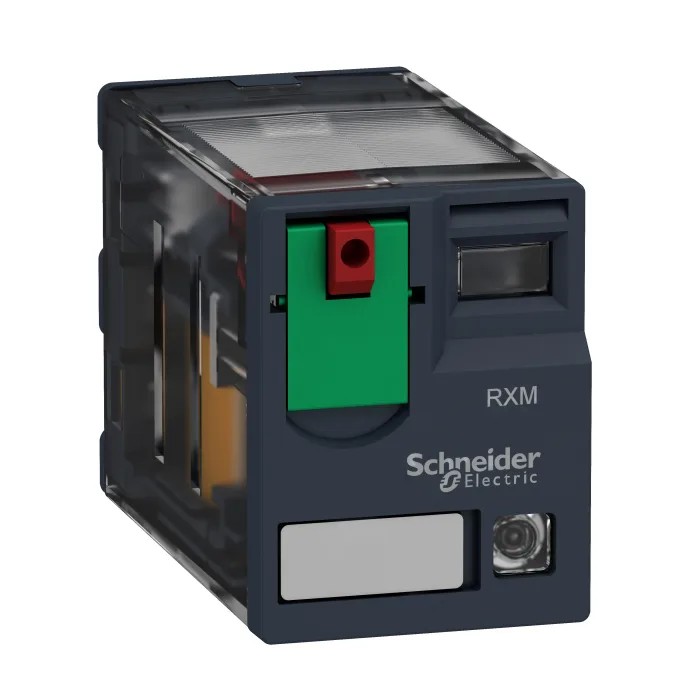

Schneider Electric Power Relay 120V AC Coil 3A Switching Current 4PDT RXM4GB2F7

Schneider Electric RXM4GB2F7 Power Relay is a compact industrial electromechanical relay designed to provide high reliability for automation and control systems. It integrates a 120V AC coil with a 3A rating on switching current and a 4PDT (four-pole double throw) contact configuration which is gold plated for enhanced conductivity and reduced wear.

This relay supports a wide range of operating temperatures from -40°C to 55°C, making it suitable for various industrial environments including HVAC systems, packaging, textile machines, and motor control panels. The relay's compact dimensions - 27mm height, 21mm length, and 47.7mm width - enable easy integration in control cabinets and devices.

The RXM4GB2F7 model includes a one-step lockable test button and a mechanical orange indicator flag that displays the contact status clearly. Additionally, a green LED on the actuator face provides visible status feedback in both daylight and dark conditions, facilitating troubleshooting and operational verification.

This relay is part of the Harmony Relay RXM series, renowned for its ease of installation, programmability, and compliance with international standards such as CE, CSA, IEC, UL, and RoHS. Mounting is via a plug-in RXZE socket with optional vibration protection via plastic or metal clamps, enhancing robustness in demanding applications.

This miniature plug-in relay is optimized for industrial automation use. Features a lockable test button for operational verification. Gold plated contacts with 3A switching current rating ensure durability. Compact size supports integration into limited spaces.

Operating temperature range from -40°C to 55°C suits harsh conditions. Status LED and mechanical indicator enhance operational feedback. Compatible with RXZE sockets with additional vibration protection options. Complies with major international standards for industrial equipment.

Designed for machine, building equipment, and power supply applications. Manufactured in China with high-quality standards.

This power relay is ideal for industrial machines, packaging, textile applications, HVAC automation, motor control, PLC interfaces, and low/medium voltage switchgear. Its enhanced indications and test functionalities improve maintenance and operation in industrial settings. Explore Schneider Electric products and Power Relays on EnvMart for reliable industrial automation components.
