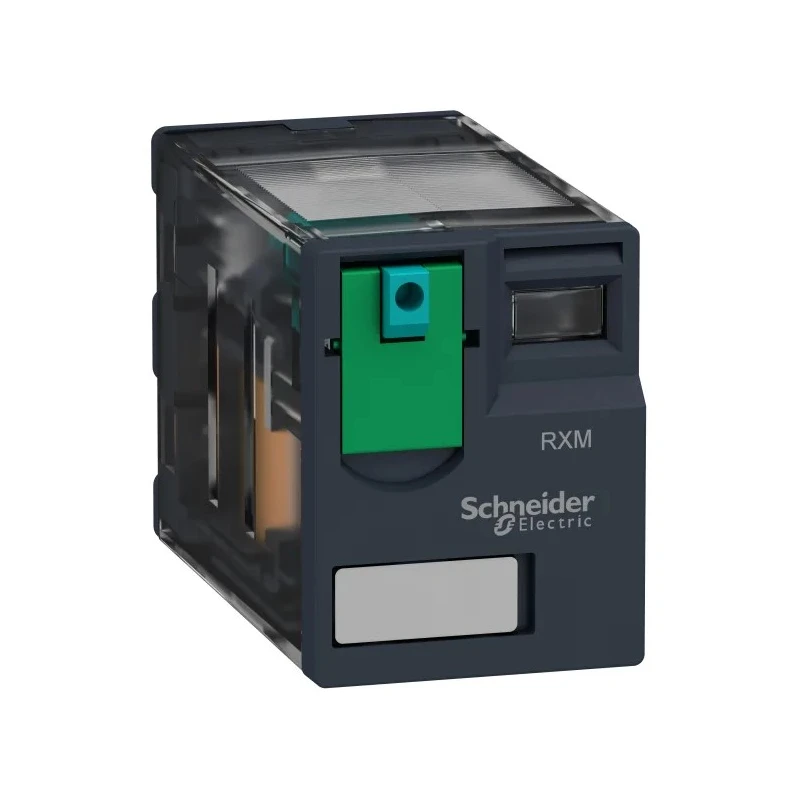

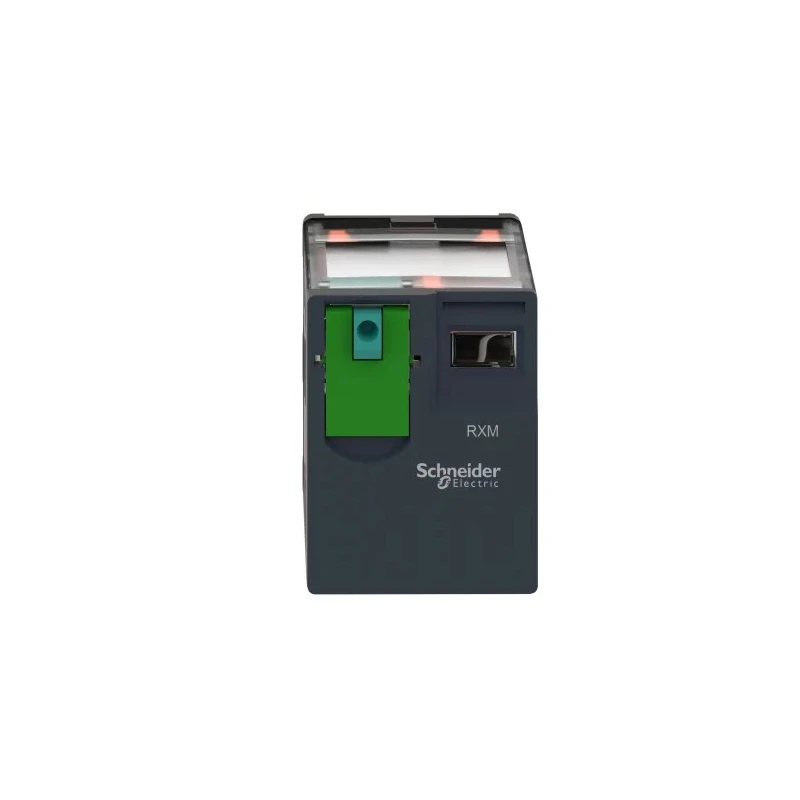

Schneider Electric Power Relay 48V DC Coil 12A Switching Current DPDT Plug-In Harmony RXM RXM2AB1ED

Schneider Electric RXM2AB1ED is a miniature Power Relay with a 48V DC coil and a 12A switching current configured as DPDT (Double Pole Double Throw). It belongs to the Harmony Relay RXM series, known for its compact plug-in design and high reliability in industrial automation and electrical applications.

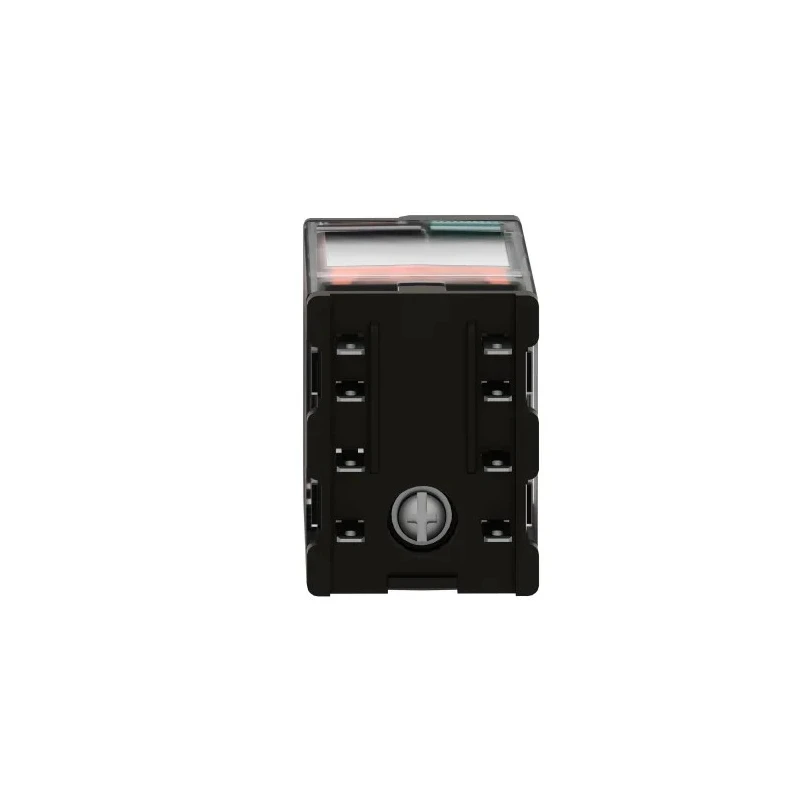

This relay features a plug-in terminal type allowing easy mounting and replacement. Its silver alloy contacts provide excellent conductivity and durability, supporting a switching AC voltage of 250V AC and a switching power of 3kVA. Its coil operates at 48V DC with a resistance of 2.6kΩ and consumes 900mW power.

Engineered to function efficiently across a wide temperature range of -40°C to 55°C, it incorporates an IP40 protection rating with a transparent cover, enabling operators to visually verify the status of contacts. The relay is equipped with features like a one-step lockable test button and a mechanical indicator to enhance operational safety and ease of diagnostics.

Compliant with international standards including CSA and CE, and environmentally conscious through RoHS and REACH certifications, this relay supports a wide range of industrial uses, including automation systems and programmable logic controllers (PLCs) applications. It is ideal for reducing enclosure size while maintaining robust switching capabilities.

The RXM2AB1ED relay should be mounted on compatible RXZE sockets with optional vibration protection clamps available separately. It is suitable for mechanical and electrical industrial environments requiring reliable switching solutions.

Compact Harmony RXM miniature relay for industrial control. 48V DC coil voltage with 12A rated switching current, DPDT contacts. Plug-in terminal type ensures easy installation and replacement. Silver alloy contacts rated for switching AC voltage of 250V AC and 3kVA power.

Wide operating temperature range from -40°C to 55°C with IP40 protection. Test button and mechanical indicator for contact status available. Complies with CSA, CE, RoHS, and REACH standards. Suitable for use with programmable logic controllers (PLCs) in automation.

Manufactured in China with reliable build quality. Compatible with RXZE socket and vibration protection accessories. Explore more Power Relay products and Schneider Electric automation solutions on EnvMart for enhanced industrial and electrical system performance.
