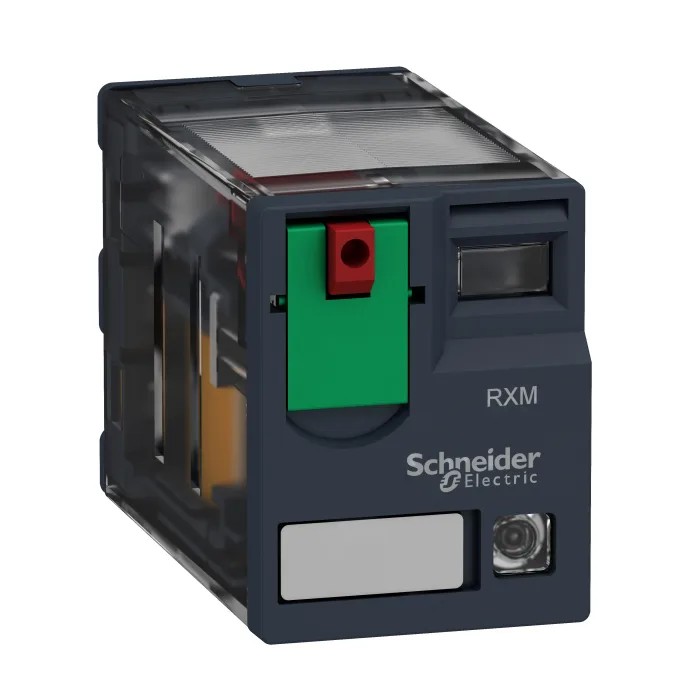

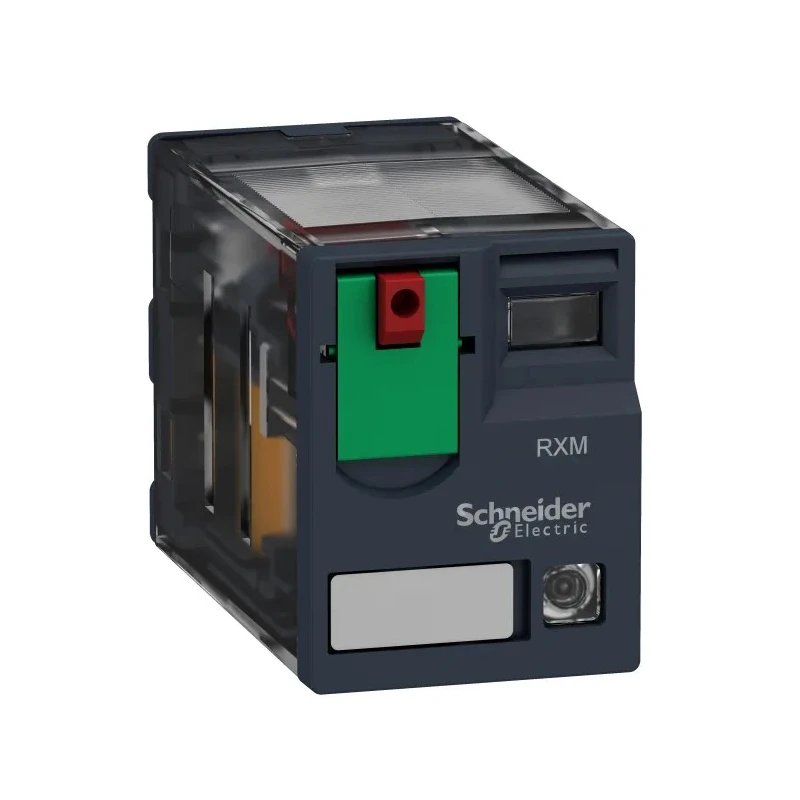

Schneider Electric Power Relay, 24V AC Coil, 3A Switching Current, 4PDT, Plug-In Terminal RXM4GB2B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM4GB2B7 |
| Width | 47.7mm |
| Contact Material | Gold Plated |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Plug-In |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 180Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- The relay is part of the Harmony RXM series with a compact plug-in design.
- It includes gold-plated contacts ensuring durable and low-resistance connections.
- Operating temperature range from -40°C to 55°C suits industrial environments.
- Equipped with a test button and an LED indicator for easy status monitoring.
- Suitable for control and automation applications with a transparent cover for visual inspection.
- Designed for compatibility with RXZE sockets featuring screw clamp or push-in terminals.
- Compact dimensions of 47.7mm width, 27mm height, and 21mm length optimize enclosure space.
Product Description
Schneider Electric RXM4GB2B7 Power Relay is a miniature plug-in relay from the Harmony RXM series designed for industrial automation and control.
This relay operates with a coil voltage of 24V AC and a switching current of 3A, featuring a 4-pole double-throw (4PDT) contact configuration suited for controlling multiple circuits reliably.
Its compact plug-in terminal type offers easy installation and integration into electrical enclosures, particularly in HVAC, industrial machinery, and building automation systems.
Constructed with gold-plated contacts, the relay ensures low contact resistance and long operational life. The product supports a wide operating temperature range from -40°C to 55°C, making it suitable for harsh industrial environments.
The relay includes an easy-to-use test button and a "Power On" LED indicator to visually signal operational status even in low light conditions. Its transparent cover allows operators to inspect contact conditions without disassembling the device.
This model is designed to be used with RXZE sockets, which are available separately with various terminal options including screw clamp and push-in terminals. Optional vibration protection clamps and marking legends enhance installation reliability.
The relay's compact dimensions (47.7mm width, 27mm height, 21mm length) allow for efficient space utilization in control panels. It conforms to international standards and approvals including CSA and CE, and is manufactured in China.
Power consumption is low at 1.2W coil power, with coil resistance rated at 180Ω.
Schneider Electric RXM series relays provide robust, reliable switching solutions adaptable to diverse industrial and commercial automation systems, enabling enhanced machine and process control efficiency.
Explore the full range of Schneider Electric Power Relays and related components in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V AC.
This model has a maximum switching current of 3A.
The dimensions of the RXM4GB2B7 relay are 47.7mm in width, 27mm in height, and 21mm in length.
The relay features a 4-pole double-throw (4PDT) contact configuration.
The operating temperature range for this relay is from -40°C to 55°C.
This relay is designed for plug-in terminal type connections and is compatible with RXZE sockets, which feature screw clamp or push-in terminals.
The contacts in this relay are made of gold-plated material, ensuring low contact resistance.
Yes, it includes a 'Power On' LED indicator for visual status monitoring and a test button for easy operation.
This relay conforms to CSA and CE standards and approvals.
The coil resistance of this relay is rated at 180Ω.
The power consumption of this relay is low at 1.2W for the coil power.
The RXM4GB2B7 relay is manufactured in China.
