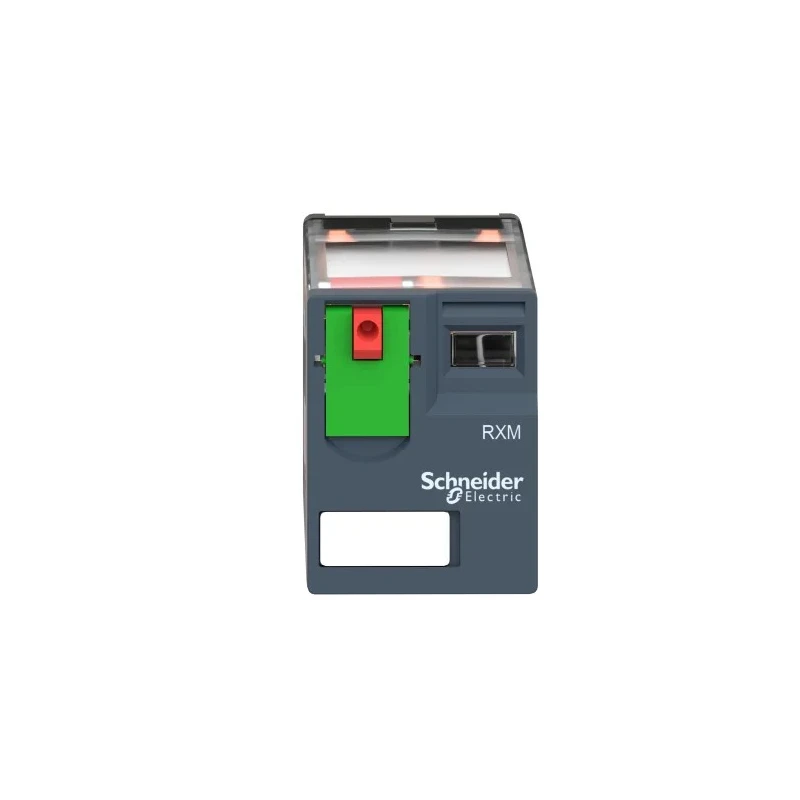

Schneider Electric Power Relay 24V AC Coil 12A Switching Current DPDT Harmony Relay RXM RXM2AB1B7

Schneider Electric RXM2AB1B7 Power Relay is part of the Harmony Electromechanical Relays series, designed for robust industrial automation, HVAC, packaging machinery, and building equipment control applications. This miniature plug-in relay features a 24V AC coil and a DPDT contact configuration rated for 12A switching current, providing dependable performance in electromechanical switching.

The relay is designed to mount securely on RXZE sockets using its plug-in terminal type, allowing easy installation and maintenance. It includes an innovative one-step lockable test button and a mechanical indicator with an orange flag to provide visual contact status indication, facilitating maintenance and troubleshooting.

Compact and engineered for harsh environments, it operates reliably from -40°C up to 55°C. The coil resistance of 180 ohms and coil power of 1.2 watts ensure energy-efficient operation. The contact material is silver alloy, chosen for its excellent conductivity and wear resistance, ensuring longevity under frequent switching operations.

Ideal for integrating with industrial programmable logic controllers (PLCs), low/medium voltage switchgear, motor control panels, power supplies, and lighting controls, this relay meets international standards including CSA and CE, confirming its quality and compliance.

Manufactured in China, the RXM2AB1B7 relay is a green premium product aligning with global environmental regulations. It is sold typically in lots of 10 units and is compatible with additional accessories like vibration protection clamps and marking legends for enhanced installation options.

Operates with a 24V AC coil for versatile control voltage compatibility. Double Pole Double Throw (DPDT) contact configuration ensures reliable switching performance. 12A switching current rating supports a wide range of electrical loads.

Features a plug-in terminal type for easy mounting on RXZE sockets. Includes one-step lockable test button and mechanical indicator for contact status verification. Compact dimensions: 27mm height, 21mm length, and 47.7mm width for space-efficient installation.

Coil resistance of 180Ω and coil power consumption of 1.2W optimize energy use. Suitable for environments with minimum operating temperature of -40°C and maximum of 55°C. Contact material made of silver alloy enhances conductivity and durability.

Compliance with CSA and CE standards ensures safety and reliability.
