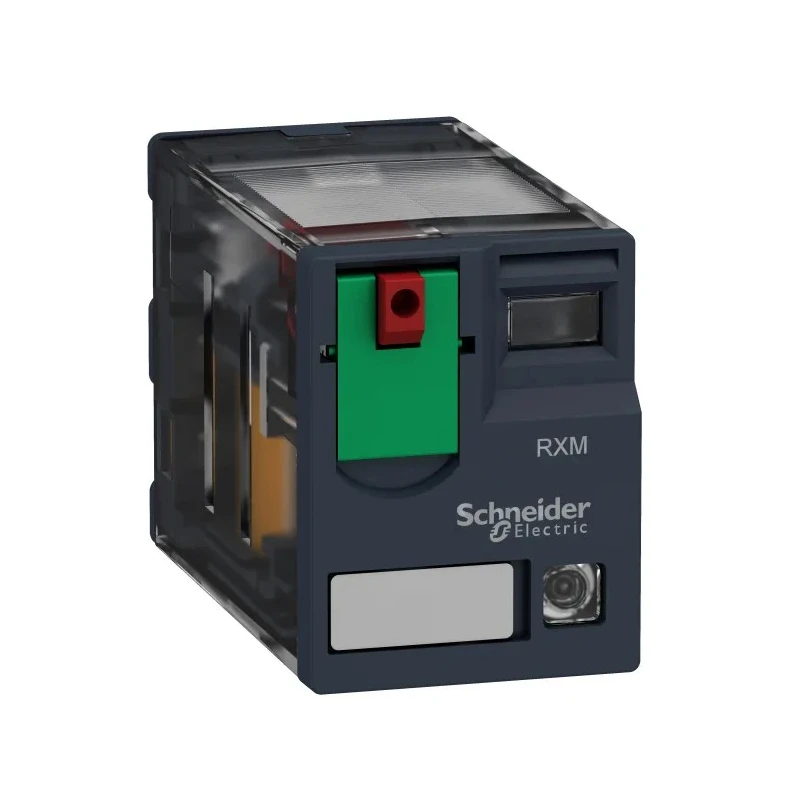

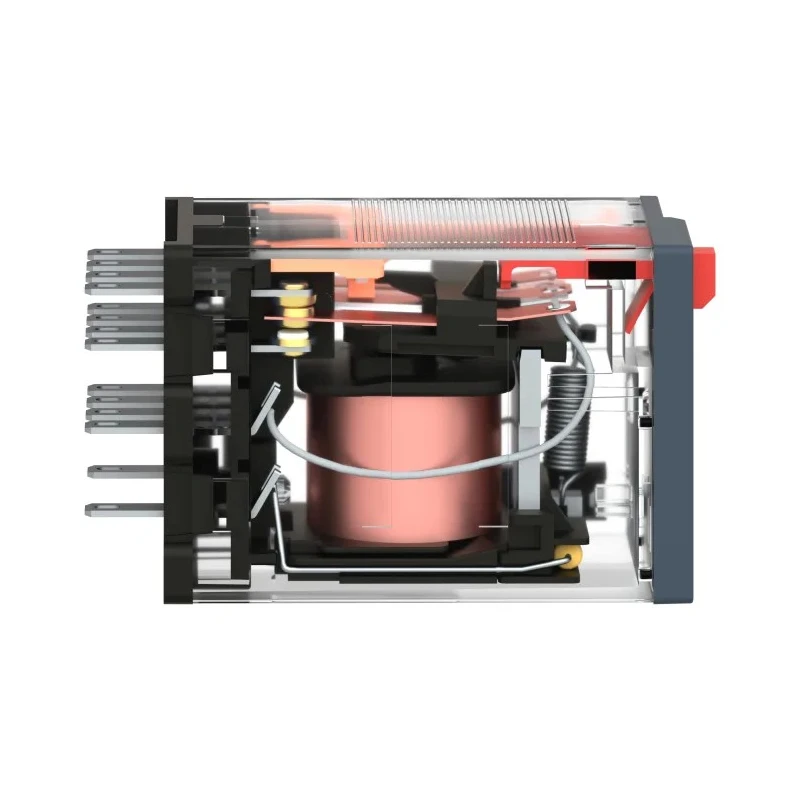

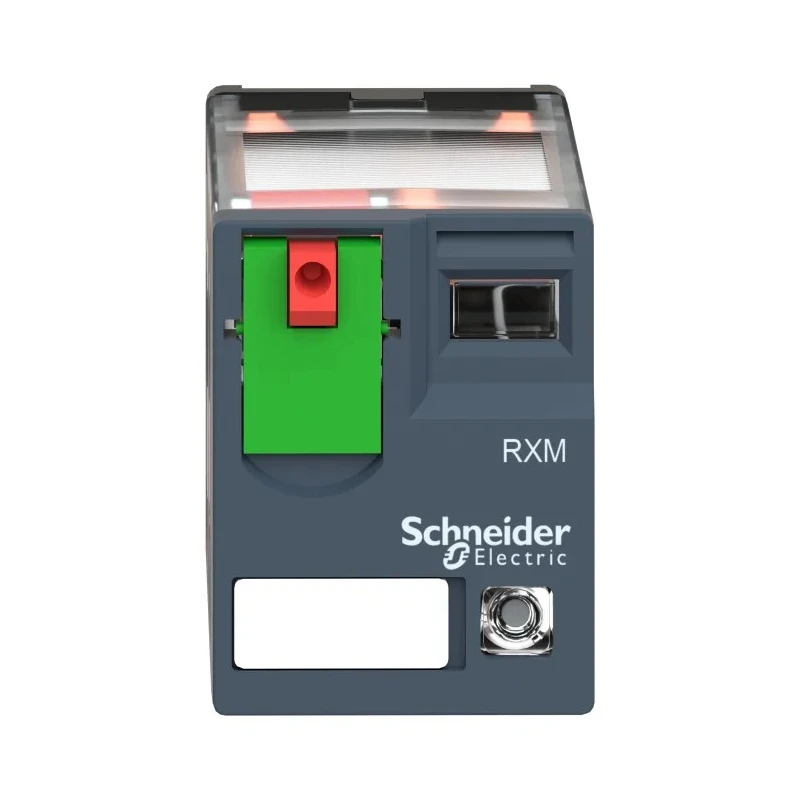

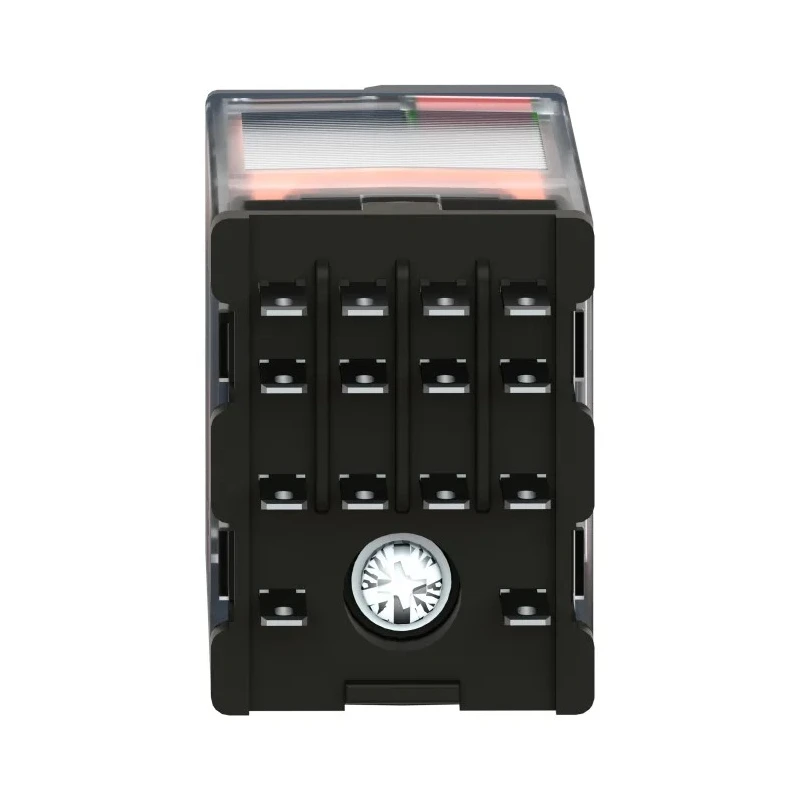

Schneider Electric Power Relay 230V AC Coil 8A Switching Current 4PDT RXM4AB2P7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM4AB2P7 |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 15kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- The plug-in terminal type facilitates easy and secure installation.
- Designed to operate efficiently with a coil power of 1.2W.
- Constructed with silver alloy contact material ensuring reliable electrical connections.
- Suitable for applications requiring switching power up to 1.5 kVA.
- Operates reliably within a temperature range of -40°C to +55°C.
- Compact dimensions with length 21mm, width 47.7mm, and height 27mm optimize panel space.
- Compliance with CE and CSA standards provides safety assurance.
- This miniature relay includes a test button and mechanical indicator for operational status.
Product Description
Schneider Electric RXM4AB2P7 Power Relay is a high-quality plug-in relay designed with a 230V AC coil and an 8A switching current rating. It provides a 4PDT contact configuration made of silver alloy for optimal conductivity and durability, making it suitable for demanding electrical applications.
The relay’s compact size, with dimensions of 21mm in length, 47.7mm in width, and 27mm in height, allows easy integration into control panels and automation systems. It operates efficiently with a coil power consumption of only 1.2 watts, ensuring low energy use.
Featuring a minimum operating temperature of -40°C and a maximum of +55°C, this relay performs reliably in harsh industrial environments. Its maximum switching power of 1.5 kVA enables operation with both AC and DC voltages, supporting 250V AC and 28V DC maximum switching voltages respectively.
The coil resistance is specified at 15kΩ, ensuring consistent coil characteristics. UL and CE compliance guarantee high safety and quality standards for industrial and commercial use.
This miniature relay is equipped with a test button and a mechanical status indicator, simplifying maintenance and troubleshooting. Its plug-in mounting ensures quick replacement and installation.
Typical industrial applications include automation systems, electrical control panels, HVAC equipment control, and lighting circuit switching. It is ideally suited to environments requiring rugged, reliable power relays for efficient switching operations.
The plug-in terminal type facilitates easy and secure installation. Designed to operate efficiently with a coil power of 1.2W. Constructed with silver alloy contact material ensuring reliable electrical connections. Suitable for applications requiring switching power up to 1.5 kVA.
Operates reliably within a temperature range of -40°C to +55°C. Compact dimensions with length 21mm, width 47.7mm, and height 27mm optimize panel space. Compliance with CE and CSA standards provides safety assurance. This miniature relay includes a test button and mechanical indicator for operational status.
Ideal for industrial automation, electrical control panels, HVAC systems, and lighting circuit control. Explore other Power Relays and Schneider Electric products at EnvMart for advanced control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 8A, making it suitable for various electrical applications.
This model has compact dimensions: 21mm in length, 47.7mm in width, and 27mm in height, optimizing panel space.
The coil voltage for this relay is 230V AC, which is necessary for its operation.
It can handle a maximum switching power of 1.5 kVA, suitable for both AC and DC applications.
The relay operates reliably within a temperature range of -40°C to +55°C, making it suitable for harsh environments.
This model features a 4PDT contact configuration, allowing for versatile switching capabilities.
The contacts are constructed from silver alloy, ensuring reliable electrical connections.
Yes, it complies with CE and CSA standards, providing assurance of safety and quality for industrial use.
The coil power consumption is 1.2W, which contributes to its efficient operation.
The coil resistance is specified at 15kΩ, ensuring consistent coil characteristics during operation.
It features a plug-in terminal type, facilitating easy and secure installation.
Typical applications include automation systems, electrical control panels, HVAC equipment control, and lighting circuit switching.
