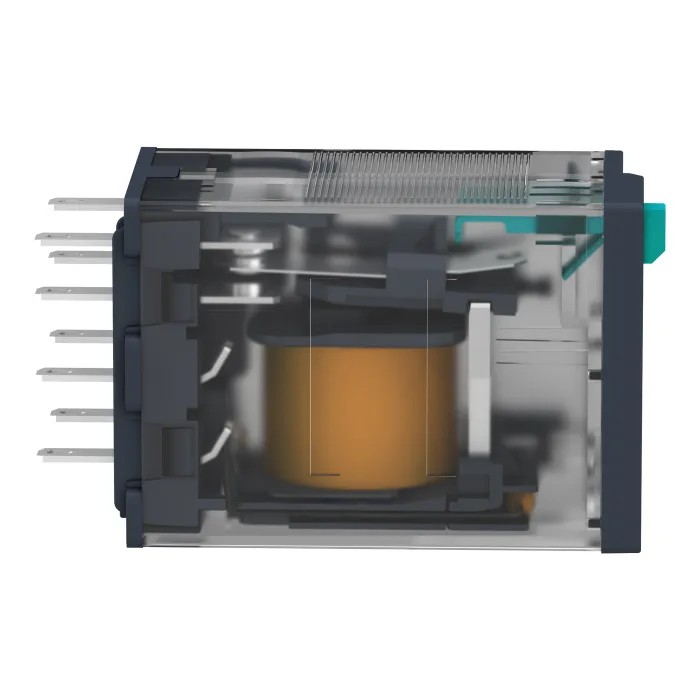

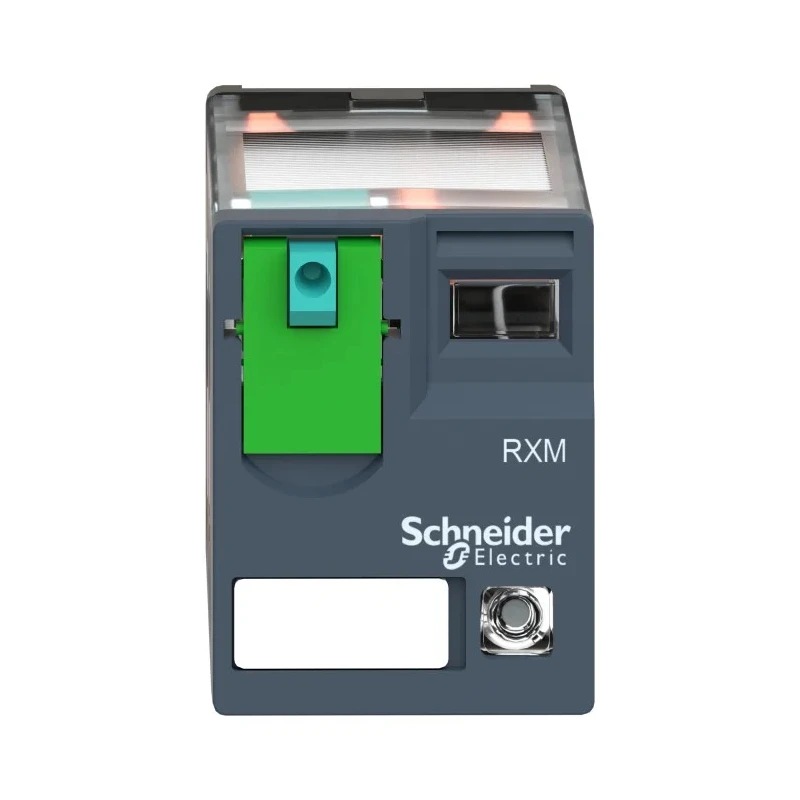

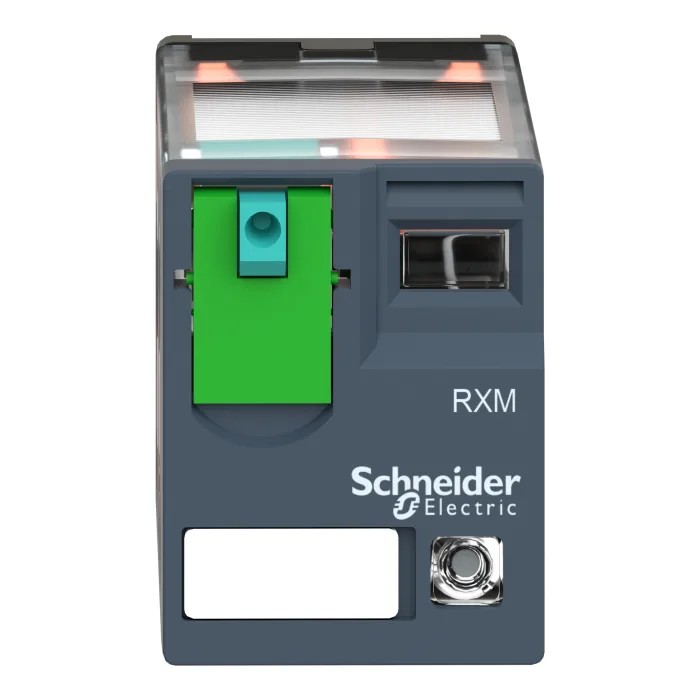

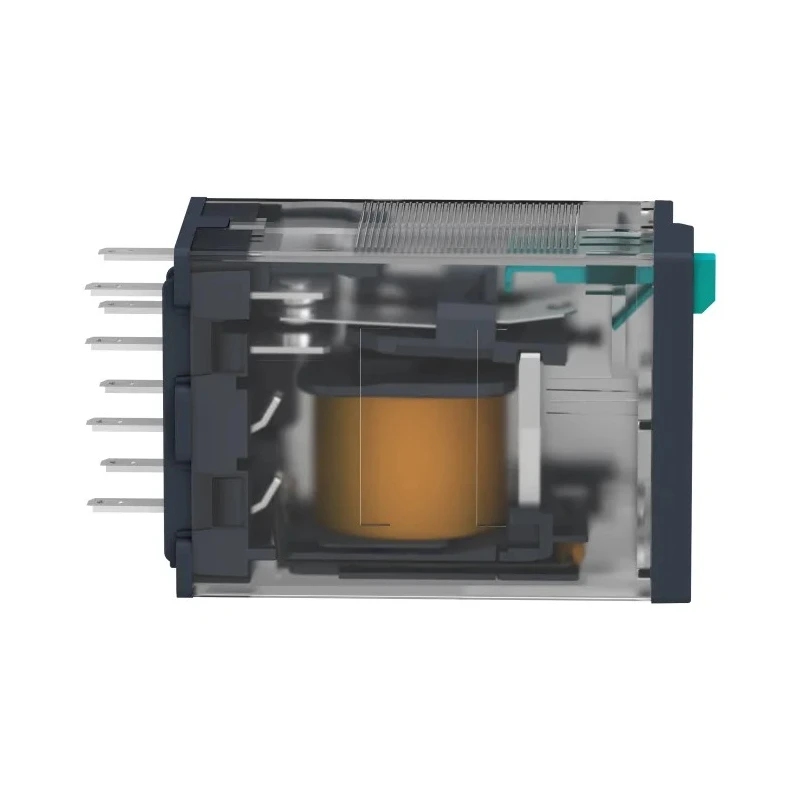

Schneider Electric Power Relay 24V DC Coil 12A Switching Current DPDT RXM2AB2BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM2AB2BD |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 650Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V |
| Switching AC Voltage | 250V ac |
| Coil Power | 900mW |
Key Features
- Equipped with a dual-pole double-throw (DPDT) configuration for versatile switching.
- Operates with a coil voltage of 24V DC and coil resistance of 650Ω.
- Supports switching voltages up to 250V AC/DC with maximum switching power of 3 kVA.
- Built with durable silver alloy contacts ensuring long service life.
- Low coil power consumption of 900mW enhances energy efficiency.
- Wide operating temperature range from -40°C to +55°C for harsh environments.
- Includes a latching mechanism and lockable test button for user convenience.
- Integrated LED status indicator provides immediate operational feedback.
Product Description
Schneider Electric RXM2AB2BD power relay is a miniature plug-in device designed for industrial automation, electrical panel control, and mechanical system switching. It operates at 24V DC coil voltage with a reliable 12A switching current, suitable for managing high currents effectively.
The relay features a dual-pole double-throw (DPDT) contact configuration, providing flexible and robust switching options for various industrial applications. Its compact form factor with dimensions of 21 x 27 x 47.7 mm allows easy integration into control systems.
Designed to perform efficiently in extreme environments, it operates within a temperature range of -40°C to +55°C. The coil resistance of 650Ω optimizes energy usage, and the 900mW low coil power decreases operational costs. Silver alloy contact material ensures high durability and consistent performance over extensive use.
Additional operational benefits include a latching mechanism with a lockable test button that simplifies maintenance and testing procedures. An integrated LED status indicator offers immediate visual confirmation of relay status, enhancing troubleshooting and monitoring capabilities.
This power relay is compliant with CE and CSA standards, assuring safety and quality in industrial use cases such as automation equipment, electrical panels, and various industrial machines requiring reliable switching performance.
Equipped with a dual-pole double-throw (DPDT) configuration for versatile switching. Operates with a coil voltage of 24V DC and coil resistance of 650Ω. Supports switching voltages up to 250V AC/DC with maximum switching power of 3 kVA.
Built with durable silver alloy contacts ensuring long service life. Compact dimensions: 21mm length, 27mm height, and 47.7mm width. Low coil power consumption of 900mW enhances energy efficiency. Wide operating temperature range from -40°C to +55°C for harsh environments.
Includes a latching mechanism and lockable test button for user convenience. Integrated LED status indicator provides immediate operational feedback. Manufactured to meet CE and CSA standards for quality assurance.
This relay is ideal for industrial automation, electrical panel control, mechanical systems, and other machinery requiring secure and high-current switching. Choose Schneider Electric Power Relays for reliable, durable, and efficient operation. Explore more products in the Electronics & Electricals Relays & Contactors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power relay operates with a coil voltage of 24V DC.
It can handle a maximum switching current of 12A.
The dimensions of this relay are 21mm in length, 27mm in height, and 47.7mm in width.
This model features a dual-pole double-throw (DPDT) contact configuration.
It supports switching voltages up to 250V AC/DC.
The coil resistance is 650Ω.
It operates within a temperature range of -40°C to +55°C.
The contacts are made from durable silver alloy.
Yes, it includes an integrated LED status indicator for operational feedback.
The coil power consumption is 900mW, enhancing energy efficiency.
It is compliant with CE and CSA standards, ensuring safety and quality.
The relay features a plug-in terminal type for easy installation.
