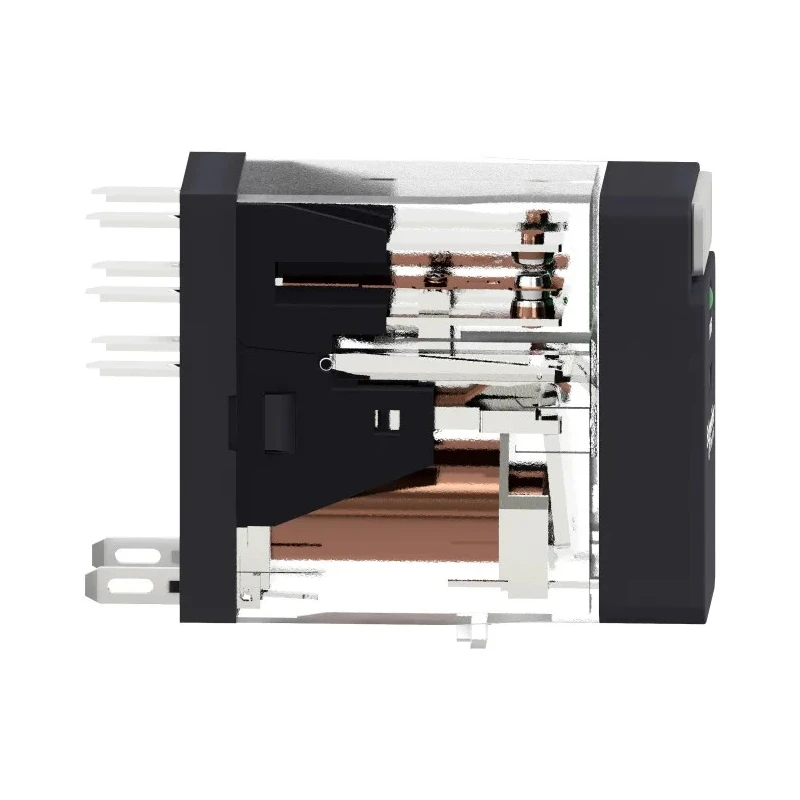

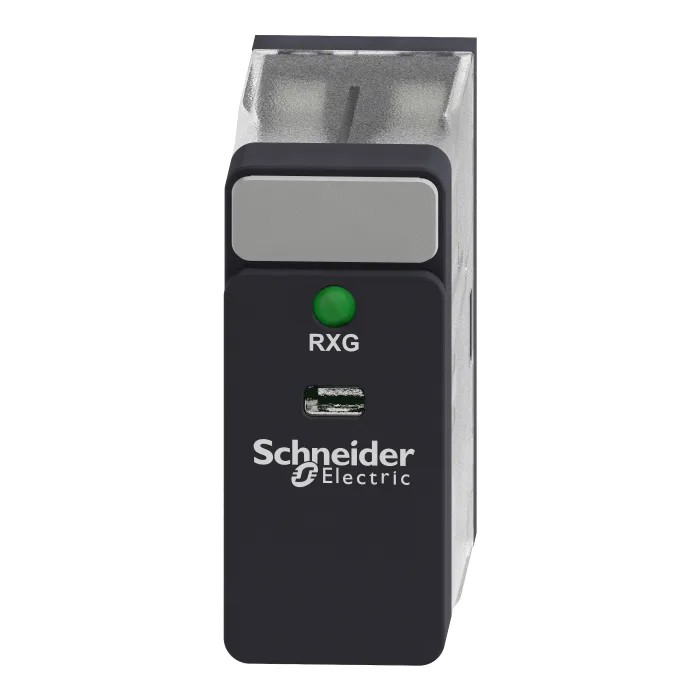

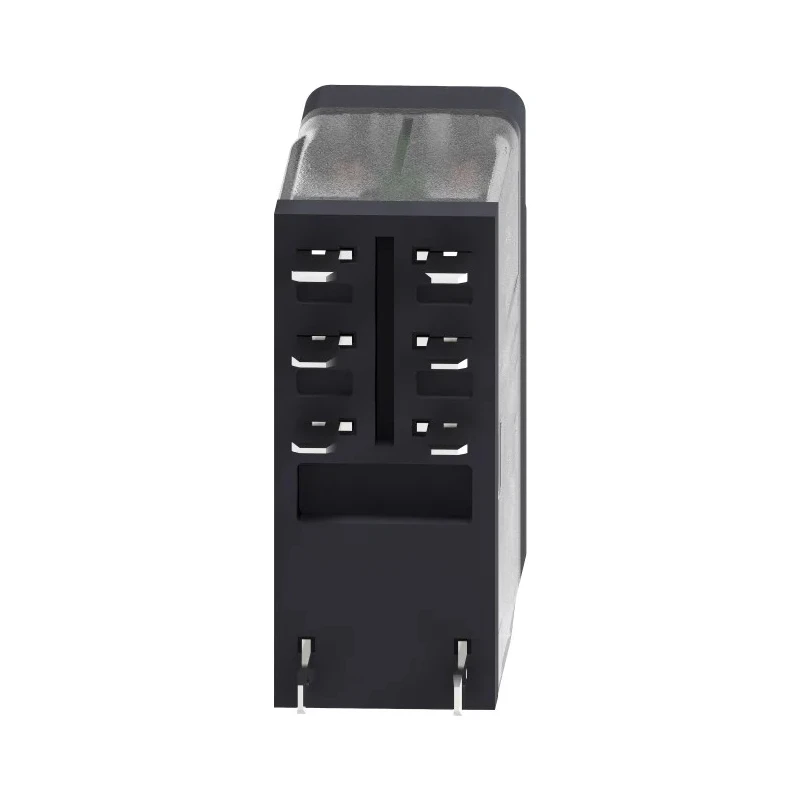

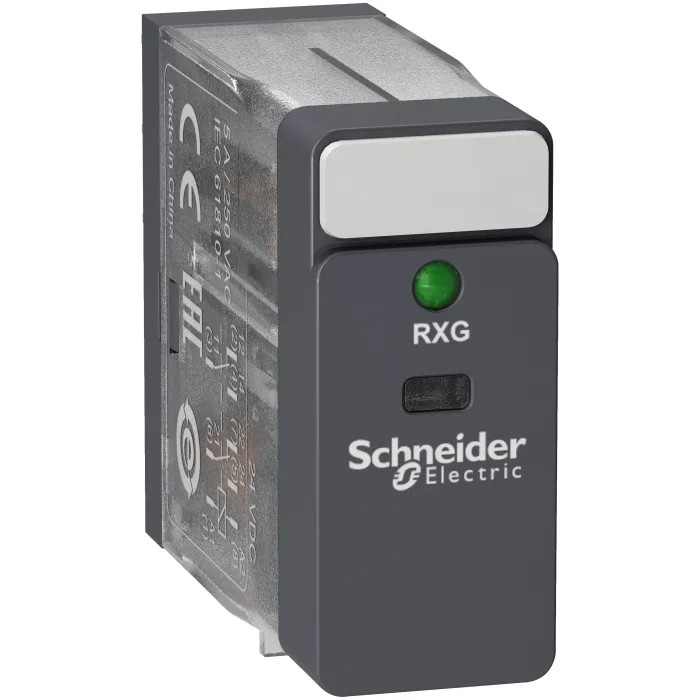

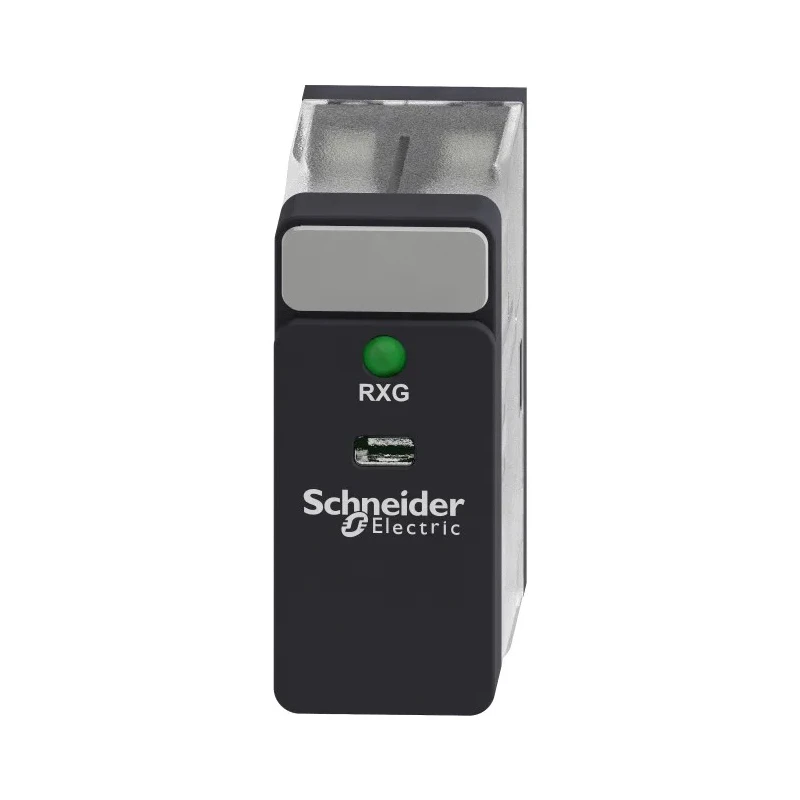

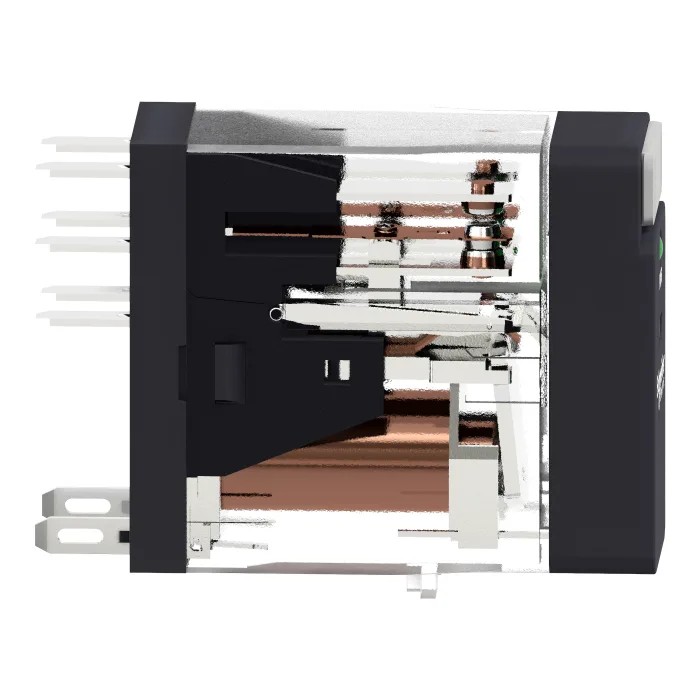

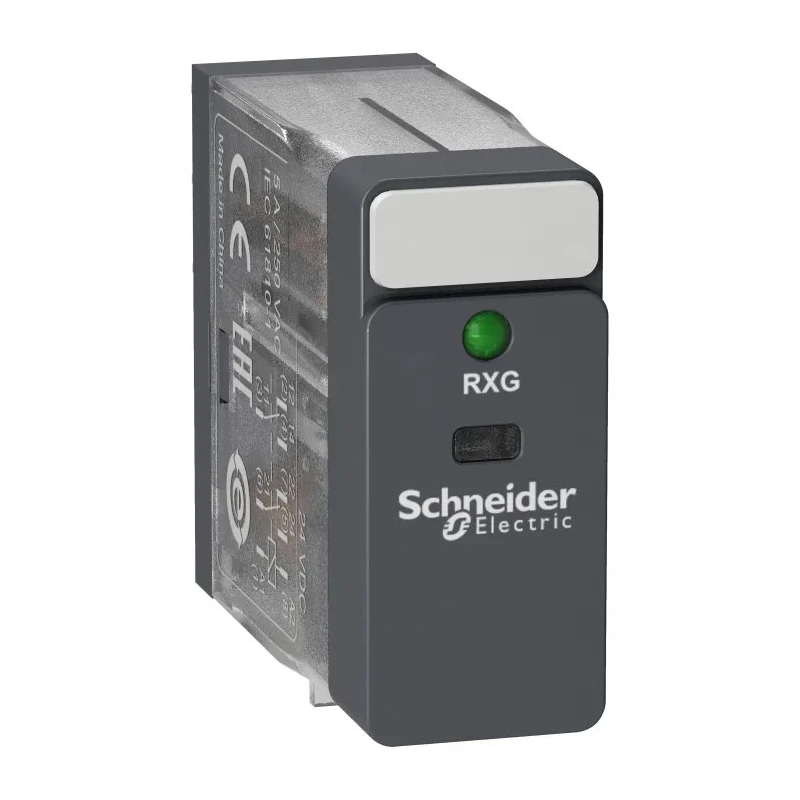

Schneider Electric Power Relay 24V DC Coil 5A Switching Current DPDT Harmony Relay RXG RXG23BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 37.1mm |
| Length | 13mm |
| Model | RXG23BD |
| Width | 30.6mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Part of the Harmony Relay RXG series designed for reliable industrial use.
- Plug-in terminal type with faston pin for quick and secure mounting.
- Operates at coil voltage of 24V DC with a coil power of 530mW.
- Contact configuration is DPDT with silver alloy contacts for durability.
- Supports switching currents up to 5A and voltages up to 250V AC and 30V DC.
- Compact size (13mm x 30.6mm x 37.1mm) saves space in electrical assemblies.
- Built to operate between -40°C and 70°C for harsh environment resilience.
- Includes LED indicator for clear status display day and night.
Product Description
Schneider Electric RXG23BD is a power relay featuring a 24V DC coil with a 5A switching current and a double pole double throw (DPDT) contact configuration. It belongs to the Harmony Relay RXG series, known for compact design and reliable operation suited for industrial automation and control systems.
This relay utilizes silver alloy contacts that provide excellent conductivity and durability. It supports switching DC voltage up to 30V and AC voltage up to 250V, making it versatile for various electrical circuits. The plug-in terminal type with faston pin mounts quickly and securely for efficient installation.
Its coil resistance of 1.1kΩ and coil power consumption of 530mW ensure efficient electrical performance. Operating temperature range from -40°C to 70°C makes it suitable for harsh industrial environments.
The compact dimensions (LxWxH: 13mm x 30.6mm x 37.1mm) allow for space-saving panel and DIN rail mounting solutions. This relay includes a built-in LED indicator which clearly shows the relay status both during the day and at night, enhancing operational visibility and maintenance ease.
Certified to CE and CSA standards, this relay ensures compliance with international safety and quality requirements. It carries the Better World claim as it is designed for disassembly to support sustainability and environmental responsibility.
This relay is particularly suited for use in hard-wired logic automation systems and programmable logic controller (PLC) interface applications, which require reliable switching devices with clear status signaling and easy mounting options.
The relay is part of the Harmony RXG interface relay range offering 5A switching with 2CO contacts. Plug-in relay socket with separate contact terminals and screw connectors for DIN rail and panel mounting. Protection modules like diode, diode+LED, RC circuit, or varistor+LED are available across compatible sockets.
Includes plastic maintaining clamp supplied with all RXG sockets for secure installation. Clip-in legends available for all RXG and RSB sockets to improve identification and usability. Explore similar Schneider Electric Power Relays and accessories at EnvMart for enhanced industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXG23BD relay operates at a coil voltage of 24V DC.
This model supports a maximum switching current of 5A.
The dimensions of this relay are 13mm in length, 30.6mm in width, and 37.1mm in height.
It features a double pole double throw (DPDT) contact configuration.
This relay uses a plug-in terminal type with faston pins for secure mounting.
The RXG23BD operates effectively within a temperature range of -40°C to 70°C.
The coil power consumption for this relay is 530mW.
The contacts are made of silver alloy, which provides good conductivity and durability.
It can switch AC voltages up to 250V and DC voltages up to 30V.
Yes, it includes a built-in LED indicator that shows the relay status clearly both day and night.
This relay is certified to CE and CSA standards, ensuring compliance with international safety and quality requirements.
It is particularly suited for hard-wired logic automation systems and programmable logic controller (PLC) interface applications.
