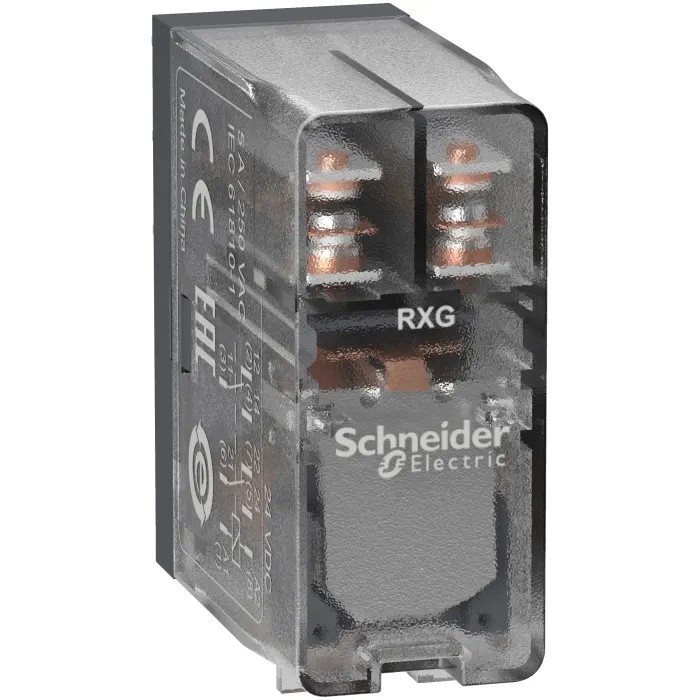

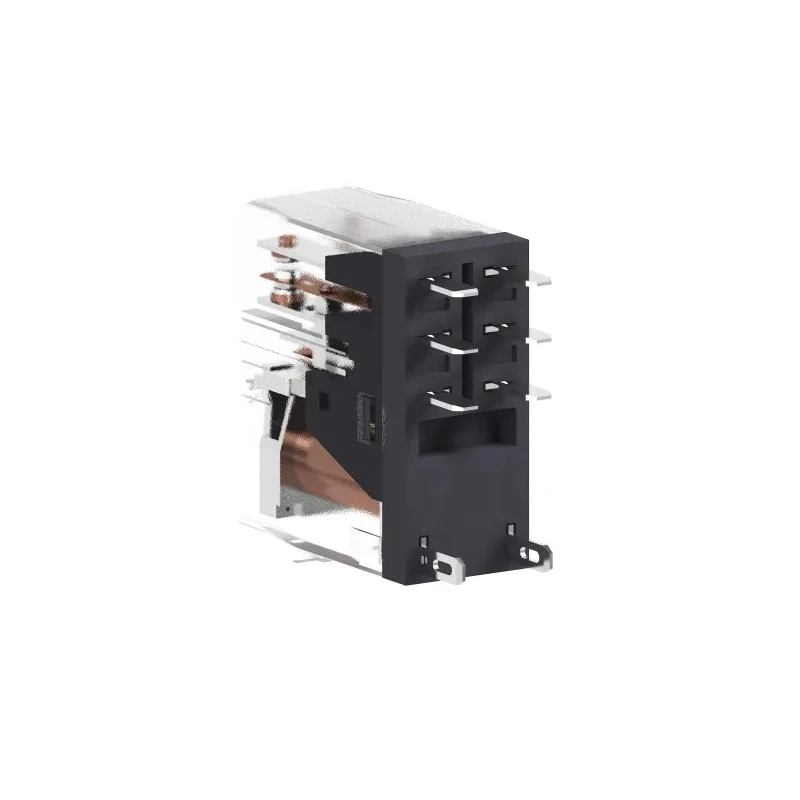

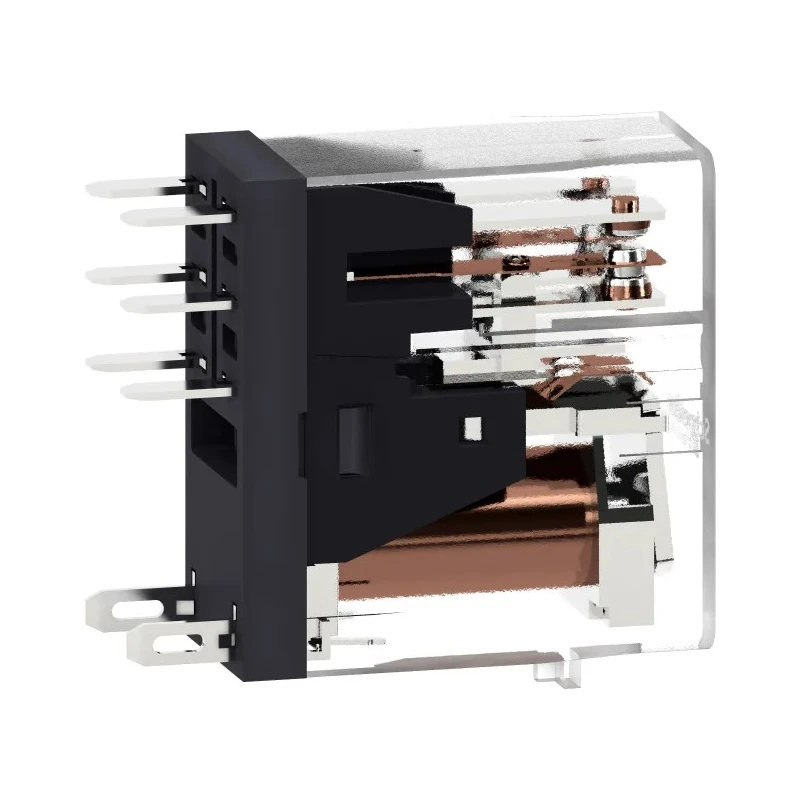

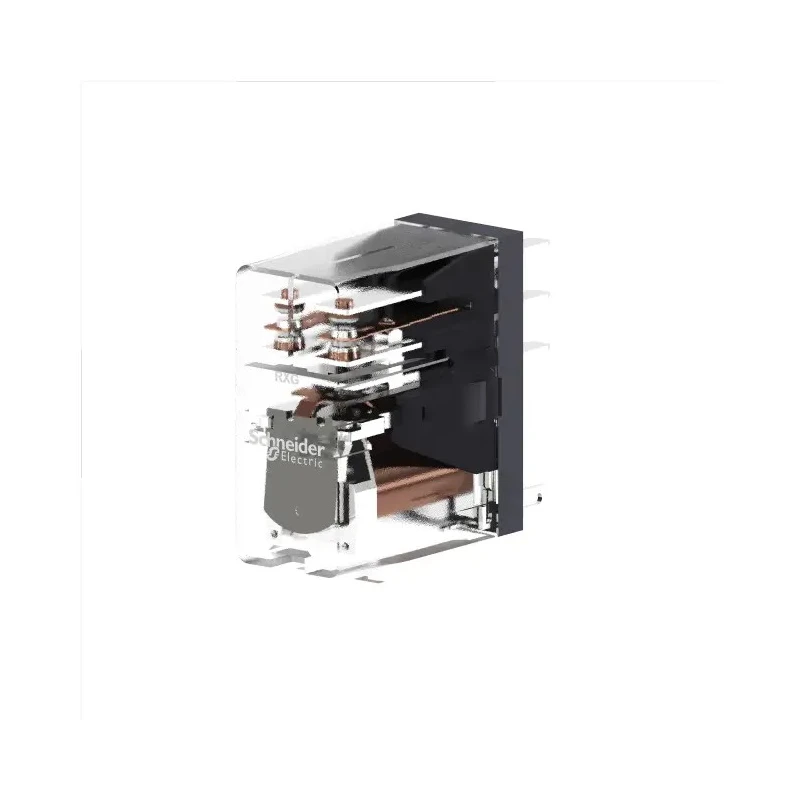

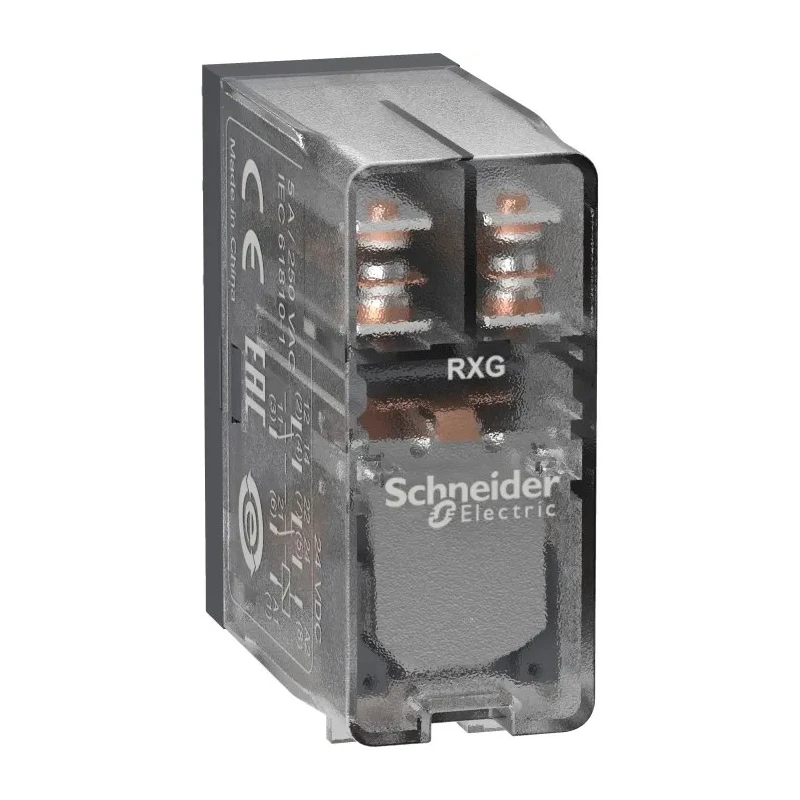

Schneider Electric Power Relay 24V dc Coil 5A Switching Current DPDT RXG25BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 29mm |
| Length | 13mm |
| Model | RXG25BD |
| Width | 30.8mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- This power relay features a Harmony Relay RXG series design for enhanced performance.
- It contains a plug-in terminal type for easy installation and maintenance.
- The relay's coil resistance is 1.1kΩ, consuming 530mW power for efficient operation.
- Operating temperature ranges from -40°C to 70°C, suitable for demanding industrial environments.
- Contacts are made of durable silver alloy with a contact resistance of 100mΩ ensuring reliable switching.
- This model supports switching AC voltage up to 250V and DC voltage up to 30V.
- Compact dimensions with 29mm height, 13mm length, and 30.8mm width allow space-saving installation.
- The product complies with CE and CSA standards for safety and quality assurance.
Product Description
Schneider Electric RXG25BD power relay offers robust performance with a 24V dc coil and a 5A switching current in a DPDT contact configuration. This relay series, part of Harmony Relay RXG, is widely used in industrial automation and control applications, providing reliable switching and compact installation.
The plug-in terminal type facilitates secure connections and ease of maintenance, while the coil resistance of 1.1kΩ and coil power consumption of 530mW ensure efficient operation. Designed to withstand temperatures from -40°C to 70°C, it is ideal for harsh environments.
Manufactured contacts feature silver alloy material with a low contact resistance of 100mΩ, supporting switching voltages up to 250V AC and 30V DC. With dimensions optimized for panel and DIN rail mounting - height of 29mm, length of 13mm, and width of 30.8mm - this device saves installation space without compromising performance.
The RXG25BD meets critical CE and CSA certifications, guaranteeing safety and reliability in industrial use. Originating from China, this power relay is designed primarily for PLC interfaces, signal conditioning, and various electrical automation applications.
This Power Relay features a Harmony Relay RXG series design for enhanced performance. It contains a plug-in terminal type for easy installation and maintenance. The relay's coil resistance is 1.1kΩ, consuming 530mW power for efficient operation.
Operating temperature ranges from -40°C to 70°C, suitable for demanding industrial environments. Contacts are made of durable silver alloy with a contact resistance of 100mΩ ensuring reliable switching. This model supports switching AC voltage up to 250V and DC voltage up to 30V.
Compact dimensions with 29mm height, 13mm length, and 30.8mm width allow space-saving installation. The product complies with CE and CSA standards for safety and quality assurance. Manufactured in China, this relay is ideal for use in PLC interfaces and automated control systems.
Explore the Electronics & Electricals category for more advanced relays and components suitable for industrial automation and control systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXG25BD power relay has a switching current rating of 5A.
This model operates with a coil voltage of 24V DC.
The dimensions of this relay are 29mm in height, 13mm in length, and 30.8mm in width.
The RXG25BD features a DPDT (Double Pole Double Throw) contact configuration.
This relay supports a maximum switching voltage of 250V AC and 30V DC.
It utilizes a plug-in terminal type for easy installation and maintenance.
The operating temperature range is from -40°C to 70°C, making it suitable for harsh environments.
The contacts of this relay are made from durable silver alloy.
The coil resistance for this relay is 1.1kΩ.
This relay consumes 530mW of power for its coil operation.
The RXG25BD complies with CE and CSA standards for safety and quality assurance.
This power relay is manufactured in China.
