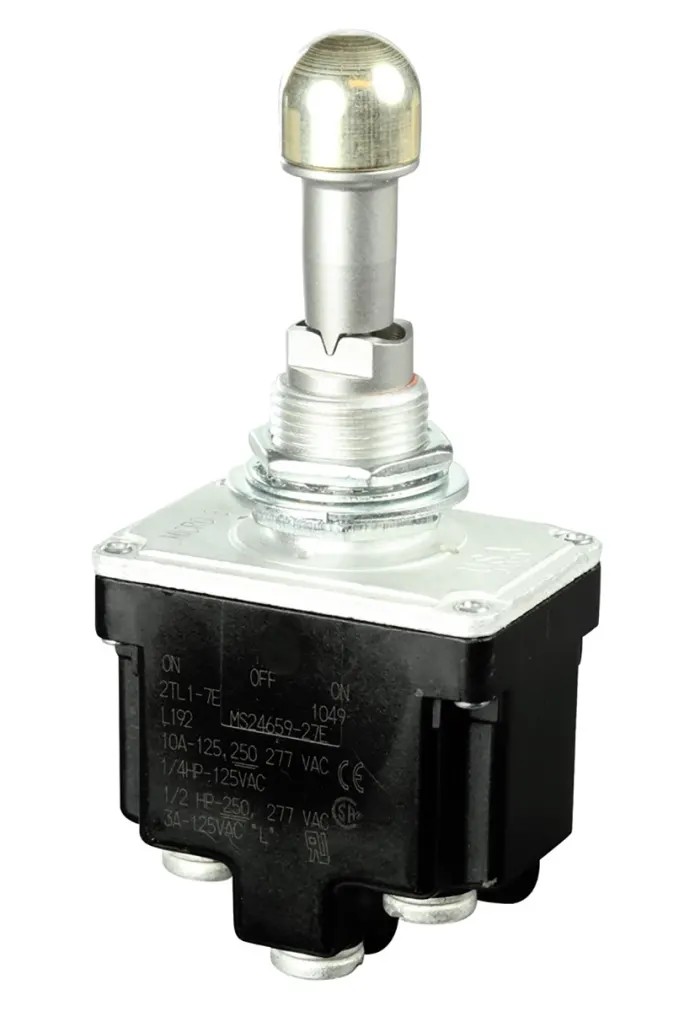

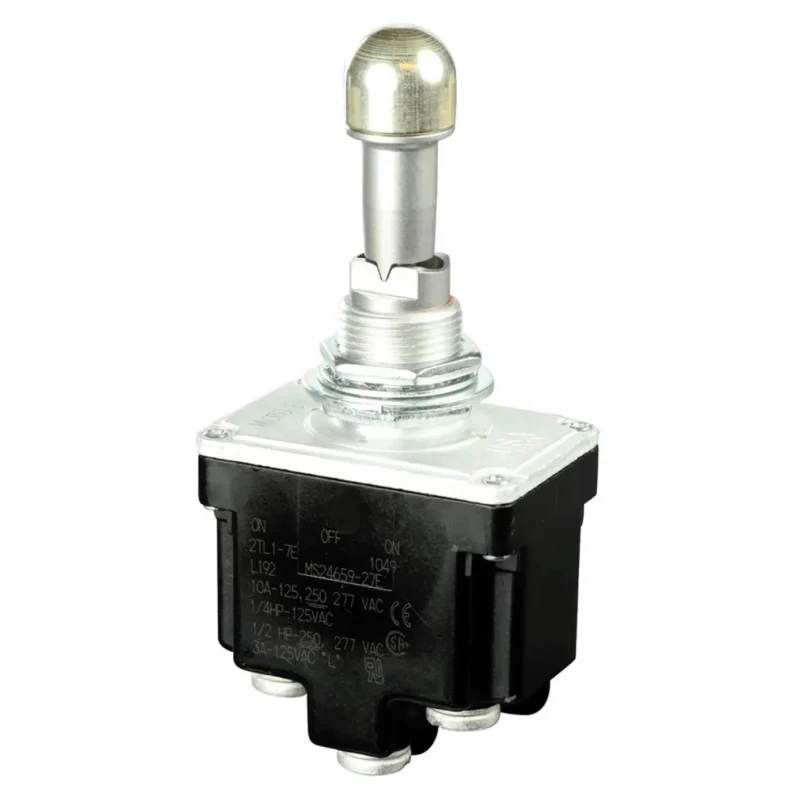

Honeywell Technologies Toggle Switch Panel Mount On-Off-On DPDT Screw Terminal 28 V dc 277 V ac 2TL1-7E
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Honeywell |
| Height | 26.7mm |
| Length | 22mm |
| Model | 2TL1-7E |
| Width | 33.5mm |
| Mount Type | Panel Mount |
| Series | TL |
| Maximum Operating Temperature | 71°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -65°C |
| Panel Cutout Size | 12.4 mm |
| Terminal type | Screw |
| Standards/Approvals | UL, CE, CSA |
| Switch Operation | On-Off-On |
| Actuator Length | 17mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 18A |
| Contact AC Voltage | 277V ac |
| Switch, Toggle, 2 Pole, 3 Position, Screw Terminals, Locking LeverBrand | Honeywell |
Key Features
- Double Pole Double Throw (DPDT) contacts enable independent control of two circuits.
- Rated for 18A contact current to handle high load applications without derating.
- Supports 28 V DC and 277 V AC voltages for compatibility with various systems.
- Panel mount design with 12.4 mm cutout enables easy installation in control panels.
- Actuator length of 17 mm provides positive manual tactile control.
- Operates within a temperature range from -65°C to 71°C ensuring durability.
- Screw terminals allow for secure and serviceable wiring connections.
- Compact dimensions of 33.5 mm width, 26.7 mm height, and 22 mm length.
Product Description
Honeywell 2TL1-7E Toggle Switch is a panel-mount electrical selector switch designed for On-Off-On operation with a Double Pole Double Throw (DPDT) configuration. Rated at 18A contact current and suitable for use with 28 V DC and 277 V AC, this switch is ideal for industrial and control panel applications requiring manual switching between two outputs with a central off position.
The switch features screw terminal connections facilitating secure and serviceable wiring. Its bushing mount fits a 12.4 mm diameter panel cutout, enabling straightforward panel integration. The actuator projects 17 mm, providing ergonomic tactile feedback for operator control.
Compact in size with dimensions of 33.5 mm width, 26.7 mm height, and 22 mm length, the device tolerates harsh environments with an operating temperature range from -65°C to 71°C. It meets UL, CE, and CSA certifications, confirming its compliance with industry standards.
Applications include manual motor control switching in industrial control panels, selection of power sources in automation racks, relay logic operations for redundant supply changeover, and user interface functionality in electrical distribution equipment.
Double Pole Double Throw (DPDT) contacts for independent dual circuit switching. 18A contact rating supports high current loads without derating. Rated for 28 V DC and 277 V AC system compatibility. Screw terminal type ensures secure and serviceable wiring.
Panel mount bushing seat fits 12.4 mm cutout for simple installation. Actuator length of 17 mm provides manual control tactile feel. Operates reliably from -65°C to 71°C allowing wide temperature usability. Compact dimensions for space-efficient panel layout.
Complies with UL, CE, CSA safety and quality standards. Manufactured in the United States ensuring high reliability.
Honeywell Toggle Switches are widely used in industrial automation, electrical distribution, and manufacturing environments where reliable and durable manual switching is essential. Explore the full range of Honeywell electrical switches and related components on EnvMart for all your industrial control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Double Pole Double Throw (DPDT) contact configuration, allowing for independent control of two circuits.
It is rated for 28 V DC and 277 V AC, making it compatible with various electrical systems.
The switch is rated for a maximum contact current of 18A, suitable for high load applications without derating.
The dimensions of this model are 33.5 mm in width, 26.7 mm in height, and 22 mm in length.
The panel cutout size required for installation is 12.4 mm in diameter.
This model features screw terminals, which provide secure and serviceable wiring connections.
The actuator length is 17 mm, providing positive manual tactile control.
It complies with UL, CE, and CSA certifications, confirming its adherence to industry standards.
This switch is suitable for applications such as manual motor control switching, selection of power sources, and relay logic operations.
It is manufactured in the United States, ensuring compliance with local quality standards.
The switch operates in an On-Off-On configuration, allowing for manual switching between two outputs with a central off position.
