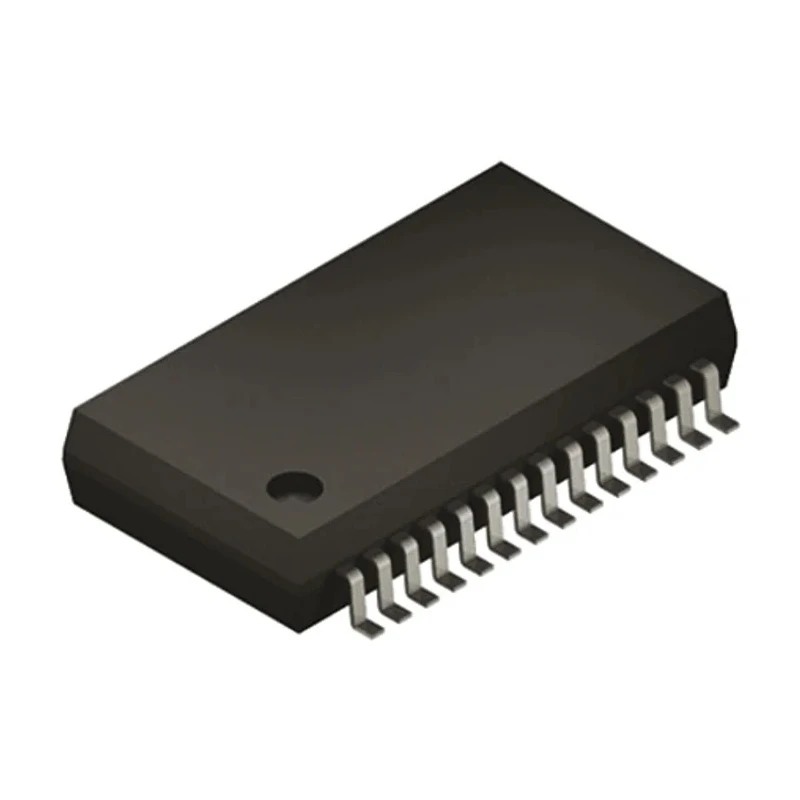

Microchip 16-bit PIC Microcontroller 32 MHz 128kB FLASH 28-Pin SSOP PIC24FJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 10.5mm |
| Model | PIC24FJ |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Module - USB On-the-Go Compliant |
| Ram size | 8kB |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 34 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 12MB |
| Number of Timers | 1 |
| Instruction Set Architecture | Harvard |
| ADCs | 9 x 10/12 Bit |
| Program Memory Type | FLASH |
Key Features
- The device has a 16-bit data bus width and a PIC device core.
- It offers 8kB RAM and 34 programmable I/Os for versatile interfacing.
- Maximum operating voltage is 3.6V with a minimum supply voltage of 2V.
- Temperature range supports operations from -40°C to 85°C.
- Integrated peripherals include USB On-the-Go, cryptographic engine, and multiple timers.
- Includes 9 analog comparators with 10/12-bit ADC channels.
- Designed with Extreme Low-Power (XLP) technology for efficient power usage.
- Package dimensions are compact with 1.85mm height, 5.6mm width, and 10.5mm length.
Product Description
Microchip PIC24FJ128GB202-I/SS is a 16-bit PIC microcontroller operating at a maximum clock frequency of 32 MHz with 128kB of flash program memory and 8kB RAM. It comes in a compact 28-Pin SSOP surface mount package designed to meet modern electronic application needs.
This microcontroller features a rich set of peripherals, including a USB On-the-Go compliant module, cryptographic engine, 9 analog comparators with 10/12-bit ADC, and multiple timers that provide precision timing and control. The device core is based on the PIC architecture with a 16-bit data bus, ensuring efficient processing performance up to 16 MIPS.
Power management is enhanced by Extreme Low-Power technology, along with various built-in protections such as Brown-Out Reset, Power-On Reset, extended watchdog timers, and voltage detection modules. Its operating voltage range is from 2V to 3.6V, supporting various power sources and applications.
Environmental robustness includes an operating temperature span from -40 to 85 degrees Celsius, making it suitable for industrial and automotive environments. The package dimensions of 10.5mm length, 5.6mm width, and 1.85mm height allow for compact PCB designs and easy surface mounting.
This microcontroller is RoHS compliant, ensuring adherence to environmental standards for electronic components. The device is ideal for embedded systems in industrial automation, consumer electronics, and communication applications.
Integrated USB module supports USB On-the-Go for flexible connectivity. Security functions are enhanced with an on-board cryptographic engine. Multiple communication interfaces such as SPI, I2C, and UART modules enable versatile connectivity.
Low power consumption enabled by XLP technology supports battery-operated devices and energy-efficient designs.
Choose Microchip PIC24FJ128GB202-I/SS Microcontrollers for reliable and efficient embedded microcontroller solutions. Explore more microcontroller options and supporting components at EnvMart for seamless development and production.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the Microchip PIC24FJ128GB202-I/SS is 32 MHz.
This microcontroller operates within a temperature range of -40°C to 85°C.
It features 128kB of FLASH program memory.
The minimum supply voltage is 2V and the maximum supply voltage is 3.6V.
It comes in a compact 28-Pin SSOP (Shrink Small Outline Package).
This microcontroller has 8kB of RAM.
It supports multiple communication interfaces including SPI, I2C, and UART modules.
The dimensions are 1.85mm in height, 5.6mm in width, and 10.5mm in length.
Yes, the PIC24FJ128GB202-I/SS is RoHS compliant, adhering to environmental standards for electronic components.
It is based on the Harvard instruction set architecture.
