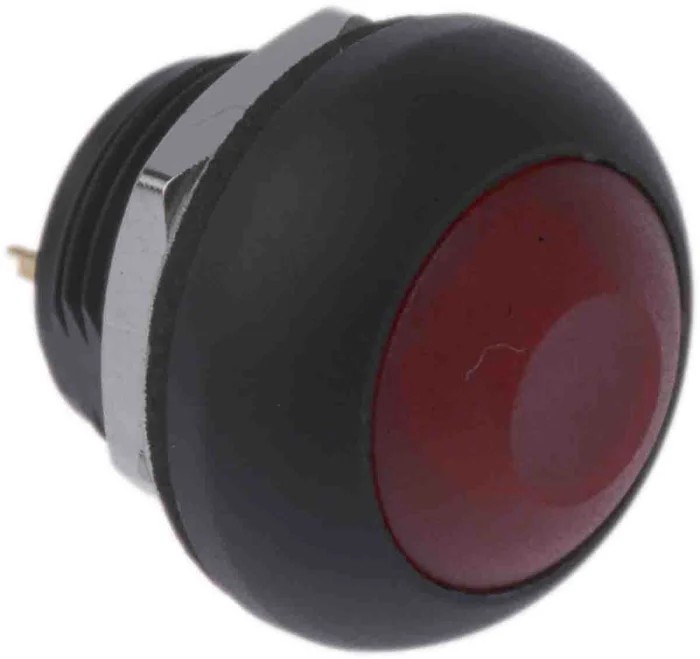

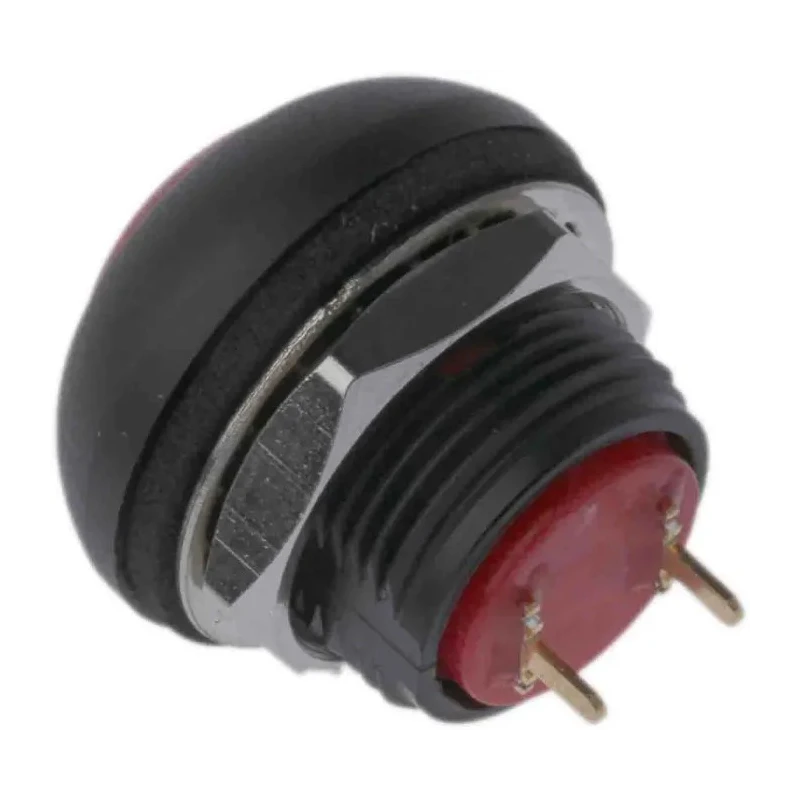

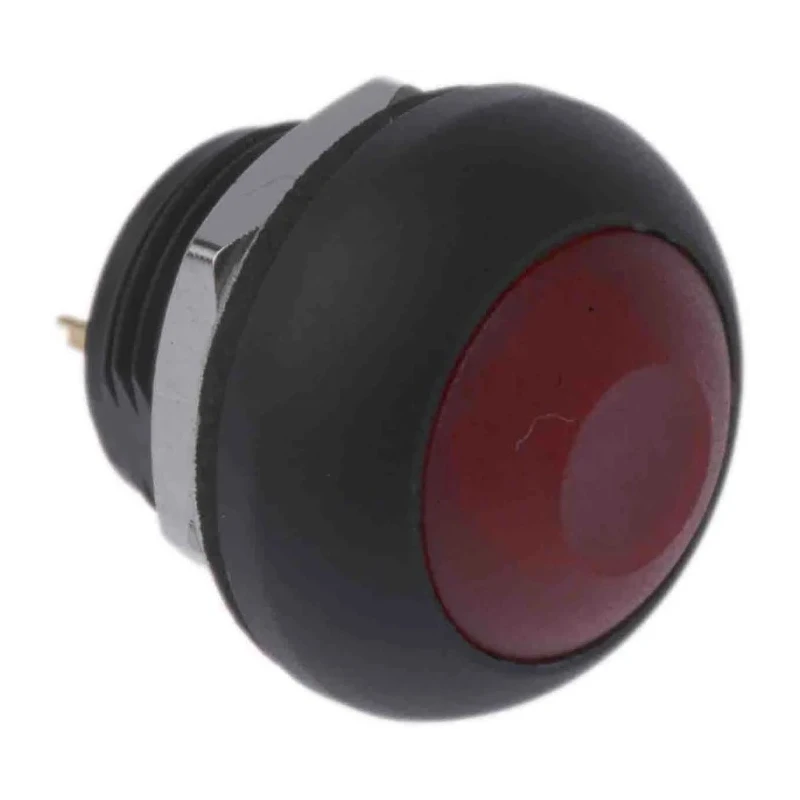

RS PRO Miniature Push Button Switch Momentary PCB Red LED 13.6 mm Cutout SPST IP67 50V dc 32V ac 820-7599

Name: RS PRO Miniature Push Button Switch Momentary PCB Red LED 13.6 mm Cutout SPST IP67 50V dc 32V ac 820-7599
Brand: RS PRO
SKU: 315977
Price: 6.99 USD
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	820-7599
IP Rating	IP67
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	SPST
Panel Cutout Size	13.6 mm
Terminal type	PCB Pin
Standards/Approvals	RoHS, Lead-Free
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	50V dc
Actuator Style	Cap
Switch Contact Current	400mA
Operating Force	2N-5N
Mechanical Life	1000000 cycles
Contact AC Voltage	32V ac
Contact Bounce	10 ms
Soldering	350°C maximum for 5 seconds

Key Features

This switch has a 13.6 mm panel cutout size suitable for PCB mounting.
It features a single-pole single-throw (SPST) contact configuration for simple on-off control.
The device supports a contact DC voltage of 50 volts and AC voltage of 32 volts.
The actuator is a red cap style designed for momentary operation with high mechanical durability.
The switch is rated IP67 offering dust-tight and water immersion protection.
It supports a maximum operating temperature of 85 degrees Celsius.
The contact current rating is 400 mA with a robust mechanical life of 1,000,000 cycles.
Construction uses high-quality Polyamide 6/6 material with gold over silver plated contacts.

Product Description

RS PRO 820-7599 Miniature Push Button Switch Momentary PCB, red LED illuminated, designed for industrial and electronic applications requiring reliable brief power switching. This momentary Push Button Switch features a 13.6 mm panel cutout, ideal for printed circuit board (PCB) mounting, offering a compact and efficient interface component.

The contact configuration is single-pole single-throw (SPST), supporting contact voltages up to 50 V DC and 32 V AC, making it suitable for low voltage control circuits. Constructed with a red cap actuator made from durable Polyamide 6/6 and gold over silver plated contacts, this switch maintains consistent electrical performance and longevity.

Its robust IP67 rating ensures protection against dust ingress and water immersion, enabling use in harsh environmental conditions. Mechanical life rating is 1,000,000 cycles with an operating force between 2N and 5N, and contact bounce is minimized to 10 ms ensuring stable operation.

The switch is designed to withstand soldering temperatures up to 350 degrees Celsius for five seconds, facilitating easy integration into manufacturing processes. Typical applications include test equipment, telecommunications devices, networking hardware, and handheld appliances requiring momentary switch actuation.

This switch has a 13.6 mm panel cutout size suitable for PCB mounting. It features a single-pole single-throw (SPST) contact configuration for simple on-off control. The device supports a contact DC voltage of 50 volts and AC voltage of 32 volts.

The actuator is a red cap style designed for momentary operation with high mechanical durability. The switch is rated IP67 offering dust-tight and water immersion protection. It supports a maximum operating temperature of 85 degrees Celsius.

The contact current rating is 400 mA with a robust mechanical life of 1,000,000 cycles. Construction uses high-quality Polyamide 6/6 material with gold over silver plated contacts. Typical uses include test equipment, telecommunications, networking, and handheld appliances.
