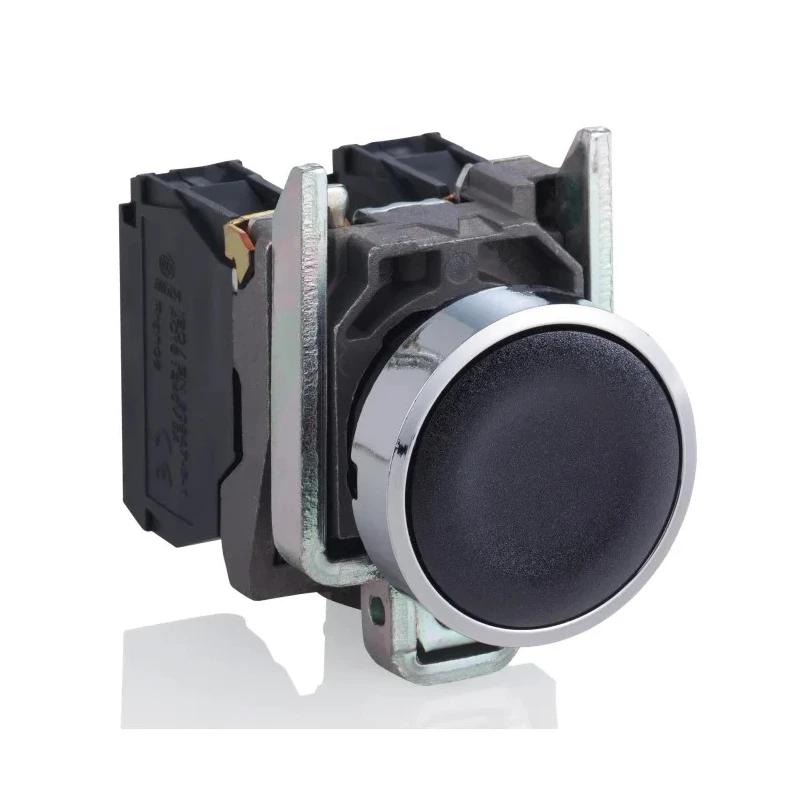

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout, SPDT, Black LED XB4BA25

Schneider Electric XB4BA25 is a high-quality Harmony XB4 Series Push Button Switch, designed for industrial automation and control panel applications. It features a spring return operation that allows momentary activation and instant reset, eliminating the need for manual resets. The push button is mounted in a panel cutout size of 22 mm and has a single pole double throw (SPDT) contact configuration, making it suitable for versatile switching roles.

This push button switch is built to withstand harsh industrial environments, with an ingress protection rating of IP66, IP67, and IP69K, ensuring resistance to dust, water jets, and even high-pressure cleaning. Its operating temperature range from -40°C to 70°C allows use in extreme climate conditions.

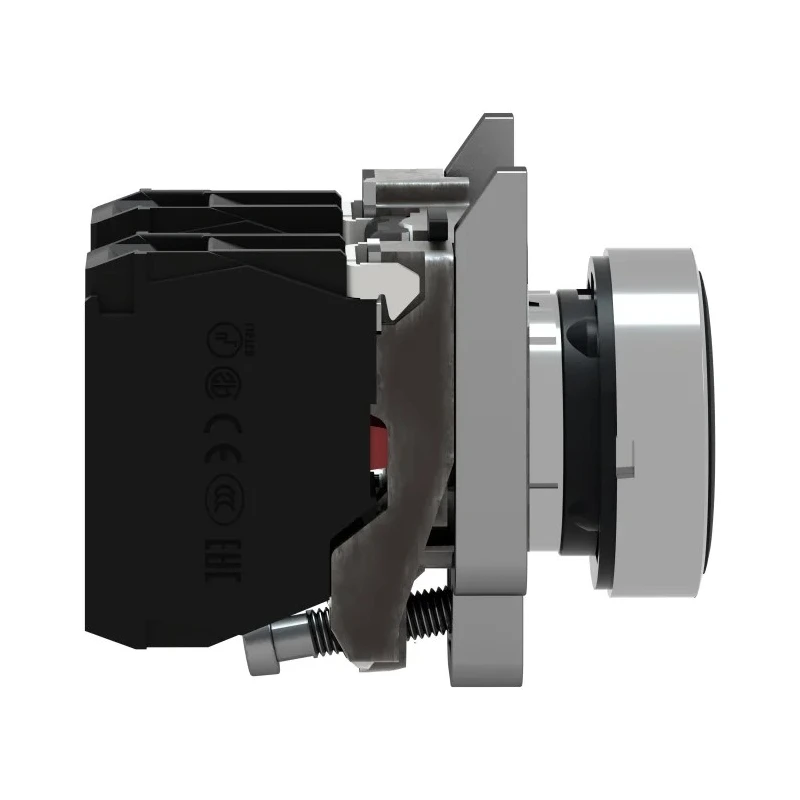

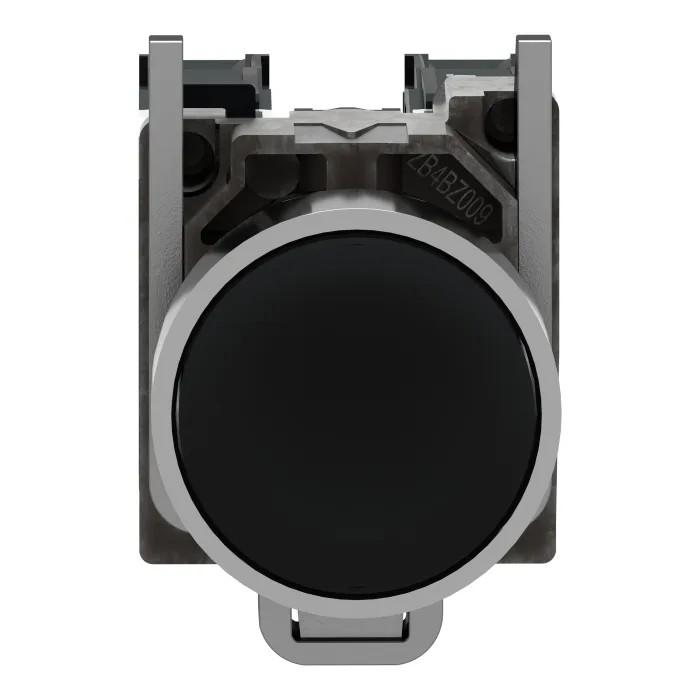

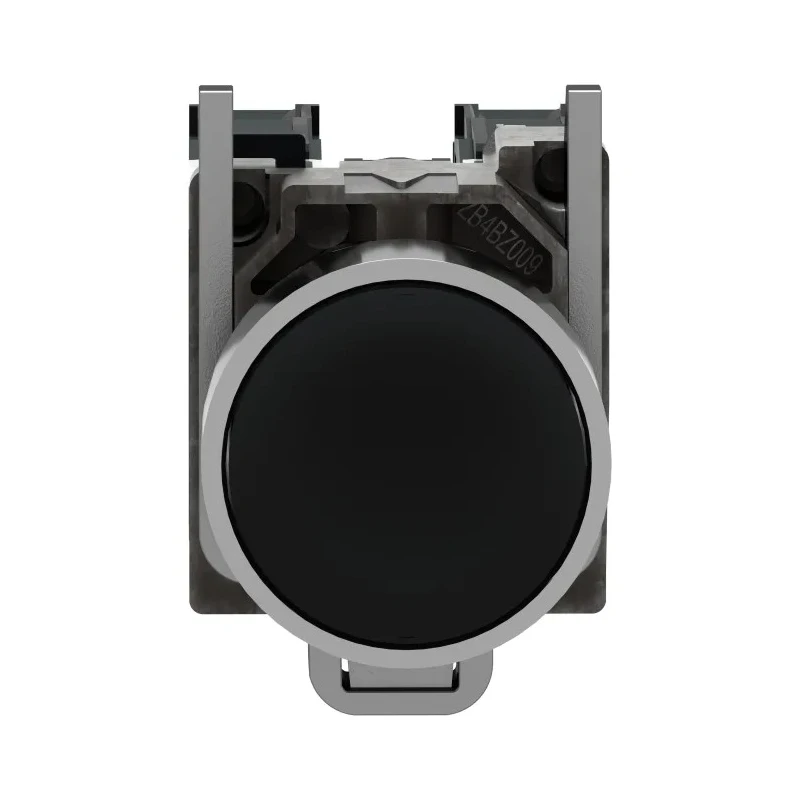

The actuator is black in color with a round style, and illumination is black LED, providing clear operational feedback without unnecessary lighting. The unit weighs a light 0.08 kg, contributing to ease of installation and minimal strain on equipment panels. The chromium-plated metal bezel construction provides excellent corrosion resistance, ensuring long service life.

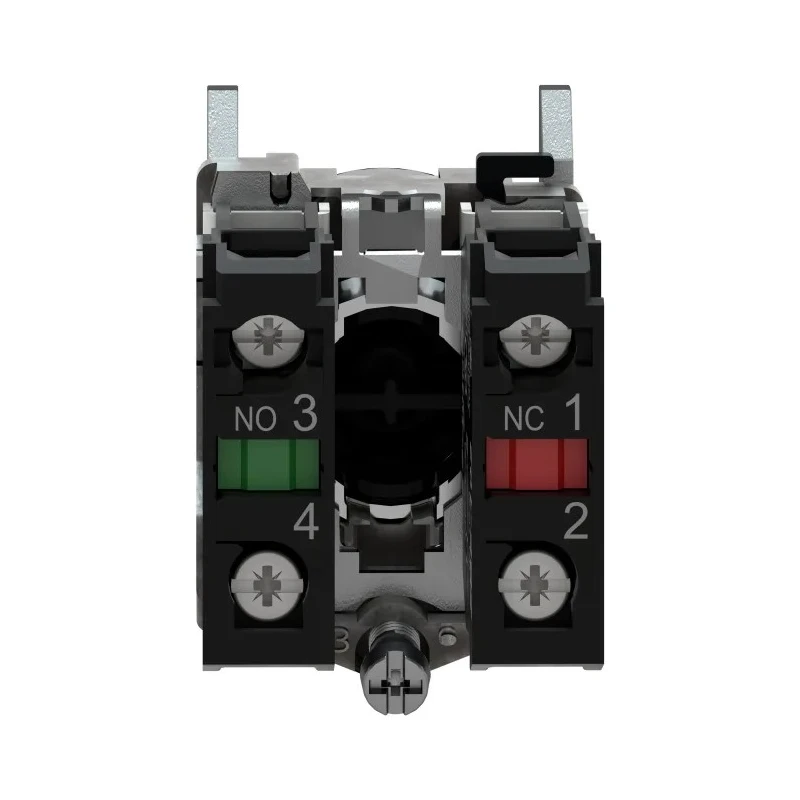

Wiring is facilitated via screw terminals compatible with standard flat-head screwdrivers, enabling reliable and quick connections. The switch contact is rated for 10 amperes, supported by silver alloy contacts that deliver superior electrical conductivity and durability under load.

This product is also an environmentally conscious choice, free from substances of very high concern (SVHC), mercury, and toxic heavy metals. It is repairable by the end user, supporting sustainable maintenance and reducing waste.

Compliance with multiple standards including CSA C22.2 No. 14, EN/IEC 60947 series, JIS, and UL 508 ensures this push button switch meets rigorous industrial safety and quality requirements.

Commonly applied in industrial automation, process control, and production line machinery, the Schneider Electric Harmony XB4BA25 push button switch provides reliable and efficient control operations for various industrial sectors.

Explore the full range of industrial Push Button Switches and components at EnvMart to find solutions that fit your automation and electrical panel needs. Compact size with panel cutout of 22 mm diameter for easy installation.

Black actuator color and black LED illumination with round actuator style. IP66, IP67, and IP69K ratings provide robust protection against dust and water ingress. Operates reliably between temperatures of -40°C to 70°C for industrial environments.

Silver alloy contacts support a switch contact current rating of 10A for durability. Constructed with a chromium-plated metal bezel for enhanced corrosion resistance and longevity. Screw terminal type ensures quick and secure wiring connections.

Repairable by the end user, supporting sustainable maintenance practices. Complies with international standards including CSA, EN/IEC, JIS, and UL 508 for safety and quality assurance. Manufactured in France reflecting high-quality European engineering standards.
