| Country of Origin | China |
|---|---|
| Diameter | 2.72mm |
| Brand | DiodesZetex |
| Length | 5.21mm |
| Model | 1N5818-T |
| Mount Type | Through Hole |
| Case Material | Molded Plastic. UL Flammability Classification Rating 94V-0 |
| Series | 1N5818 |
| Maximum Operating Temperature | 125°C |
| Case | DO-41 |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Band |
| Marking | Type Number and Date Code |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 875mV |
| Moisture Sensitivity | Level 1 per J-STD-020C |

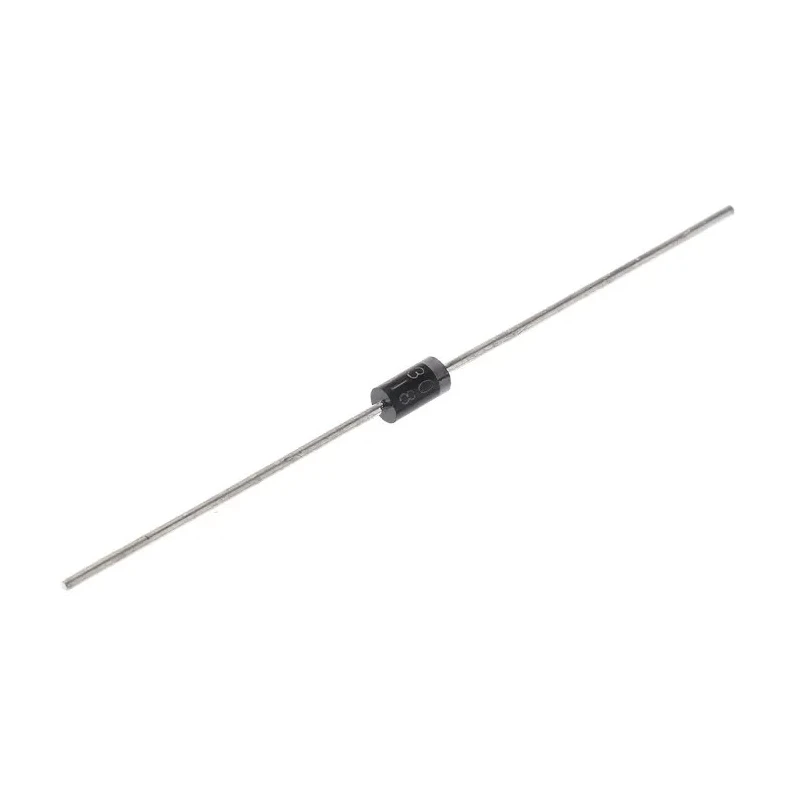

DiodesZetex 1N5818-T Schottky Diode is a high-performance single diode featuring a compact DO-41 molded plastic package. It supports a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 30 V, making it ideal for low voltage and high frequency operations.
The diode's typical applications include voltage clamping, low voltage inverters, free wheeling diodes, and polarity protection circuits, particularly in automotive and industrial settings.
Featuring a low forward voltage drop of 875 mV and a high surge current capacity of 25 A, the device ensures high efficiency and robust performance. Its molded plastic case with UL 94V-0 flammability classification improves safety and reliability.
The product is designed with a cathode band polarity marking and meets the automotive standard AEC-Q101, suitable for demanding environments. The operating temperature range from -65°C to 125°C further ensures broad usability.
Moisture sensitivity is level 1 per J-STD-020C, minimizing handling risks. The compact size of 5.21 mm length and 2.72 mm diameter makes it suitable for densely packed electronic circuit boards.
Through hole mount type suitable for robust circuit designs. Low forward voltage drop of 875 mV ensures efficient power usage. High surge current capability with a 25 A peak non-repetitive forward surge current. Wide operating temperature range from -65°C to 125°C suitable for automotive and industrial applications.
Molded plastic case material with UL 94V-0 flammability rating for high reliability. Cathode band polarity marking for easy identification and installation. Compliance with automotive standard AEC-Q101 for quality assurance.
Moisture sensitivity level 1 according to J-STD-020C ensuring durability during storage and handling.
This diode is an excellent choice for industrial, automotive, and electronic manufacturing applications requiring high efficiency and reliability. Explore the full range of semiconductor components in the Electronics & Electricals category on EnvMart.
