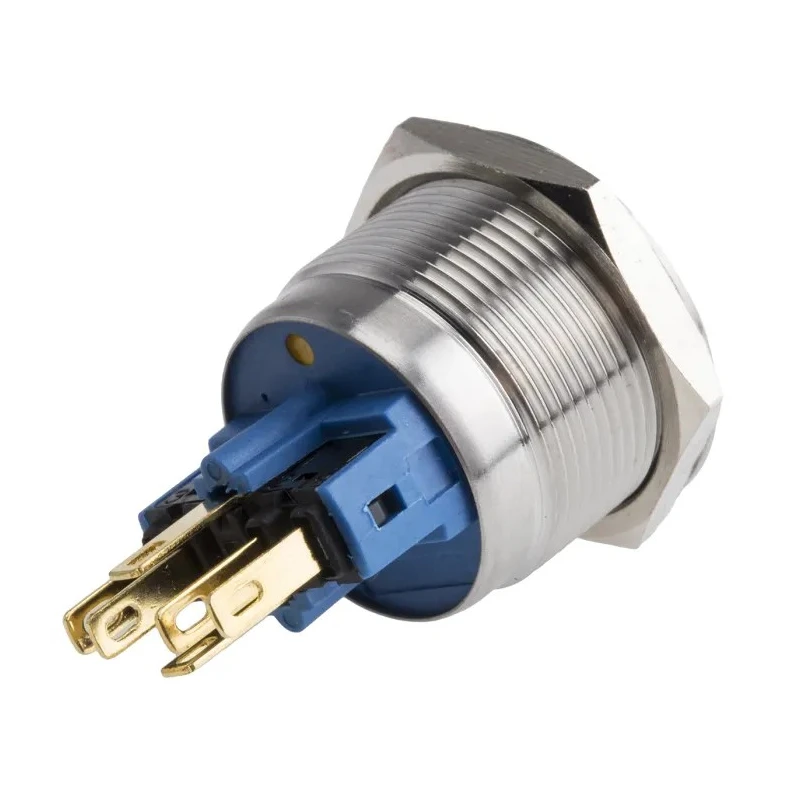

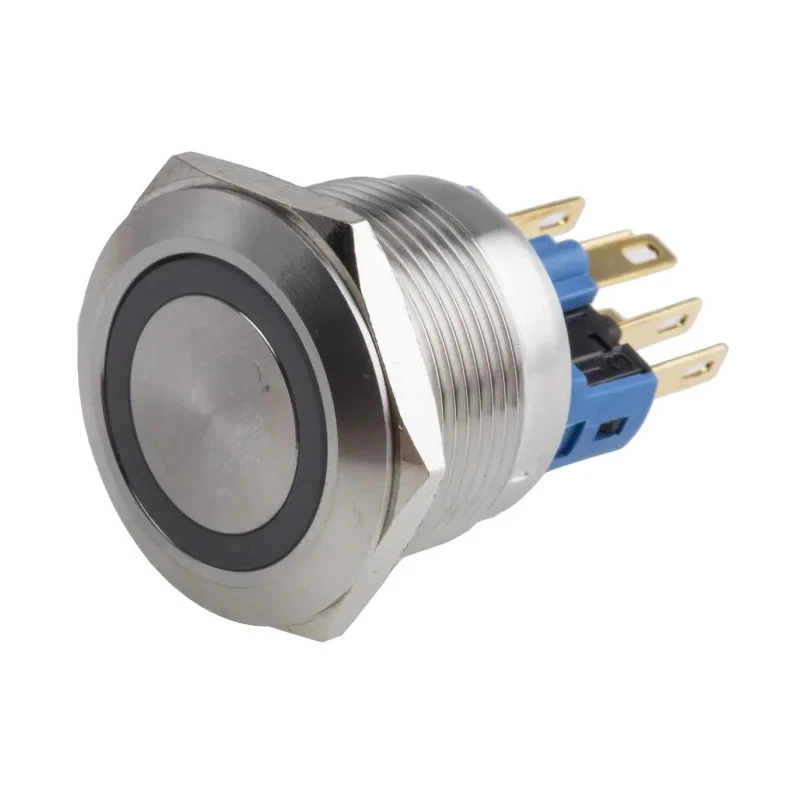

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 22 mm Cutout, SPDT, Yellow LED, IP65 IP67, 250V AC 5A 811-8569
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 811-8569 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a yellow LED for illumination, enhancing visibility.
- Constructed with stainless steel for durability and anti-vandal resistance.
- Rated for 250V AC voltage and 5A contact current.
- Provides front panel protection to IP65 and IP67 standards for water and dust resistance.
- Operates reliably at temperatures down to -20°C.
- Includes quick connect terminals for easy installation.
- Designed for applications demanding robust momentary switch operation.
Product Description
RS PRO 811-8569 is an illuminated momentary push button switch engineered for robust panel mounting applications. It features a 22 mm panel cutout and SPDT switch configuration suitable for controlling electrical circuits requiring a single-pole double-throw contact.
The switch actuator is flat and silver in color, illuminated by a yellow LED to ensure clear operational status indication. The stainless steel construction combined with copper alloy silver-plated contacts and brass silver-plated terminals deliver exceptional durability and conductivity.
This switch offers excellent resistance against vandalism and environmental ingress, with front panel protection rated to IP65 and IP67, making it ideal for use in outdoor or harsh industrial environments such as public kiosks, dashboards, and open panels.
Rated for 250V AC and 5A contact current, the switch supports demanding electrical loads with reliable momentary action. Operating temperatures range down to -20°C without performance degradation. Quick connect terminals facilitate straightforward wiring and maintenance.
Features a yellow LED for visual status indication. Anti-vandal stainless steel body construction. Front panel IP65 and IP67 protection ensuring water and dust ingress resistance. Robust momentary operation with a 4N maximum operating force.
Long operating life rated at 50,000 cycles. Quick connect terminals simplify installation. Suitable for industrial, automation, electrical panels, and control systems.
RS PRO branded products are rigorously tested to meet industry standards and provide reliable performance in professional industrial applications. This product is manufactured in Taiwan, Province of China, and comes as new condition with RoHS compliance.
Explore more quality Push Button Switches in the Electronics & Electricals category on EnvMart for your diverse industrial and automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch is rated for 250V AC and has a contact current rating of 5A.
This model requires a panel cutout size of 22 mm for proper installation.
It features a single-pole double-throw (SPDT) switch configuration.
The minimum operating temperature for this switch is -20°C.
It includes quick connect terminals for easy installation and maintenance.
The switch has an IP rating of IP65 and IP67, providing protection against water and dust ingress.
The switch is constructed with stainless steel for durability and features copper alloy silver-plated contacts and brass silver-plated terminals.
The actuator is flat and silver in color, illuminated by a yellow LED for visibility.
The switch has an operational life rated at 50,000 cycles.
It is suitable for industrial, automation, electrical panels, and control systems, particularly in outdoor or harsh environments.
This product is RoHS compliant, ensuring it meets specific environmental standards.
This push button switch is manufactured in Taiwan, Province of China.
