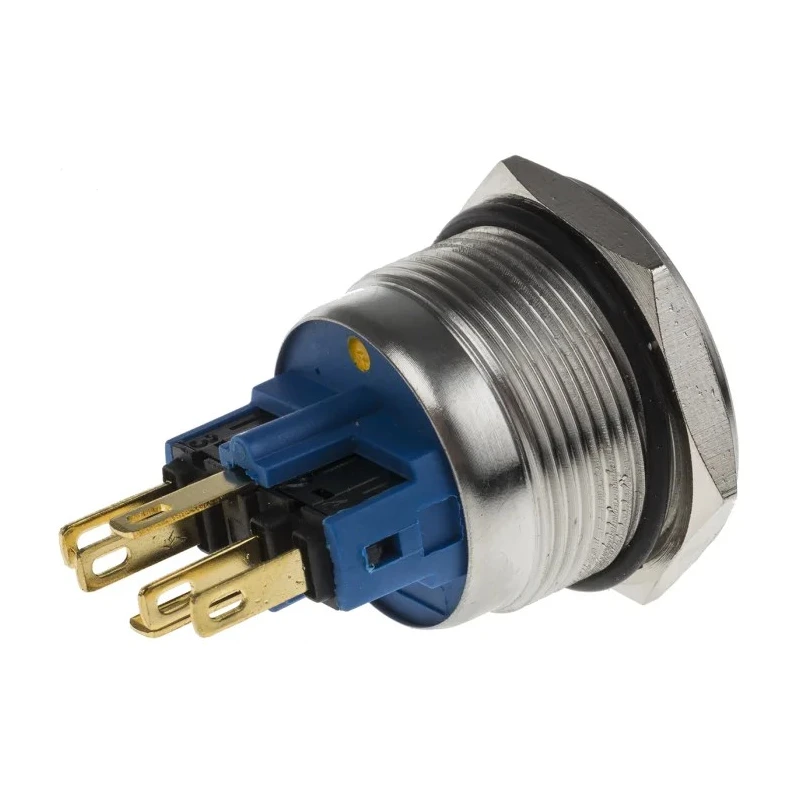

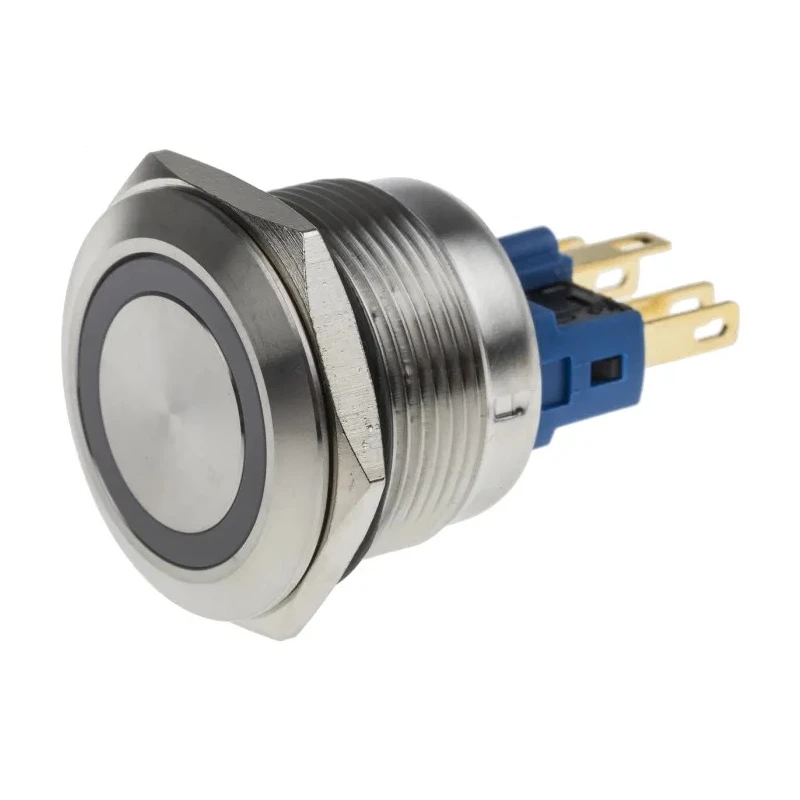

RS PRO Illuminated Momentary Push Button Switch Panel Mount 22 mm Cutout SPDT Yellow LED IP65 IP67 250 V AC 811-8562

RS PRO 811-8562 is a professional-grade Illuminated Momentary Push Button Switch engineered for panel mount applications requiring a 22 mm cutout. This switch employs a Single Pole Double Throw (SPDT) contact configuration with a silver flat actuator and is illuminated by a yellow LED for clear operational indication.

The device is built with high-quality stainless steel and copper alloy contacts plated with silver to ensure longevity and resistance to wear. It provides front panel protection rated to both IP65 and IP67 standards, making it highly resistant to ingress of dust and water, suitable for demanding industrial and automation environments.

Operating reliably at contact voltages of 250 V AC and DC, and supporting a maximum current rating of 5 amperes, this push button switch meets stringent electrical and mechanical standards including RoHS compliance. It is designed to withstand an operating life of 50,000 actuations with a maximum operating force of 4 Newtons, ensuring durability in high-use scenarios.

Key applications include public kiosks, outdoor panels, open dashboards, and other settings where above-panel resistance to vandalism, dust, and moisture is critical. The quick connect terminal type allows for efficient and secure installation on panel mounts.

The device is rated for operation in temperatures down to -20°C, making it suitable for a range of industrial, commercial, and electrical control environments. The switch features a silver-colored flat actuator for reliable operation.

It offers IP65 and IP67 front panel protection for dust and water resistance. Equipped with a yellow LED for illuminated status indication. Designed for a 22 mm cutout panel mount installation. Rated for 250 V AC and DC voltage with 5A contact current capacity.

Constructed with stainless steel and silver-plated copper alloy contacts. Complies with RoHS environmental standards. Provides a long operational life of 50,000 switching cycles. Operating temperature down to -20°C.

This RS PRO push button switch is ideal for use in industrial automation, electrical panels, manufacturing controls, and other commercial applications requiring robust, high-quality Push Button Switches. Browse the wide RS PRO range in the relevant EnvMart categories for complementary products and components.
