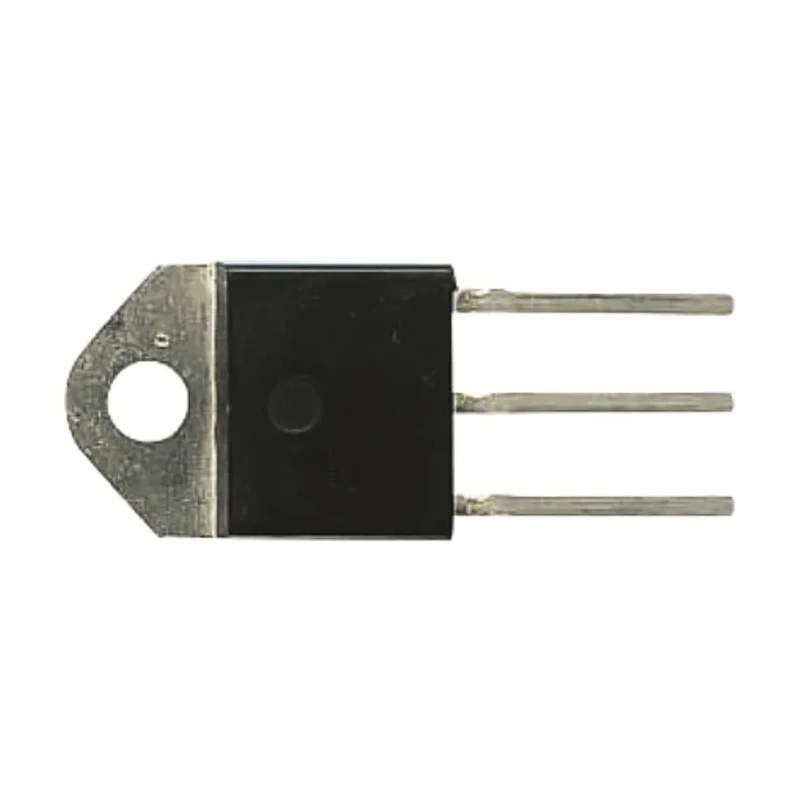

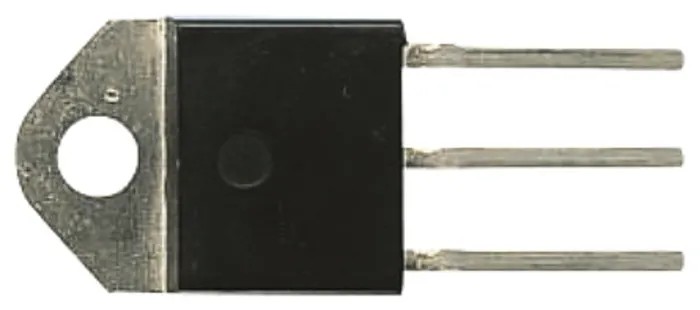

STMicroelectronics Silicon Controlled Rectifier 1200 V 50 A 610 A Surge Current 80 mA Gate Trigger Current TOP3 BTW69-600RG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.1mm |
| Length | 40mm |
| Model | BTW69-600RG |
| Width | 21.1mm |
| Mount Type | Through Hole |
| Series | BTW67 and BTW69 |
| Maximum Operating Temperature | 125°C |
| Package Type | TOP3 |
| Standards/Approvals | UL (File ref: E81734) |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 50A |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 610A |
| Maximum Gate Trigger Current Igt | 80mA |
| Maximum Holding Current Ih | 150mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.9V |
| Standards/ApprovalsUL (File ref | E81734) |
| UL (File ref | E81734) |
Key Features
- Rated average on-state current of 50 A for high-load handling capacity.
- Repetitive peak reverse voltage up to 1200 V for robust operation.
- Surge current rating of 610 A ensures short-term overload tolerance.
- Maximum gate trigger current of 80 mA facilitates precise control.
- Compact TOP3 package with 3-pin configuration for through-hole mounting.
- Maximum holding current of 150 mA for reliable conduction control.
- Peak on-state voltage of 1.9 V to maintain efficient switching.
- Operates up to a maximum temperature of 125°C for demanding environments.
Product Description
STMicroelectronics BTW69-600RG Silicon Controlled Rectifier (SCR) is a highly reliable semiconductor device engineered for power switching and control applications. Featuring a 1200 V repetitive peak reverse voltage and an average on-state current rating of 50 A, this SCR offers robust performance in industrial and electronic circuits requiring efficient power regulation.
The device comes in a TOP3 3-pin through-hole package, allowing for straightforward mounting in various assemblies. Its surge current rating of 610 A ensures that it can withstand transient overloads without performance degradation. The maximum gate trigger current of 80 mA and maximum gate trigger voltage of 1.3 V enable precise and responsive gating for optimal switching operation.
Designed to operate reliably in elevated temperatures up to 125°C, the BTW69-600RG SCR maintains consistent conduction with a maximum holding current of 150 mA and peak on-state voltage of 1.9 V. The physical dimensions of 40 mm length, 21.1 mm width, and 15.1 mm height make it compact yet robust for multiple industrial applications.
This SCR is UL approved (File ref: E81734), affirming its quality and safety for use in power electronics. Commonly used across industrial, manufacturing, and power supply circuits, it enables efficient switching and control of high current and voltage loads.
Key features include:. High voltage and current ratings suitable for strenuous electrical applications. Durable TOP3 package that supports through-hole mounting for stable mechanical integration. Compliance with safety standards ensuring reliability and longevity.
Optimized electrical characteristics to support sensitive gate triggering and holding requirements.
EnvMart offers the STMicroelectronics BTW69-600RG, a trusted component ideal for engineers and professionals working in electronics, power management, and industrial automation sectors. Browse our wide range of semiconductor devices for your project's performance and reliability needs.
Explore more products in our Thyristors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the STMicroelectronics BTW69-600RG is 125°C, allowing it to function effectively in demanding environments.
This model has a rated average on-state current of 50 A, suitable for high-load handling applications.
The surge current rating of the BTW69-600RG is 610 A, which ensures it can withstand transient overloads without performance degradation.
The repetitive peak reverse voltage of this SCR is 1200 V, providing robust operation in high voltage applications.
It comes in a TOP3 package that supports through-hole mounting, making installation straightforward.
The maximum gate trigger current for the BTW69-600RG is 80 mA, facilitating precise control during operation.
The dimensions of the STMicroelectronics BTW69-600RG are 40 mm in length, 21.1 mm in width, and 15.1 mm in height.
The peak on-state voltage of this model is 1.9 V, which helps maintain efficient switching performance.
The maximum holding current for the BTW69-600RG is 150 mA, ensuring reliable conduction control.
Yes, the STMicroelectronics BTW69-600RG is UL approved with file reference E81734, affirming its quality and safety for use in power electronics.
This SCR belongs to the BTW67 and BTW69 series, which are designed for power switching and control applications.
The BTW69-600RG is commonly used in industrial, manufacturing, and power supply circuits for efficient switching and control of high current and voltage loads.
